| Place of Origin: | China |
| Brand Name: | BRANDO |
| Certification: | CE, ISO |
| Model Number: | SCG353A043 |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plastic Bag, box, carton, pallet |
| Delivery Time: | Negotiation |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 800PCS PER DAY |
| Diaphragm: | TPE White Color | Size: | 3/4" |
|---|---|---|---|
| Ref Code: | SCG353A043 | Voltage: | DC24V AC110V AC220V |
| Application: | For Dust Collector Cleaning System | Weight: | 0.70 Kgs |
| Highlight: | pulse jet valves,solenoid pulse valve |
||

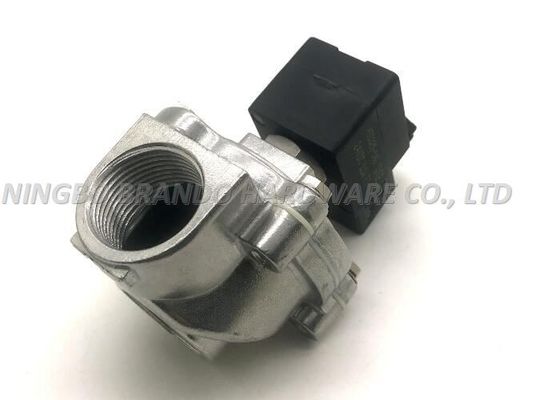

220v AC Integral Pilot Pulse Jet Baghouse Pulse Valve SCG353A043 Made of Aluminium Threaded Body
The principle of pulse valve SCG353A043 working:
Diaphragm pulse valves are the most important components of a baghouse pulse jet cleaning system.
On a pulse jet baghouse pulse valves (also called diaphragm valves) control the release of air pulses during the cleaning cycle. When the baghouse control board or timer board initiates a cleaning cycle it sends an electrical signal to the solenoids, when then activate the pulse valve.
Inside the pulse valve, a rubber diaphragm opens and closes to release the compressed air stored in the air header tank. The air then passes through the valve into the blow pipes above the filters and then is directed down into the filters to clean them.
Illustration of Pulse Valve SCG353A043 working:
Specification of Pulse Valve SCG353A043:
| SCG353A043 Operation Pressure | 0.3~0.8Mpa |
| SCG353A043 Ambient temperature | -5~55℃ |
| SCG353A043 Relative humidity | <85% |
| SCG353A043 Fluid | Clear Air |
| SCG353A043 Voltage | AC110V AC220V DC24V |
| SCG353A043 Electric current | 0.46A, 0.23A, 0.8A +-10% |
| SCG353A043 Diaphragm working life | More than 1 million times |
| SCG353A043 Diameter | 20mm |
| SCG353A043 Threaded Pipe Size | G3/4" |
Dimensions of Baghouse Pulse Valve SCG353A043:
Construction of Pulse Valve SCG353A043:
| SCG353A043 Body Material | Aluminium |
| SCG353A043 Core Tube Material | SS304 |
| SCG353A043 Core | 430FR |
| SCG353A043 Coil | Copper |
| SCG353A043 Sealing and Disc | NBR |
| SCG353A043 Diaphragm | TPE or FPM |
| SCG353A043 Shading Ring | Copper |
| SCG353A043 Spring | SS304 |
| SCG353A043 Connector | DIN43650A |
| SCG353A043 Electrical Safety | IEC335 |
Welcome your any enquiry, pls contact us, we will response at once.
