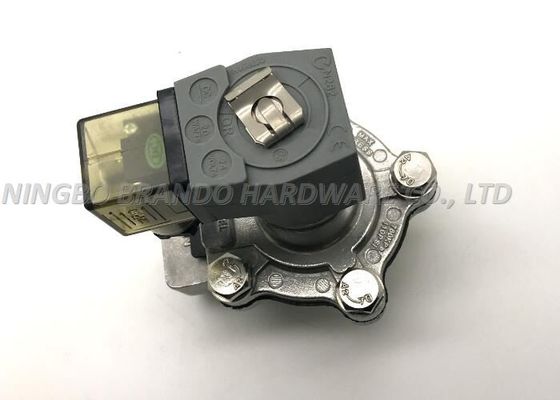

CA20T Threaded Port Pneumatic Pulse Valve 3/4 Inch Single Nitrile / Viton Diaphragm

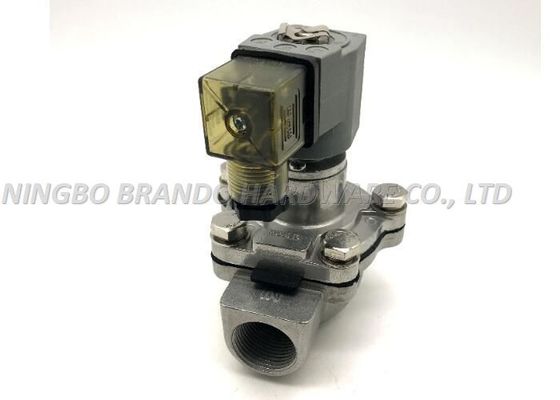

CA20T 3/4 Inch Single Stage Single Nitrile Or Viton Diaphragm Goyen Type Threaded Port Pulse Jet Dust Collector Valve

CA20T Pulse Valve designed for dust collector cleaning system, with high performance of quick acting of opening and closing, highly welcome your enquiry, we can supply all range of port size and voltage AC and Dc.

1. Construction of CA20T
Body: Aluminium (diecast)
Ferrule: 304 SS
Armature: 430FR SS
Seals: Nitrile or Viton (reinforced)
Spring: 304 SS
Screws: 302 SS
Diaphragm Seat: PA-6 (standard), Viton coated mild steel or High Density PE Refer to Q Series Solenoid product data sheet for solenoid construction details.

2. Operation of CA20T Pulse Valve
Recommended on time range: 50-500ms
Recommended time between pulses: 1 minute or greater

3. Maintenance
Before conducting any maintenance activity on the system ensure that components are fully isolated from pressure and power supplies. Pressure and power should not be reapplied until the valve has been fully assembled. Diaphragm and pilot inspection should be conducted annually.

4. Approvals
Integrally piloted valves meet the requirements of:
1. C-Tick
2. EMC (89/336/CE)
3. ATEX II 3 G & D (94/9/CE) (when fitted with QR or QF type solenoids)

5. Installation
1. Prepare supply and blowtube pipes to suit valve specification. Avoid installing valves underneath the tank.
2. Ensure tank and pipes are free from dirt, rust or other particulate.
3. Ensure supply air is clean and dry.
4, Mount valves to inlet pipes and blowtube to valves, ensuring no excess thread sealant can enter the valve itself.
5. Make electrical connections to solenoid or connect RCA pilot port to pilot valve (RCA valves only).
6. Apply moderate pressure to system and check for installation leaks.
7. Fully pressurise system.
8. Test fire and listen for proper actuation and crisp pulse noise.

6. Goyen type diaphragm

Model Nitrile Viton Low Temperature
-60℃ Includes
CA/RCA20T K2000 K2007 NA Diaphragm kits include main and secondary diaphragm (where required) and all springs. These kits are for discontinued valves
CA/RCA25T K2501 K2503 K2504
CA/RCA35T K3500 K3501 K3502
CA/RCA40T K4000 K4007 NA
CA/RCA45T K4502 K4503 K4522
CA/RCA50/62T K5004 K5000 NA
CA/RCA76T K7600 K7601 NA
Pilot repair kit K0380 NA o-ring, armature assembly, armature spring, ferrule
Pilot repair kit K0580

7. Delivery
1. If the products we have in store, we will send it out ASAP after payment.
2. Also we can send by your delivery acount if you want.
3. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
4. We have a variety of ways to send goods, usually DHL, Fedex, TNL will be normal ways. If you require use of a courier, we can do it.

8. After-sale Service
We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.

More pulse valve for your select:

Pulse Valve CA20T Dimensions:
