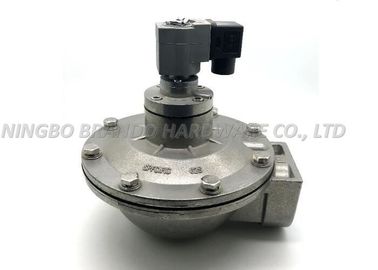

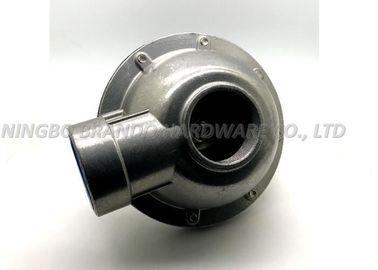

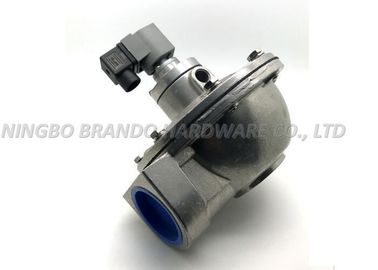

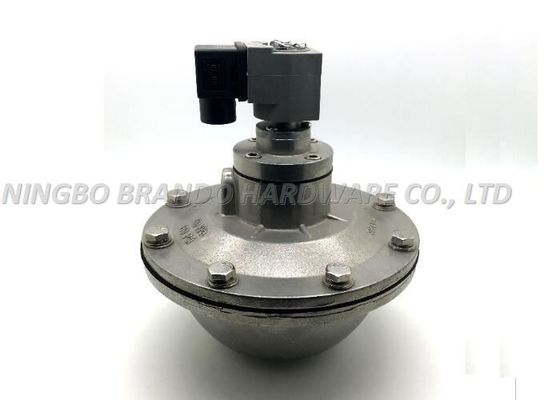

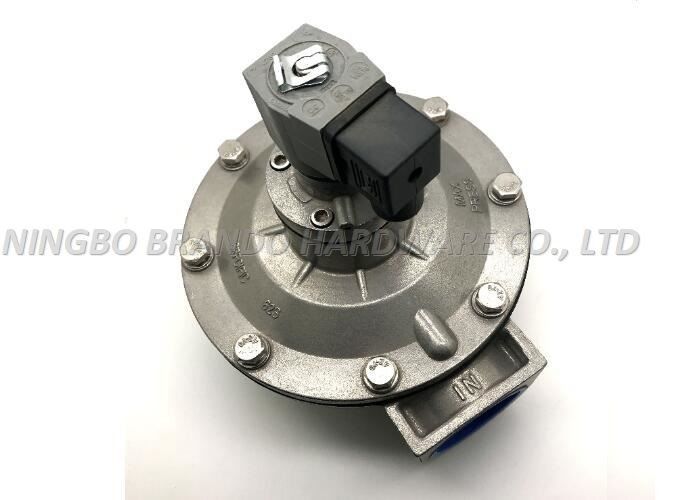

Right Angle Aluminium Pneumatic Pulse Valve CA50T QR DIN43650A SS304 Ferrule

QR DIN 43650A Connector Goyen Type Right Angle Shape Oulet At 90 to Inlet Aluminium Body CA62T 2 1/2 Inch Pulse Valve

Description:
CA Series solenoid pulse jet valve, type: CA20T, CA25T, CA45T, CA50T, CA62T, CA76T.
We have two types right angle type & in line type, with different connection form.
It is 2-way dust collector valve used for pulsing large volumes of air into filter bags for particulate removal.
These series are high-flow fast-opening 2-way valves, pilot valves, pilot valve enclosures and bulkhead fittings that have been specially designed for use in dust collector systems. It can work at least 1 million times without any problem.

Specifications of 2 1/2 Inch Pneumatic Pulse Jet Valve CA62T

1)Type: Right angle (vertical) & in line solenoid pulse valve.
2)Bore: 20, 25, 35, 40, 50, 62, 76, 100mm
3)Port Size; 3/4"~ 3"
4)Connection Form: Normal screw; A: Tubing+thread; S: Double diaphragm; DD: Pipe connecting; J: Threaded(economical type)
5)Working Pressure: 0.3~0.8MPa
6)Ambient Temperature: -5~55° C
7)Humidity < 85%
8)Applied Medium: Pure air
9)Diaphragm life: Above 1 million times
10)Voltage: DC24V, AC110V, AC220V
11)Reference type: CA20T, CA25T, CA45T, CA50T, CA62T, CA76T

Dimensions of Pulse Jet Valve CA62T:

Goyen Type Pulse Jet Valve 2 1/2" CA62T:
