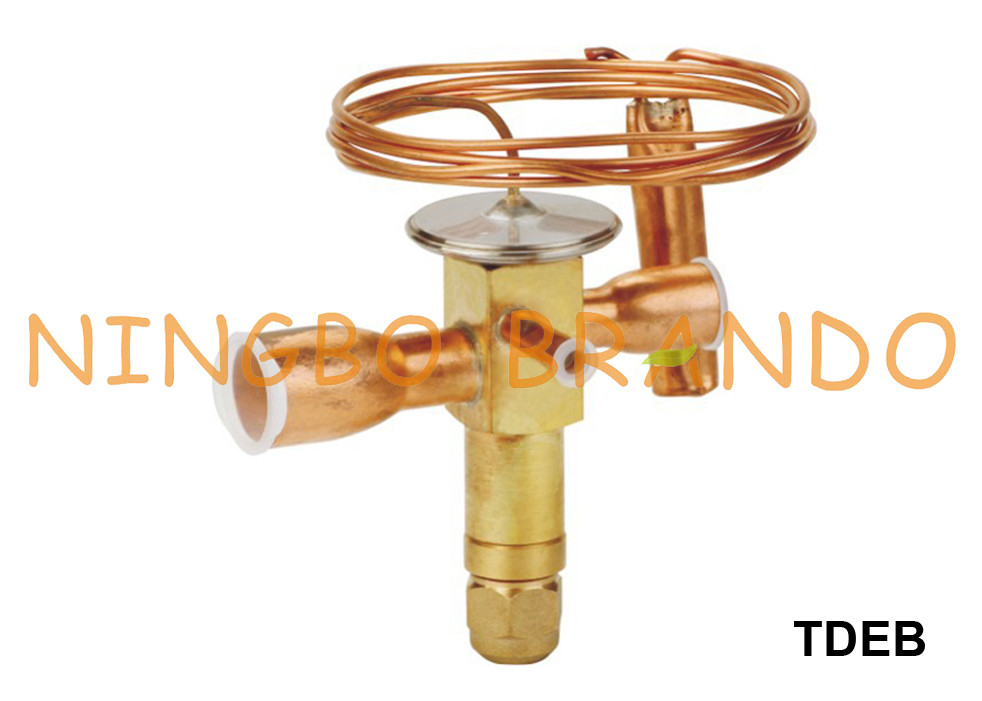

TDEB Danfoss Type TXV Thermostatic Expansion Valve TDEBX TDEBZ

Product Details:

Place of Origin:	China, Ningbo
Brand Name:	BRANDO
Certification:	CE, ISO
Model Number:	TDEBX, TDEBZ

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Box, Carton, Pallet
Delivery Time:	4 to 7 working days
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	20000 sets per month

Contact Now

Detailed Product Description

Product Name:	Thermostatic Expansion Valve	Inlet Size:	3/8'', 1/2'', 5/8'', 7/8'', 1 1/8''
Outlet Size:	5/8'', 7/8'', 1 1/8'', 1 3/8''	Equalization Size:	1/4''
Connection:	Solder X Solder	Refrigerant:	R22, R407C, R134a
Capillary Tube Length:	1.5m, 3m	Max Bulb Temperature:	150℃ (302°F)
Max Valve Body Temperature:	120℃ (250°F)	Valve Body Temperature Short-term:	150℃ (300°F)
Max Working Pressure:	28 Bar (405 Psig)	Max Test Pressure:	32 Bar (465 Psig)
Highlight:	Thermostatic Expansion Valve Danfoss , Danfoss Expansion Valve TDEBX , Danfoss TDEB

TDEB Danfoss Type TXV Thermostatic Expansion Valve TDEBX TDEBZ

A thermostatic expansion valve (TXV) is a refrigeration and air conditioning throttling device that controls the amount of refrigerant liquid injected into a system’s evaporator—based on the evaporator outlet temperature and pressure—called the superheat. The different phases and pressures the refrigerant goes through as it is pumped through the system, moving through the evaporator, the compressor, the condenser, and the throttling device which injects liquid refrigerant into the evaporator before it moves into the compressor.

Technical Data of TDE/TDEB Thermal Expansion Valve:

Max bulb temperature	150℃ (302°F)
Max valve body temperature	120℃ (250°F)
Valve body temperature short-term	150℃ (300°F)
Max working pressure MWP	28 bar (405 psig)
Max test pressure	32 bar (465 psig)

MOP Valves of TDE/TDEB Thermal Expansion Valve:

MOP point for evaporating temperature te and evaporating pressure Pe

Refrigerant	Range K -25 to +10 ℃	Range AC -10 to +15 ℃
Refrigerant	te= +15℃ / +60°F	te= +20℃ / +68°F
R22	Pe= 100psi / 6.9bar	Pe= 120psi / 8.5bar
R407C	Pe=95psi / 6.6bar	Pe= 115psi / 8bar
R134a	Pe= 55psi / 5bar

Ordering Code of TDE/TDEB Thermal Expansion Valve:

Range K = - 25 to + 10 ℃ with MOP 100 psi / 8 bar
Range AC = - 10 to + 15 ℃ with MOP 120 psi / 9 bar
Range N = - 40 to + 10 ℃

Design	Model		Connection (Inlet x Outlet) Solder × Solder		Equalization Connection	Capillary Tube Length
Design	R22	R407C	inch	mm	Equalization Connection	Capillary Tube Length
Single Port	TDEX3	TDEZ3	3/8'' X 5/8''	10X16	1/4'' (6mm)	1.5m
	TDEX3	TDEZ3	1/2'' X 5/8''	12X16
	TDEX4	TDEZ4	1/2'' X 7/8''	12X16
	TDEX6	TDEZ6	1/2'' X 5/8''	12X16
	TDEX6	TDEZ6	1/2'' X 7/8''	12X22
	TDEX6	TDEZ6	5/8'' X 7/8''	16X22
	TDEX7.5	TDEZ7.5	5/8'' X 7/8''	16X22
	TDEX8	TDEZ8	5/8'' X 7/8''	16X22
	TDEX11	TDEZ11	5/8'' X 7/8''	16X22
	TDEX11	TDEZ11	5/8'' X 1 1/8''	16X28
	TDEX12.5	TDEZ12.5	5/8'' X 7/8''	16X22
	TDEX12.5	TDEZ12.5	5/8'' X 1 1/8''	16X28
	TDEX16	TDEZ16	5/8'' X 1 1/8''	16X28
	TDEX16	TDEZ16	7/8'' X 1 1/8''	22X28
	TDEX19	TDEZ19	7/8'' X 1 1/8''	22X28
	TDEX20	TDEZ20	7/8'' X 1 1/8''	22X28		3m
	TDEX26	TDEZ26	7/8'' X 1 3/8''	22X35
	TDEX30	TDEZ30	7/8'' X 1 3/8''	22X35
	TDEX30	TDEZ30	1 1/8'' X 1 3/8''	28X35
	TDEX40	TDEZ40	1 1/8'' X 1 3/8''	28X35
Balanced Port	TDEBX8	TDEBZ8	5/8'' X 7/8''	16X22		1.5m
	TDEBX11	TDEBZ11	5/8'' X 7/8''	16X22
	TDEBX11	TDEBZ11	5/8'' X 1 1/8''	16X28
	TDEBX12.5	TDEBZ12.5	5/8'' X 7/8''	16X22
	TDEBX12.5	TDEBZ12.5	5/8'' X 1 1/8''	16X28
	TDEBX16	TDEBZ16	5/8'' X 1 1/8''	16X28
	TDEBX16	TDEBZ16	7/8'' X 1 1/8''	22X28
	TDEBX19	TDEBZ19	7/8'' X 1 1/8''	22X28
	TDEBX20	TDEBZ20	7/8'' X 1 1/8''	22X28		3m
	TDEBX26	TDEBZ26	7/8'' X 1 3/8''	22X35
	TDEBX30	TDEBZ30	7/8'' X 1 3/8''	22X35
	TDEBX30	TDEBZ30	1 1/8'' X 1 3/8''	28X35
	TDEBX40	TDEBZ40	1 1/8'' X 1 3/8''	28X35

Dimension of TDE/TDEB Thermal Expansion Valve:

TDEB Danfoss Type TXV Thermostatic Expansion Valve TDEBX TDEBZ 0

TDEB Danfoss Type TXV Thermostatic Expansion Valve TDEBX TDEBZ 1

More Refrigeration Parts for you to choose:


Refrigeration Solenoid Valve	Reversing Valve	Refrigeration Ball Valve

Hot Gas Bypass Valve	Crankcase Pressure Regulator	Sight Glass
