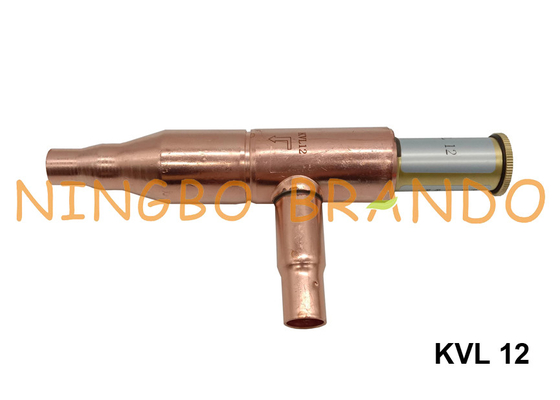

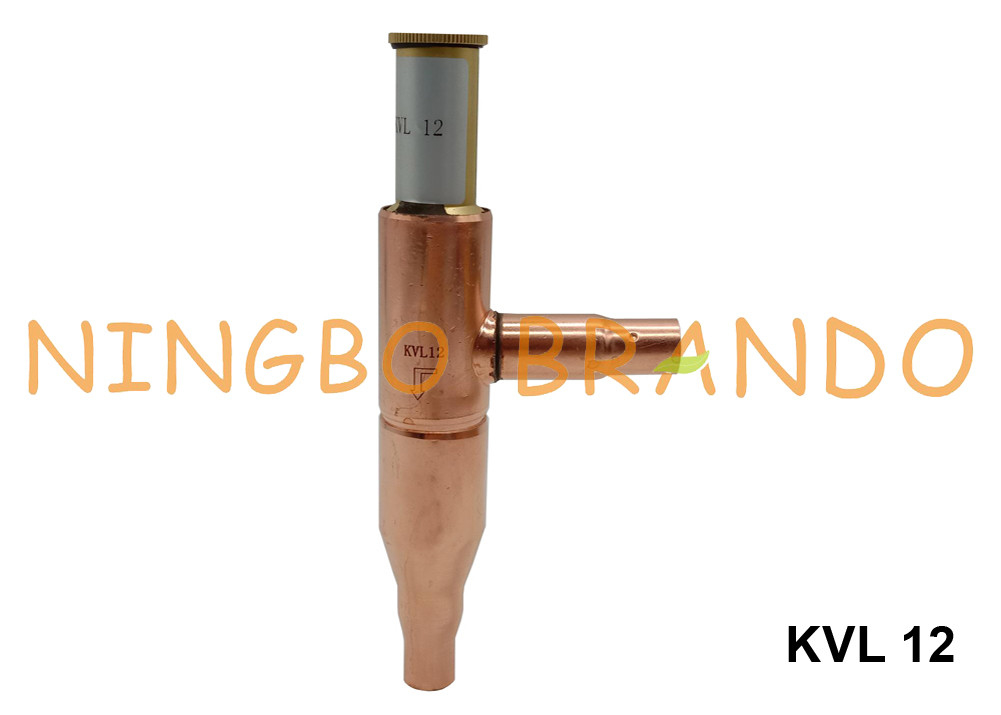

Danfoss Type Crankcase Pressure Regulator KVL 12 KVL 15 KVL 22 KVL 28 KVL 35

Product Details:

Place of Origin:	China, Ningbo
Brand Name:	BRANDO
Certification:	CE, ISO
Model Number:	KVL 12, KVL 15, KVL 22, KVL 28, KVL 35

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs
Price:	Negotiation
Packaging Details:	Box,Carton,Pallet
Delivery Time:	10 working days
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	50000pcs per month

Contact Now

Detailed Product Description

Product Name:	Crankcase Pressure Regulator	Refrigerant:	CFC, HCFC, HFC
Port Size:	1/2'', 5/8'', 7/8'', 1 1/8'', 1 3/8''	Connection:	Solder
Regulation Range:	0 To 6 Bar, Factory Setting = 2 Bar	Max Working Pressure:	14 Bar
Max P-band:	KVL 12-22: 2.0 Bar, KVL 28-35: 1.5 Bar	Medium Temperature Range:	-200 To +150℃
Highlight:	Danfoss Crankcase Pressure Regulator , Crankcase Pressure Regulating Valve , Danfoss KVL

Danfoss Type Crankcase Pressure Regulator KVL 12 KVL 15 KVL 22 KVL 28 KVL 35

A CPR or crankcase pressure regulator is nothing more than a pressure reducing valve. When installed on a compressor suction inlet and properly adjusted, the CPR will prevent the compressor suction pressure from ever rising above the CPR's setting. The CPR will help prevent refrigeration compressor from overloading during startup on refrigeration systems that may experience heavy load conditions such as a freezer after a defrost cycle.

Technical Data of KVL Crankcase Pressure Regulator:

Refrigerants	CFC, HCFC, HFC
Regulation Range	0 to 6 bar, Factory Setting = 2 bar
Max Working Pressure	14 bar
Max Test Pressure	KVL 12-22: 28 bar KVL 28-35: 25.6 bar
Medium Temperature Range	-200 to +150℃
Max P-band	KVL 12-22: 2.0 bar KVL 28-35: 1.5 bar

Ordering Code of KVL Crankcase Pressure Regulator:

Model	Rated Capacity (kW)				Flare	Code no	Solder	Code no
Model	R22	R134a	R404A/R507	R407C	Flare	Code no	Solder	Code no
KVL 12	7.1	5.3	6.3	6.5	1/2''	034L0041	1/2''	034L0043
KVL 15	7.1	5.3	6.3	6.5	5/8''	034L0042	5/8''	034L0049
KVL 22	7.1	5.3	6.3	6.5			7/8''	034L0045
KVL 28	17.8	13.2	15.9	16.4			1 1/8''	034L0046
KVL 35	17.8	13.2	15.9	16.4			1 3/8''	034L0052

Dimension of KVL Crankcase Pressure Regulator:

Model	Connection		H1	H2	B1	C Solder	φ D
Model	Flare	Solder	H1	H2	B1	C Solder	φ D
KVL 12	1/2''	1/2''	7.047''	3.898''	2.520''	0.375''	1.181''
KVL 15	5/8''	5/8''	7.047''	3.898''	2.520''	0.5''	1.181''
KVL 22		7/8''	7.047''	3.898''	2.520''	0.625''	1.181''
KVL 28		1 1/8''	10.197''	5.945''	4.134''	0.875''	1.693''
KVL 35		1 3/8''	10.197''	5.945''	4.134''	1''	1.693''
