| Place of Origin: | China |
| Brand Name: | BRANDO |
| Certification: | ISO, CE |
| Model Number: | AEL 0.5 |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Box, Carton, Pallet |
| Delivery Time: | 4 to 7 working days |
| Payment Terms: | L/C, T/T, Western Union, Paypal |
| Supply Ability: | 100000 pcs per month |
| Product Name: | Automatic Expansion Valve | Ordering Code: | AEL-222200, AEL-222210 |
|---|---|---|---|
| Port Size: | 1/4'' Inlet, 3/8'' Outlet | Orifice Size: | 0.7mm |
| Pipe Connection: | Solder | Thermal Charge: | All CFC, HCFC, HFC, Not For Ammonia |
| Factory Setting: | 22 Bar | Application: | Air Conditioner, Air Dryer, Dehumidifier, Water Cooler, Ice Maker, Etc |
| Highlight: | Honeywell AEL 0.5,Honeywell AEL-222210,Honeywell Automatic Expansion Valve |
||

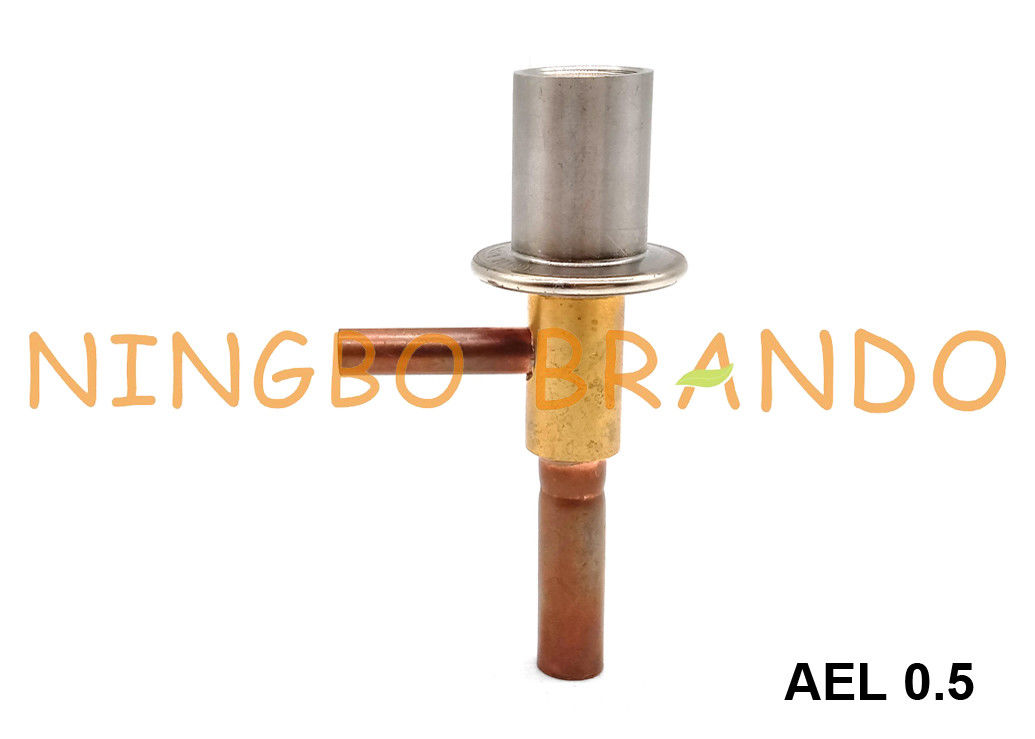

AEL 0.5 AEL-222210 Honeywell Type Automatic Expansion Valve For Air Dryer
Series AEL Automatic Expansion Valves with fixed orifice and adjustable evaporating pressure; Automatic expansion valves (constant pressure valves) series AEL are used in general refrigeration and for original equipment. For plants with single injected evaporators and without a distributor, such as air conditioners, dehumidifiers, air driers, water coolers or ice-making machines.
1. Smallest dimensions
2. High performance
3. Hermetic construction
4. Adjustable evaporating pressure setting
5. Extreme durable due to stainless steel head and stainless steel diaphragm welded using protective gas
6. Maximum pressure PS 25.5 bar
7. Maximum test pressure PF 28 bar
Ordering Code of AEL Series Automatic Expansion Valve:
|
Model
|
Inlet (ODF)
|
Outlet (ODF)
|
Orifice Size
|
Type
|
|
AEL0.5
|
6mm
|
10mm
|
0.7
|
AEL-222200
|
|
1/4''
|
3/8''
|
0.7
|
AEL-222210
|
|
|
AEL 1.0
|
6mm
|
10mm
|
1.0
|
AEL-222201
|
|
1/4''
|
3/8''
|
1.0
|
AEL-222211
|
|
|
AEL 2.0
|
6mm
|
10mm
|
2.0
|
AEL-222202
|
|
1/4''
|
3/8''
|
2.0
|
AEL-222212
|
|
|
AEL 3.0
|
6mm
|
10mm
|
3.0
|
AEL-222203
|
|
1/4''
|
3/8''
|
3.0
|
AEL-222213
|
|
|
AEL 4.0
|
6mm
|
10mm
|
3.5
|
AEL-222204
|
|
1/4''
|
3/8''
|
3.5
|
AEL-222214
|
|
|
AEL 5
|
3/8''
|
5/8''
|
4.75
|
AEL-222285
|
|
AEL 6
|
10mm
|
16mm
|
5
|
AEL-222205
|
|
3/8''
|
5/8''
|
5
|
AEL-222215
|
Dimenison of AEL Series Automatic Expansion Valve:
|
Model
|
Valve Size
|
Connection
|
Dimension
|
||||
|
Inlet (A)
|
Outlet (B)
|
C
|
D
|
E
|
F
|
||
|
AEL
|
0.5
1.0
2.0
3.0
4.0
|
6mm ODF
|
10mm ODF
|
58
|
36
|
106
|
54
|
|
1/4'' ODF
|
3/8'' ODF
|
||||||
|
5.0
6.0
|
10mm ODF
|
16mm ODF
|
64
|
47
|
122
|
69
|
|
|
3/8'' ODF
|
5/8'' ODF
|
||||||
Video of AEL 0.5 Automatic Expansion Valve:
Capacities of AEL Series Automatic Expansion Valve:
|
Type
|
Valve Size
|
Orifice Size
|
Nominal Capacity (kW)
|
|||
|
R22
|
R134a
|
R404A
|
R507A
|
|||
|
AEL
|
0.5
|
0.7
|
1.4
|
1.0
|
0.97
|
0.98
|
|
1.0
|
1.0
|
2.0
|
1.4
|
1.4
|
1.4
|
|
|
2.0
|
2.0
|
4.0
|
2.9
|
2.8
|
2.9
|
|
|
3.0
|
3.0
|
9.3
|
6.6
|
6.5
|
6.6
|
|
|
4.0
|
3.5
|
12.2
|
8.7
|
8.6
|
8.7
|
|
|
5.0
|
4.75
|
4.75
|
15.9
|
15.8
|
15.9
|
|
|
6.0
|
5.0
|
29.1
|
2.0.0
|
20.5
|
20.7
|
|
