| Place of Origin: | CHINA NINGBO |
| Brand Name: | BRANDO |
| Certification: | ISO,GB,CE |
| Model Number: | CA15T |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Inner Box,Carton,Pallet |
| Delivery Time: | 4 to 7 days |
| Payment Terms: | T/T, PayPal, Western Union, L/C |
| Supply Ability: | 10000pcs per month |
| Port Size: | 1/2'' | Valve Series: | T |
|---|---|---|---|
| Valve Structure: | Right Angle, Threaded Port | Diaphragm Material: | NBR, FKM |
| Workinｇ Pressure Range: | 0.35 To 0.85 MPa | Coil Voltage: | 24VDC, 110VAC, 220VAC |
| Highlight: | Goyen Pulse Valve CA15T,Goyen Pulse Jet Solenoid Valve,Goyen Dust Collector Valve |
||

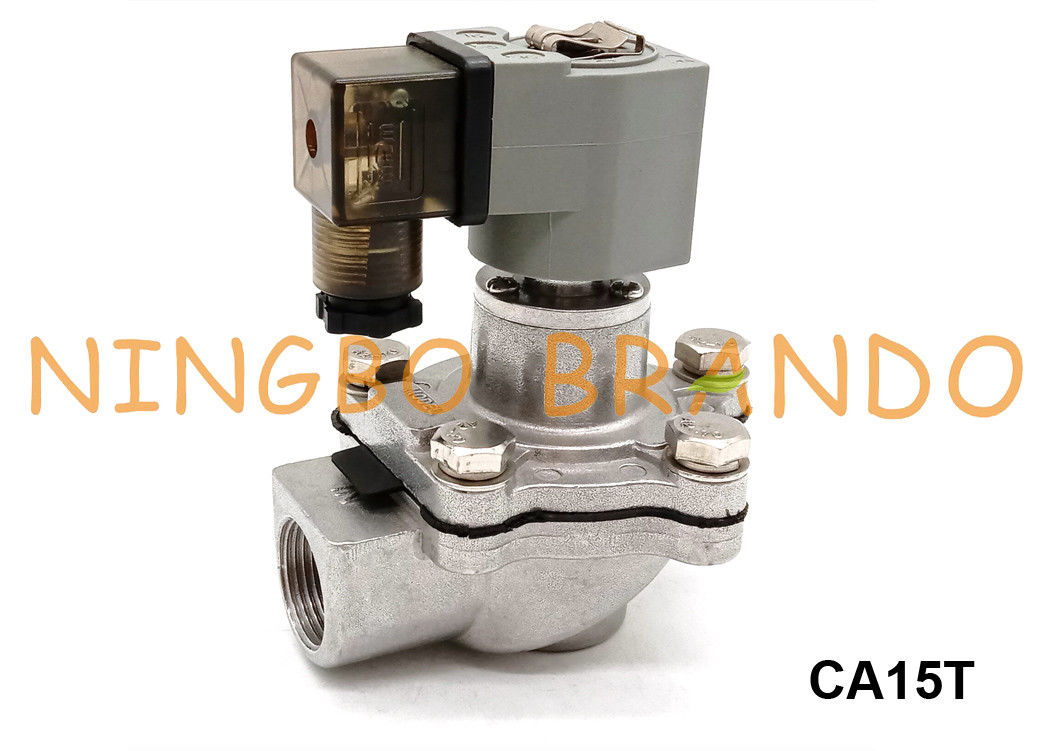

1/2'' CA15T Goyen Type Pulse Jet Solenoid Valve For Dust Collector
T series threaded pulse jet valves are high-performance reverse pulse jet valves. The diaphragm valves with threaded ports are designed for the filter cleaning of dust collectors and baghouses in reverse pulse jet systems. Pulse Jet Valve, also called diaphragm valve acts as a "switch" for compressed air in the dust collector system for bag filters. It is controlled by the electric signals from the Pulse Controller. Pulse Jet Valves are used in filtering systems of dust collectors, gas turbines, and desulfurization equipment. Pulse jet valves are commonly used to clean filters such as cartridge filters, envelope filters, ceramic filters, and sintered metal fiber filters.
Technical Data of T Series Pulse Jet Valves:
|
Model No
|
CA15T
|
CA20T
|
CA25T
|
CA35T
|
CA45T
|
CA50T
|
CA62T
|
CA76T
|
|
Office Size
(mm)
|
15
|
20
|
25
|
35
|
45
|
50
|
62
|
76
|
|
Port Size
(Inch)
|
1/2''
|
3/4''
|
1''
|
1 1/2''
|
1 1/2''
|
2''
|
2 1/2''
|
3''
|
|
Diaphragm Number
|
1
|
2
|
||||||
|
Working pressure
|
0.35 to 0.85 MPa (5 to 125 PSI)
|
|||||||
|
Voltage
|
24VDC, 24VAC, 110VAC, 220VAC
|
|||||||
|
Diaphragm Material
|
NBR, FKM, EPDM
|
|||||||
|
Body Material
|
Aluminum Alloy
|
|||||||
|
Valve Structure
|
Right Angle (Outlet is at 90° to Inlet), Threaded Port
|
|||||||
Ordering Code of T Series Pulse Jet Valve:
Main Dimension of CA15T Pulse Jet Valve:
Video of CA15T Pulse Jet Valve:
More Goyen Type Pulse Valves for you to choose:
|
|
|
|
| T Series | DD Series | FS Series | MM Series |
|
|
|
|
| RCA Series | Solenoid Coil | Solenoid Armature | Diaphragm |
