DC24V G1 1/2 Inch DMF-Y-62S SBFEC Type Solenoid Valve Full Immersion Manifold Flat Mounted

DC24V G1 1/2'' DMF-Y-62S SBFEC Type Solenoid Valve Full Immersion Manifold Flat Mounted

The structure of DMF-Y-62S full immersion (embedded) pulse jet valve is basically the same as the DMF-Z series right-angle pulse valve, except that there is no air inlet, and the air bag is used as its lower air chamber.

The working principle of DMF-Y-62S submerged pulse valve:
When the pulse valve is not energized, the gas passes through the constant pressure pipe of the upper and lower casings and The orifice enters the decompression chamber. Since the valve core blocks the pressure relief hole under the action of the spring, the gas will not be discharged, so that the pressure of the decompression chamber and the air bag are consistent, and under the action of the spring, the diaphragm will be blown. Blocked, the gas will not rush out.

When the pulse valve is energized, the valve core is lifted up by the electromagnetic force, the pressure relief hole is opened, and the gas is ejected. Due to the action of the constant pressure pipe orifice, the outflow speed of the pressure relief hole is greater than the constant pressure pipe of the decompression chamber. The inflow rate of the gas causes the pressure of the air bag to be lower than the pressure of the lower air chamber, and the gas of the air bag pushes up the diaphragm, opens the air injection port, and performs gas injection.


YouTube video of DMF-Y-62S SBFEC Type Full Immersion Diaphragm Valve:

Technical data of SBFEC Type Embedded Electromagnetic Pulse Valves:

Tips: All related accessories are also sold, like Pulse Controller, Diaphragm, Solenoid Coil and Armature Assembly.

Main dimension of DMF-Y-62S SBFEC Type Manifold Flat Mount Pulse Valve:

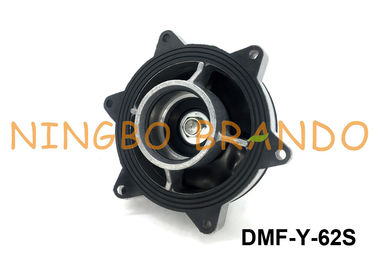

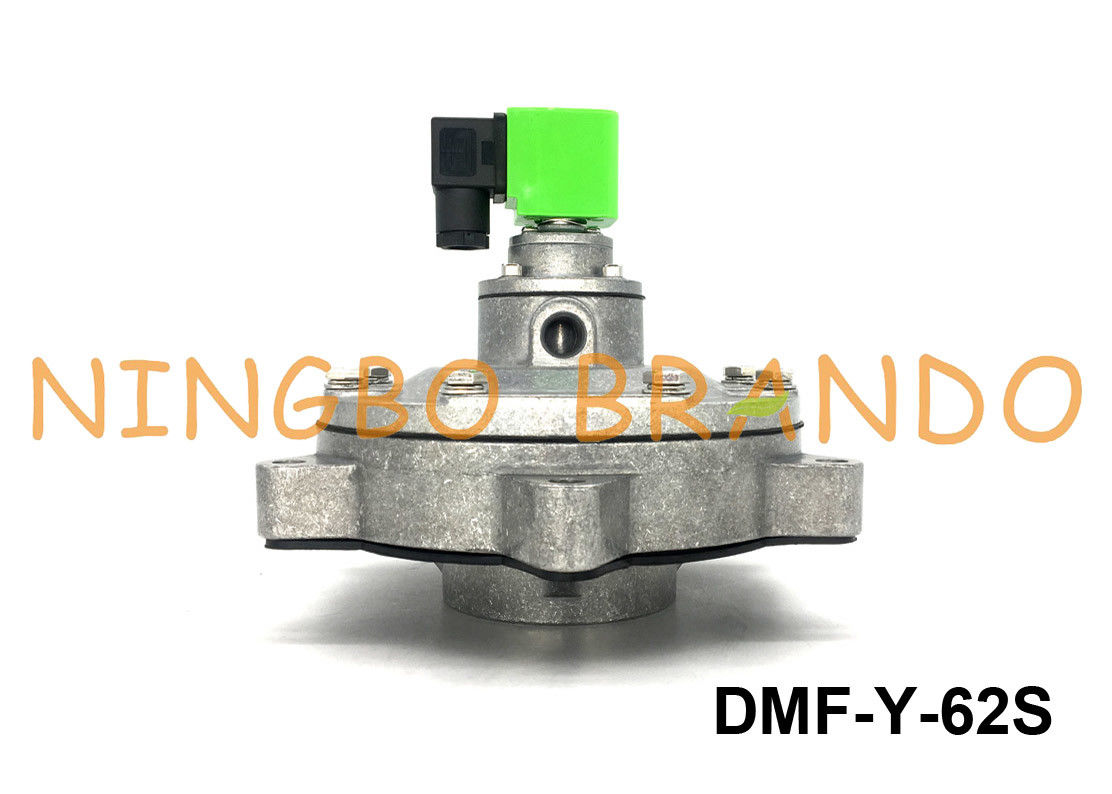

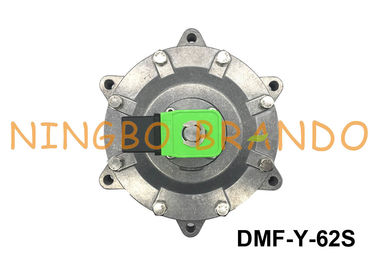

Product details of SBFEC Type DMF-Y-62S Dust Collector Pulse Jet Valve:


Environmental requirements of DMF-Y-62S solenoid pulse valve:
The pulse dust collector cleaning unit electromagnetic pulse valve should strictly abide by the environmental requirements when using, and the electromagnetic pulse valve can not run normally and smoothly. The electromagnetic pulse valve environmental conditions:

1. According to the type of power supply, AC and DC solenoid valves are used respectively. Generally speaking, AC power supply is convenient to use.

2. In the environment where the relative humidity is high and there are water droplets and rain, etc., the waterproof solenoid valve should be selected.

3. In the corrosive or explosive environment, the corrosion-resistant solenoid valve should be selected according to the safety requirements.
4. The power supply conditions of the electromagnetic pulse valve.

5. Power supply voltage fluctuations usually use +%10%.-15% AC, DC allow ±%10 or so, if excessive, must take pressure measures or put forward special order requirements.

6. The environment often has vibration, bumps and impacts, etc. should choose special varieties, such as marine solenoid valves.
7. The highest and lowest temperature of the environment should be selected within the allowable range, if there is a tolerance, special orders should be made.

8. The rated current and power consumption should be selected according to the power supply capacity. It should be noted that the VA value is higher when the AC starts, and the indirect guided electromagnetic pulse valve should be preferred when the capacity is insufficient.

9. If the environmental space is limited, please use the multi-function solenoid valve, because it eliminates the bypass and three manual valves and is convenient for online maintenance.

10. The voltage specification should be used as much as possible AC220V, DC24V.


Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
