| Place of Origin: | CHINA |
| Brand Name: | Brando |
| Certification: | CE |
| Model Number: | BC-64 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Inner Box, Carton, Pallet |
| Delivery Time: | 4-7 days |
| Payment Terms: | T/T, PayPal, Western Union, L/C |
| Supply Ability: | 100000 pcs per month |
| Product Name: | Pulse Controller | Output Voltage: | 24VDC, 110VAC, 220VAC |
|---|---|---|---|
| Input Voltage: | 220VAC | Pulse Durtion: | 0.03 To 0.2 Seconds |
| Pulse Frequency: | 1 To 30 Seconds | Max Output Lines NO.: | 64 Channel |
| Highlight: | Pulse Valve Sequential Timer,Pulse Valve Sequential Controller,Sequential Controller For Dust Collector |
||

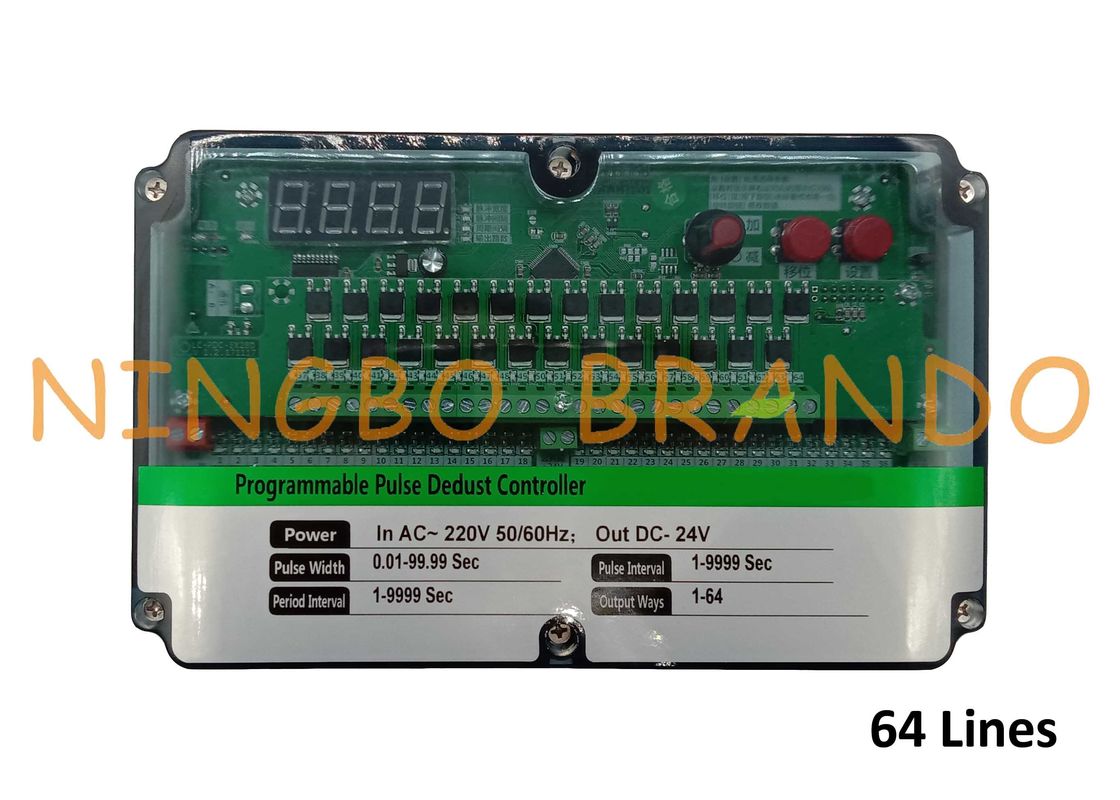

64 Lines Pulse Jet Valve Sequential Timer Controller For Dust Collector
Pulse valve controller is the main control equipment in the dust cleaning system of pulse jet dust collector. Its output signals control the solenoid valves, which spray and inject compressed air to clear dust from the filter elements in sequence. The controller output pulse interval and pulse width are set according to the dust cleaning requirement of the dust collector to ensure that the system resistance remains within the set range.
Terms Explanations:
1. Pulse Width: the duration of an electrical signal output sent by the controller.
2. Pulse Interval: the time interval between two signals sent by the controller.
3. Pulse Cycle: the time needed for the electrical signal output sent by the controller to complete.
Technical Data of Pulse Valve Controller:
|
Model
|
BC-08
|
BC-10
|
BC-12
|
BC-20
|
BC-24
|
BC-30
|
BC-36
|
BC-56
|
BC-64
|
|
Output Lines NO.
|
1-8
|
1-10
|
1-12
|
1-20
|
1-24
|
1-30
|
1-36
|
1-56
|
1-64
|
|
Input Voltage
|
220VAC, Other voltage can be customized
|
||||||||
|
Output Voltage
|
24VDC, 220VAC, Other voltage can be customized
|
||||||||
|
Pulse Frequency
|
1 to 30 Seconds
|
||||||||
|
Pulse Durtion
|
0.03 to 0.2 Seconds
|
||||||||
|
Working Environment
|
1. -25°C~+55°C
2. The relative humidity of the air does not exceed 85%
3. No serious corrosion gas and conductive dust
4. No violent vibration or shock
|
||||||||
Main Dimension of Pulse Valve Controller:
|
Output Lines
|
1-8
|
1-20
|
1-36
|
1-64
|
|
Dimension
|
115x135x65
|
160x160x95
|
230x150x90
|
248x188x105
|
Details Images of Pulse Valve Controller:
