| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE |
| Model Number: | CA45T |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Inner Boxes, Carton, Pallet |
| Delivery Time: | 4-7 days |
| Payment Terms: | T/T, PayPal, Western Union, L/C |
| Supply Ability: | 100000 pieces per month |
| Port Size: | 1 1/2'' | Valve Series: | T |
|---|---|---|---|
| Valve Structure: | Right Angle, Threaded Port | Diaphragm Material: | NBR, FKM |
| Working Pressure Range: | 0.35 To 0.85 MPa | Coil Voltage: | 24VDC, 110VAC, 220VAC |
| Highlight: | Goyen Pulse Valve CA45T,Goyen Solenoid Pulse Jet Valve,Goyen Pulse Valves |
||

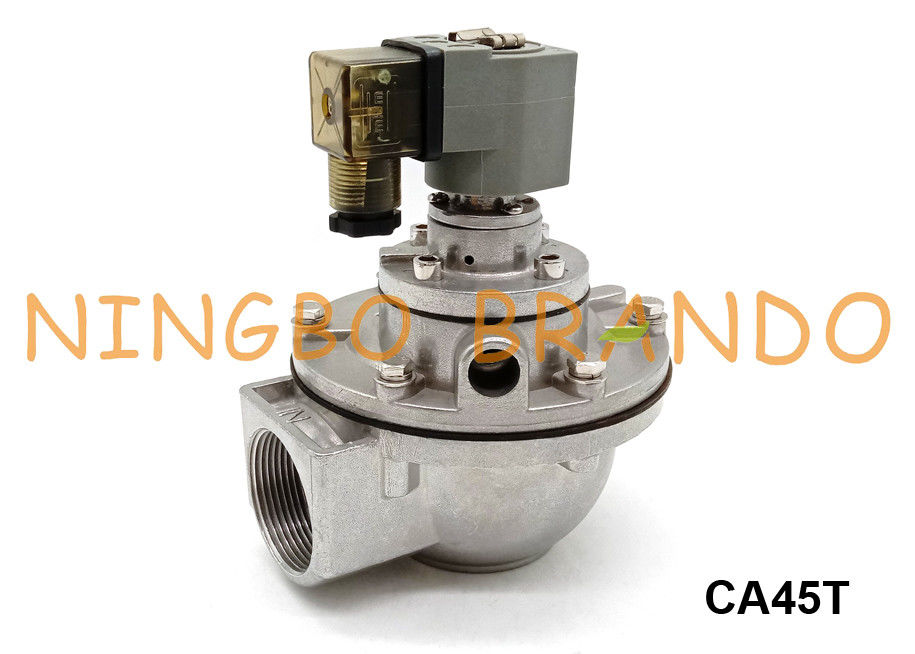

1 1/2'' CA45T Goyen Type Solenoid Pulse Jet Valve For Dust Removal
Pulse Jet Valves are used in filtering system of dust collectors. The rapid closing and opening movement of the valve plays an important role in effectively cleaning the system and, it also ensures an economic consumption of compressed air. This Pulse Solenoid Valve goes through an intensive process and is checked multiple times by our quality auditors to ensure that each and every component is working to the best of its ability. This stringent process ensures that we always deliver premium quality products to our esteemed clients.
Technical Data of T Series Pulse Jet Valves:
|
Model No
|
CA15T
|
CA20T
|
CA25T
|
CA35T
|
CA45T
|
CA50T
|
CA62T
|
CA76T
|
|
Office Size
(mm)
|
15
|
20
|
25
|
35
|
45
|
50
|
62
|
76
|
|
Port Size
(Inch)
|
1/2''
|
3/4''
|
1''
|
1 1/2''
|
1 1/2''
|
2''
|
2 1/2''
|
3''
|
|
Diaphragm Number
|
1
|
2
|
||||||
|
Working pressure
|
0.35 to 0.85 MPa (5 to 125 PSI)
|
|||||||
|
Voltage
|
24VDC, 24VAC, 110VAC, 220VAC
|
|||||||
|
Diaphragm Material
|
NBR, FKM, EPDM
|
|||||||
|
Body Material
|
Aluminum Alloy
|
|||||||
|
Valve Structure
|
Right Angle (Outlet is at 90° to Inlet), Threaded Port
|
|||||||
Ordering Code of T Series Pulse Jet Valve:
Main Dimension of CA45T Pulse Jet Valve:
Video of CA45T Pulse Jet Valve:
