| Place of Origin: | Ningbo, China |
| Brand Name: | BRANDO |
| Certification: | CE, ISO |
| Model Number: | FDF11A |
| Minimum Order Quantity: | 300pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Box, Carton, Pallet |
| Delivery Time: | 10 to 15 working days |
| Payment Terms: | T/T, PayPal, Western Union |
| Supply Ability: | 50000pcs per month |
| Product Name: | Refrigeration Solenoid Valve | Port Size: | 1/2'' (12.7mm OD) |
|---|---|---|---|
| Orifice Size: | 11mm | Kv: | 2.4m³/h |
| Min. OPD: | 0.02MPa | Max. OPD: | 2.8MPa |
| MOP: | 4.5MPa | Function: | 2 Way Normally Closed |
| Voltage: | 12VDC, 24VDC, 24VAC, 110VAC, 220VAC | Application: | Air Conditioner, Heat Pump, Etc |
| Highlight: | SANHUA Solenoid Valve FDF11A,Refrigeration Solenoid Valve 1/2'',Refrigeration Solenoid Valve 220VAC |
||

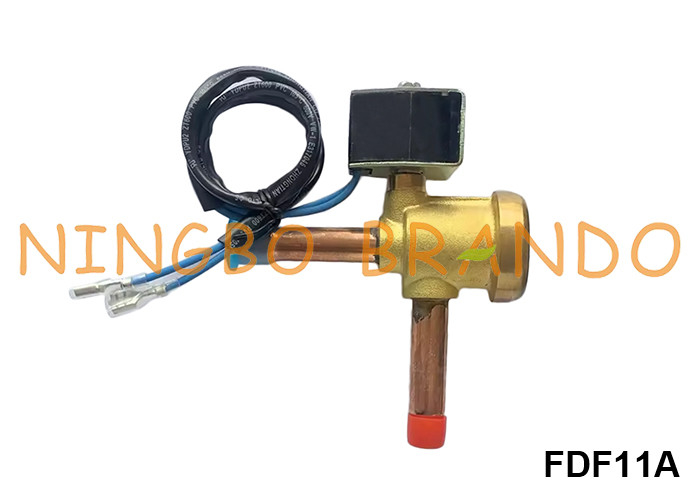

FDF11A SANHUA Type Refrigeration Solenoid Valve 1/2'' 24VDC 110VAC 220VAC
FDF series solenoid valves are direct operated or pilot operated solenoid valves, mainly used in refrigerant control of various devices such as refrigerating and freezing systems, air conditioners and heat pumps.
Technical Data:
|
Model No
|
FDF2A
|
FDF2.5A
|
FDF3A
|
FDF4A
|
FDF6A
|
FDF8A
|
FDF11A
|
FDF13A
|
|
Actuation
|
Direct
|
Pilot
|
||||||
|
Seat
(mm)
|
1.9
|
2.5
|
2.7
|
4.0
|
5.8
|
8.0
|
11.0
|
13.0
|
|
Kv
(m³/h)
|
0.08
|
0.2
|
0.26
|
0.3
|
0.56
|
1.29
|
2.4
|
3.44
|
|
Max. OPD
(MPa)
|
3.4
|
3.4
|
3.4
|
3.4
|
3.4
|
2.8
|
2.8
|
2.8
|
|
Min. OPD (MPa) |
0
|
0.01
|
0.01
|
0.01
|
0.01
|
0.01
|
0.02
|
0.02
|
|
MOP
(MPa)
|
4.5
|
|||||||
|
Normal Position
|
NC
|
|||||||
|
Tube OD (inch) |
1/4''
|
1/4''
|
5/16''
|
1/4''
|
5/16''
|
3/8''
|
1/2''
|
5/8''
|
|
Tube OD (mm) |
6.35
|
6.34
|
7.94
|
6.35
|
7.94
|
9.52
|
12.7
|
15.88
|
Main Dimension:
|
Model No
|
Dimension (mm)
|
|||
|
D
|
L
|
L1
|
L2
|
|
|
FDF2A
|
6.35
|
67
|
32
|
34
|
|
FDF2.5A
|
6.35
|
85
|
38
|
38
|
|
FDF3A
|
7.94
|
81
|
35
|
36
|
|
FDF4A
|
6.35
|
81
|
35
|
38
|
|
FDF6A
|
7.94
|
81
|
35
|
36
|
|
FDF8A
|
12.7
|
114
|
62
|
62
|
|
FDF11A
|
12.7
|
113
|
61
|
61
|
|
FDF13A
|
15.88
|
114
|
62
|
62
|
