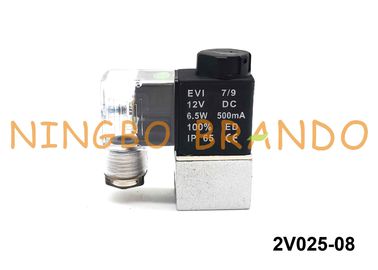

1/4" 2V025-08 Airtac Type Fluid Control Pneumatic Solenoid Valve 2/2 Ｗay Direct Acting NC

1/4'' 2V025-08 Airtac Type Fluid Control Pneumatic Solenoid Valve 2/2 Ｗay Direct Acting NC

The Airtac 2V025 series pneumatic solenoid valve is a functional replacement for the SMC VXP series.

Feature of 2V025 Series Aluminum Solenoid Pneumatic Air Valve 2 Way, Direct Acting, Normally Closed:
1. Direct-acting normally closed 2/2-way solenoid valve. High sensitivity makes it possible to change direction quickly.
2. The structure is compact and small.
3. The valve body is made of heat-resistant brass and the coil meets Class B standards. The seals are made of fluoro rubber (VITON) and are suitable for many types of working media.

Main dimension of 2V025-08 Airtac Type Fluid Control Pneumatic Solenoid Valve:

Technical parameters of Airtac Type 2/2 Way NC Fluid Control Solenoid Valve:

Disassembly show of Direct Acting Normally Closed 2V025-08 Air Solenoid Valve:

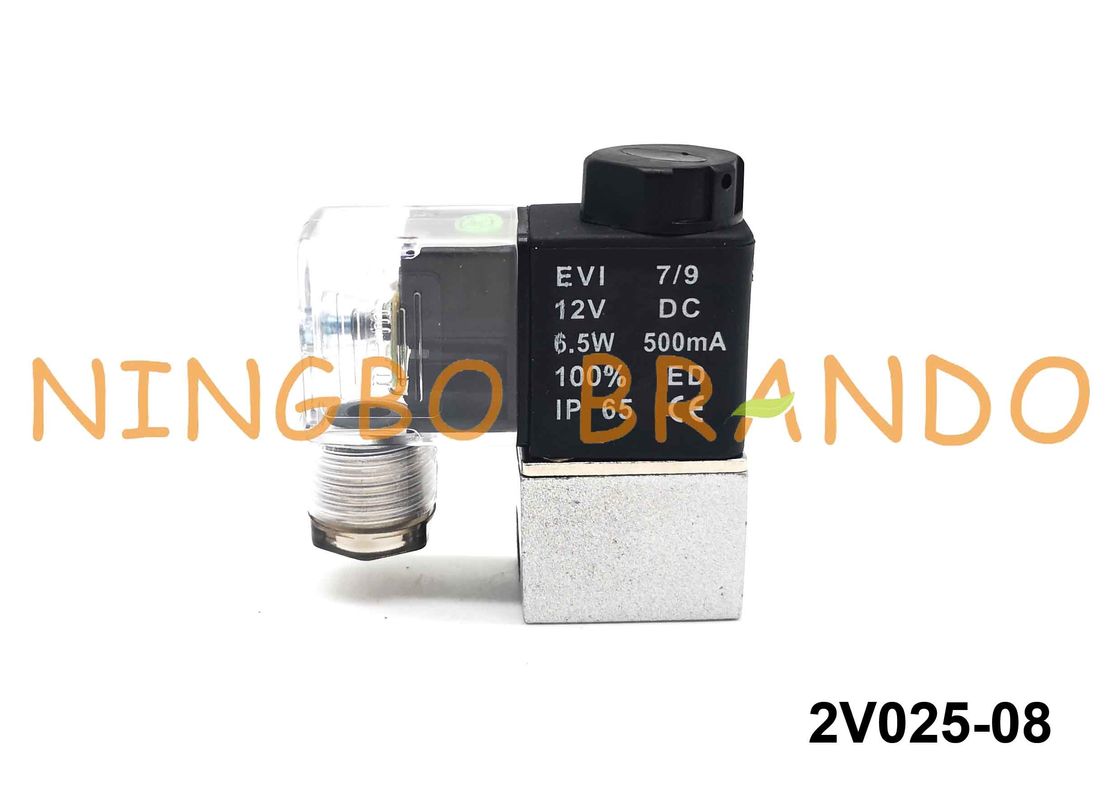

Details enlargement of 1/4'' AIRTAC Type Aluminum Pneumatic Solenoid Air Valve:

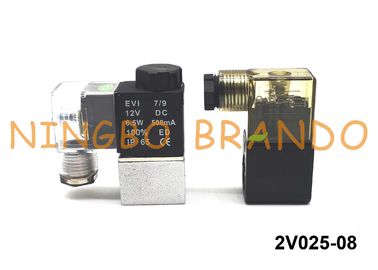

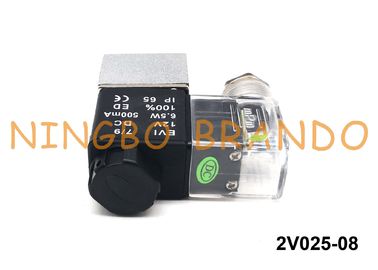

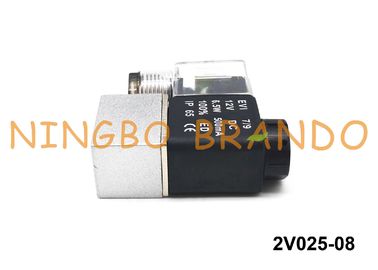

More display of 2V025-08 AIRTAC Type 2 Position 2 Way Pneumatic Air Valve:

Packing display of 2V025-08 Airtac Type Fluid Control Solenoid Pneumatic Valve:

Installation of 2V025-08 Airtac Type Fluid Control Pneumatic Solenoid Valve:

To Connect the Valve Inlet & Outlet:

Connect the inlet & outlet to the valve ports according to the flow direction arrow marked on the valve.

To Install the Coil:

Put the coils on to the armature tube of the valve. Place the lock washer & nut on to the armature tube. Hand tighten the nut, then use a wrench to tighten the nut another quarter-turn. Do not over-tighten the nut, as it may cause the armature tube to fail prematurely.

To Connect a DIN Coil:
1. Remove the screw from the plastic DIN housing & unplug it from the DIN coil

2. From the screw opening, push the terminal block out from the plastic DIN housing.

3. Note the “1”, “2”, and ground “⏚” symbols on the underside of the DIN enclosure.

4. For DC DIN Coils, connect “1” to your Positive Lead & “2” to your Negative lead.

5. For AC DIN Coils, connect “1” to your HOT lead, “2” to your Neutral lead, & “⏚” to your ground if required.

Do not energize the coil without installing it onto the valve or connect the coil to a different voltage than specified. This will burn the coil and could create fire hazards.
