| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE |
| Model Number: | IG7 Dakota |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Inner Box, Carton, Pallet |
| Delivery Time: | Negotiation |
| Payment Terms: | T/T, PayPal, Western Union |
| Supply Ability: | 10000 sets per month |
| Name: | RAIL Type IG7 Dakota Injector Rail | Compatibility With Gas: | LPG, CNG |
|---|---|---|---|
| Injector Version: | 2, 3, 4 (N° Of Cylinders) | Resistance: | 2 Ohm |
| Rated Voltage (at Coil): | 10.8 - 14.4Volt | Seat Diameter: | 3.3mm |
| Working Pressure: | From 0.5 To 2.0 Bar (7 To 29Psi) | Inlet Gas Fitting For Rubber Hose: | φ10 Mm, φ12 Mm, φ14 Mm, φ16 Mm |
| Minimum Injection Pulse: | 1.8ms | Complete OPENING Response Time: | 1.7ms |
| Complete CLOSING Response Time: | 1.4ms | Temp Range: | -40°C To +120°C |
| Outlet Gas Fitting: | Calibrated Nozzles M8x1 For Rubber Hose φ4 Mm, φ5 Mm, φ6 Mm | Homologations: | E8 67R-01 4893 / 110R-00 4894 |
| Highlight: | solenoid operated valve,solenoid pneumatic valve |
||

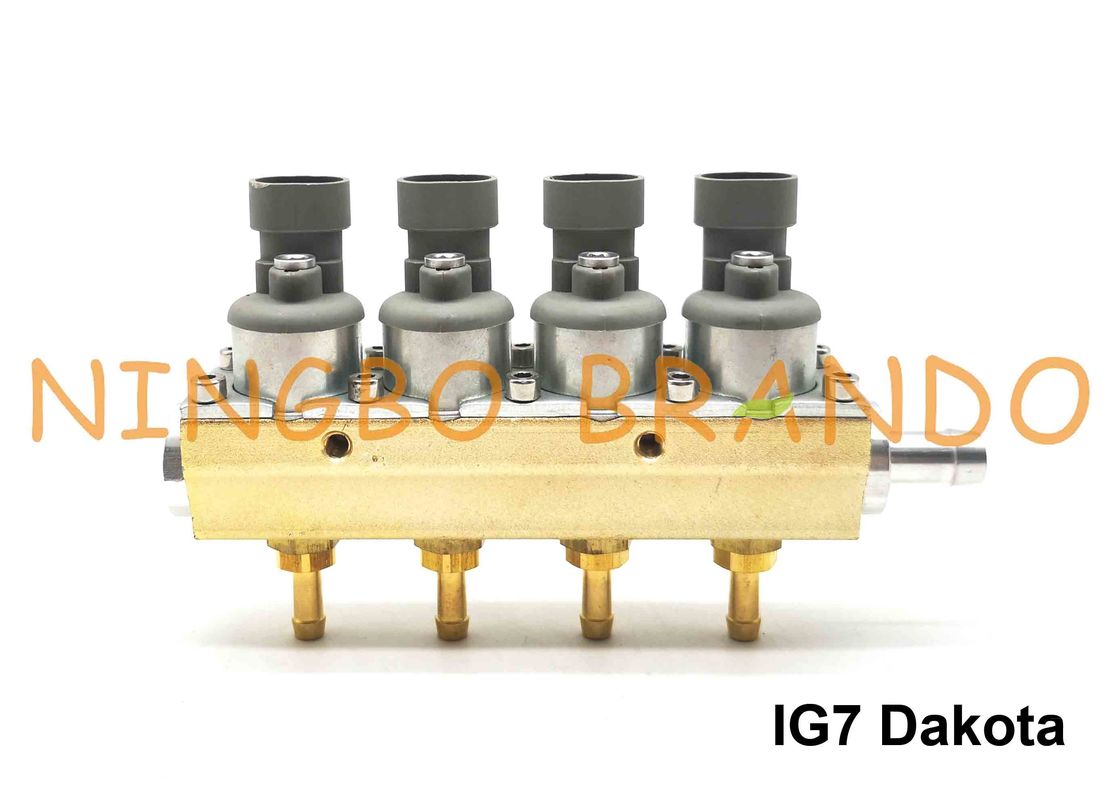

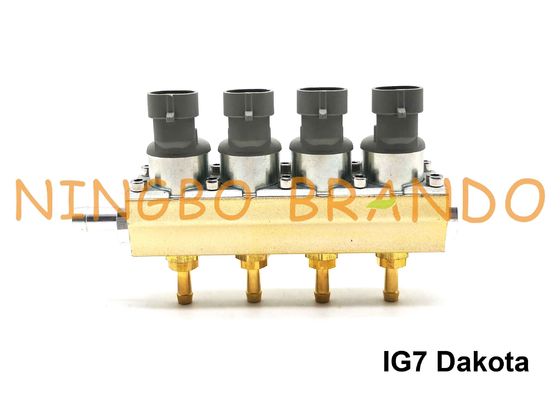

RAIL Type IG7 Dakota Navajo Injector Rail 2 Ohm 4 Cylinder Aluminum Body For LPG CNG
The following is RAIL Type IG7 Dakota Navajo 2 Ohm 4 Cylinder Rail Injectors for gaseous liquefied petroleum gas and natural gas. Single version, stroke 0.47 mm. Coil with 2 built-in waterproof connectors, compatible with Amp / Delphi. Aluminum body. Suitable for building technology that achieves high performance in terms of speed and duration. Not very sensitive to dust accumulation. High internal flow stability and repeatability.
The upgraded IG7 Dakota Navajo injector rail will feature new design to distinguish it from the currently available version. They are going to include:
1. Higher durability;
2. Shorter injector opening and closing time;
3. Improved efficiency.
Main dimension of RAIL Type IG7 Dakota Navajo 2 Ohm 4 Cylinder Injector Rail:
Technical data sheet of LPG / CNG RAIL Type IG7 Dakota Navajo 2 Ohm Rail Injector:
| Characteristic | Unit | Value | Note |
| Injector Version | N° of cylinders | 2, 3, 4 | |
| Material body and treatment | Aluminium | ||
| Relative Pressure | Bar (Psi) | From 0.5 to 2.0 (7 to 29) | Working pressure |
| 4.5 (65) | Max pressure | ||
| Rated voltage (at coil) | Volt | 10.8 - 14.4 | |
| Coil type | by encoding | E2 | |
| Resistance | Q | 2 | ± 5% at T= 25° |
| Suggested peak current time (duration) | ms | 2.4 | |
| Suggested holding current (±10%) | A | 1.4 | |
| Cold Starting Requirements | Increase up to 20% the "peak current time" for first cycles when gas temperature is < 10°C | ||
| Complete OPENING Response Time | ms | 1.7 | (±10% - total injection time 5 ms) ± 5% tested without nozzle at 14V Dp=1bar T= 25°C |
| Complete CLOSING Response Time | ms | 1.4 | |
| Minimum injection pulse | ms | 1.8 | tested with 2 mm nozzle diameter at 14V Ap=1 bar T= 25°C |
| Stroke | Micron | 470 | |
| Seat Diameter | mm | 3.3 | |
| Leakage (tested with air) | cc/h | < 15 | |
| Noise level | dB | T.B.D | ±1 dB Rail Test Condition |
| Compatibility with gas | LPG, CNG | ||
| Driver Stage | Peak and Hold (PWM) | ||
| Coil Connector type | 2 way Amp/Delphi super seal fermale connector with tab contacts | About connecting wire, refer to our drawing, code 114.01.AMP.001 | |
| Inlet gas fitting for rubber hose | mm | φ10 mm / φ12 mm / φ14 mm / φ16 mm | |
| Outlet gas fitting | Calibrated nozzles M8x1 for rubber hose φ4 mm - φ5 mm - φ6 mm | ||
| Calibrated hole φ range (for nozzles) | φ | From 1.00 to 3.25 mm (0.25 mm step) | |
| Approvals | 110R-00 67R-01 (-40°C / +120°C) | ||
| Principle of operation | Solenoid valve - Normally closed - Mobile Plunger | ||
| Power handling capability LPG | HP/cyl | 1 bar up to 40 HP/cyl | |
| Power handling capability CNG | HP/cyl | 2 bar up to 35 HP/cyl | |
| Coil IP Rating | IP54 | ||

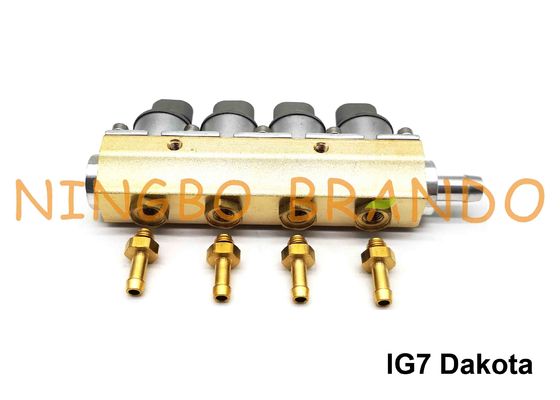

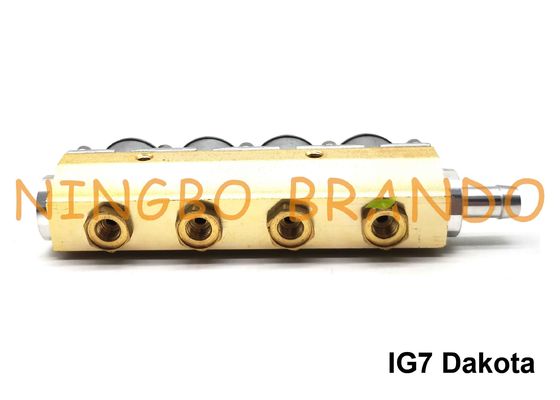

Details enlargement display of RAIL Type IG7 Dakota LPG / CNG Injector Rail:
Packaging display of IG7 Dakota Navajo RAIL Type 4 Cyl Rail Injector 2 Ohm:
Video display of 4 Cylinder 2 Ohm RAIL Type IG7 Dakota Rail Injectors in Youtube:
