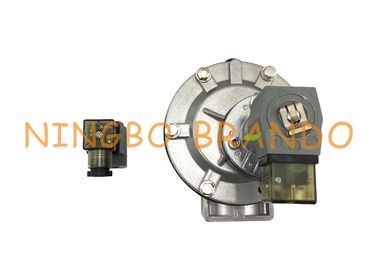

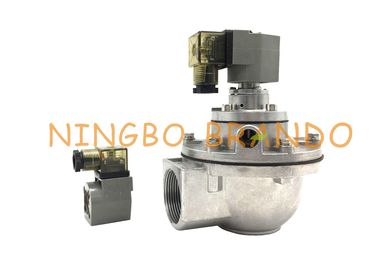

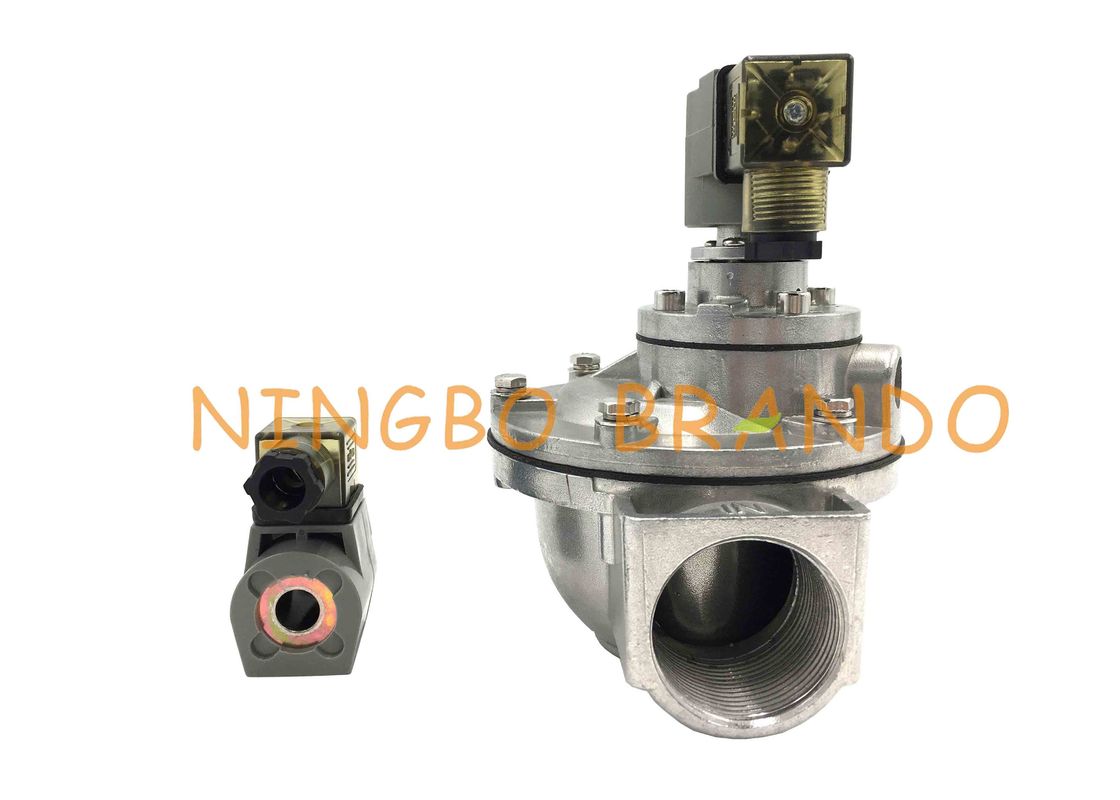

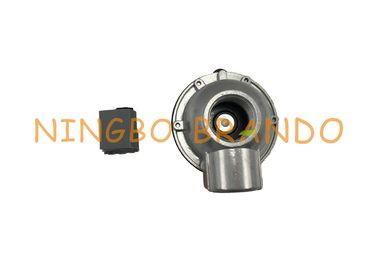

AC 110V DC 12V Medium Flow Double Diaphragm CA45T Goyen Type Pulse Jet Dust Collector Valve With Threaded Connection

AC 110V DC 12V Medium Flow Double Diaphragm CA45T Goyen Type Pulse Jet Dust Collector Valve With Threaded Connection

APPLICATIONS:

These mount valves are suitable for use in dust management systems in all types of industries and processes, including:

cement production
mining applications
silo and conveyor systems, bulk goods handling
general industrial dust collection
improving indoor workplace air quality
preventing harmful emissions
power industry: protecting boilers and gas turbines from dust particles

Their tough and reliable design has brought them to high-performance systems around the world to control the

dispersion of noxious substances, improve indoor air quality in workplaces, or prevent harmful dust emissions.

The full immersion technology makes them suitable for demanding applications.

Main Dimension Diagram of 1 1/2 Inch DN45 CA45T Goyen Type Dust Collector Pulse Valve:

Technical parameters of Goyen Type T Series Reverse Pulse Jet Valves:

Details of 1 1/2 CA45T Goyen Type Diaphragm Valve In Reverse Pulse Jet System:

Tips: All accessories can be sold separately as repair parts (Diaphragm, Solenoid Coil, Armature Assembly)

 MAINTENANCE
Before conducting any maintenance activity on the system ensure that components are fully isolated from pressure and power supplies. Pressure and power should not be reapplied until the valve has been fully assembled. Diaphragm and pilot inspection should be conducted annually.

INSTALLATION
1. Prepare supply and blowtube pipes to suit valve specification. Avoid installing valves underneath the tank.
2. Ensure tank and pipes are free from dirt, rust or other particulate.
3. Ensure supply air is clean and dry.
4. Mount valves to inlet pipes and blowtube to valves, ensuring no excess thread sealant can enter the valve itself.
5. Make electrical connections to solenoid or connect RCA pilot port to pilot valve (RCA valves only).
6. Apply moderate pressure to system and check for installation leaks.
7. Fully pressurise system.
8. Test fire and listen for proper actuation and crisp pulse noise.

Youtube video of 1 1/2 Inch CA45T Goyen Type Dust Collector Pulse Solenoid Valve:
