| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE |
| Model Number: | DMF-ZM-40S |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiation |
| Packaging Details: | inner boxes,cartons,pallets |
| Delivery Time: | Negotiation |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100000pcs per month |
| Valve Body Material: | Aluminum Alloy | Seal Material: | NBR,FKM, EPDM |
|---|---|---|---|
| Structure: | Diaphragm | Action: | Pilot Operated |
| Number Of Diaphragm: | 2 | Port Size: | G1-1/2 Inch |
| Application: | Dust Collector | Voltage: | AC220V, AC110V, AC24V, DC24V |
| Highlight: | BFEC Pulse Valve,BFEC Diaphragm Valve,BFEC Solenoid Valve |
||

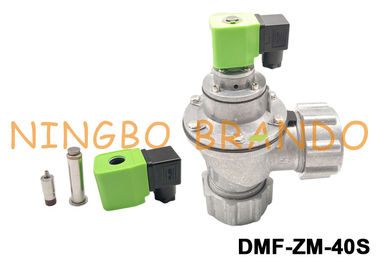

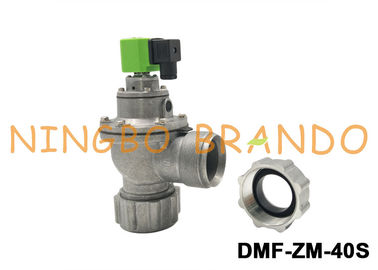

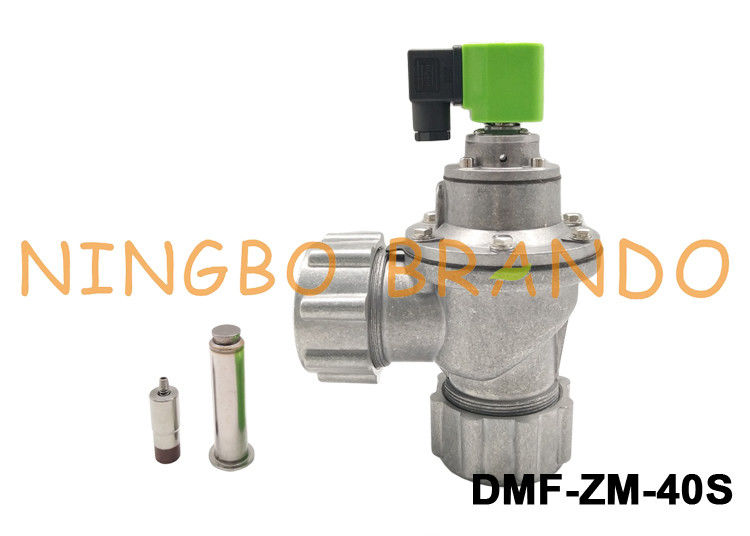

1-1/2 Inch Right Angle DMF-ZM-40S Double Diaphragms Pneumatic Pulse Jet Valve For Dust Collector
DMF-ZM-40S Solenoid Valve is an important Parts of reverse pulse jet filter cleaning and its variations , including bag filters, cartridge filters and envelope filters, ceramic filters and sintered metal fibre filters. This Valve is Right Angle Aluminum Alloy body 1-1/2 Inch Solenoid Diaphragm Valve With Dress-nut.
Technical Data of BFEC Aluminum Alloy Normal Colse Electrically controlled pulse valve:
| Model No. | DMF-ZM-40S |
| Port Size | G1-1/2 inch |
| Body Material | Aluminum Alloy |
| Seal Material | NBR, HNBR, FKM, EPDM, Silicone, All Available |
| KV | 45.82 |
| CV | 53.47 |
| Diaphragm | NBR(Nitrile) or VITON (NBR for -5~80°C; VITON for -5~230°C) |
| Number Of Diaphgrams | 2 |
| Operating Temperature Range | -25℃ to +80℃ |
| Voltage | AC220V, AC110V, AC24V, DC24V |
Main Part of DMF-ZM-40S:
| Part Name | Material |
| Solenoid Coil | Copper Wire |
| Plunger Tube Assembly | 430FR |
| Spring | ss321 |
| Diaphragm | NBR(Nitrile) or VITON (NBR for -5~80°C; VITON for -5~230°C) |
| Seal | NBR, HNBR, FKM, EPDM, Silicone, All Available |
| Valve Body and Dresser Nut | Aluminum Alloy |
Overall Dimension of Dust Removal Electromagnetic Pulse Valve :

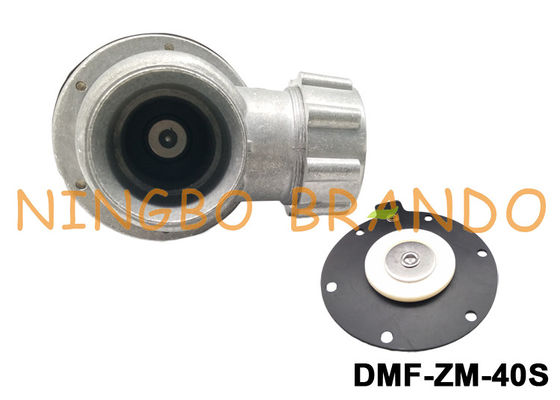

Deconstruction Diagram of Right Angle Fixed Nut Pulse Valve For Bag Filter:
Detail of DMF-ZM-40S BFEC tYPE Fitting Pipe Pulse Jet Valve:
More Details About DMF-ZM-40S 1-1/2 inch Nut Fitting Diaphragm Solenoid Pulse Valve:
Why Choose us
NINGBO BRANDO HARDWARE CO.,LTD is a professional manfacturer for solenoid valve and solenoid valve parts in China. Established for decades years ,got great praise from customers mostly from Europe, USA, Mid-east, Southeast Asia,etc.
1.High quality.
BRANDO company control quality from source, including raw material, first kitmachining, mid-production, and do inspection by 100% pieces before package,because we believe only with good quality and good service can be able to getsatisfaction from clients and markets.
All kinds of valve and seals material to meet custom requirement.
If you have your own design or new product to develop, please show us your drawing orsample, we can produce accordingly. Welcome your contact with any requirement
2.Good service
1). Quick response
2). Reputable
3). Experienced
Product Features:
Life is greater than 10 million cycles
Remote pilot versin is also available
Springless design ensures longer life
Special design made having studied tank geometry
Material of construction is stainless steel and aluminium
Double diaphragm for 40mm and above
Higher flow factor ensures better cleaning
Can be mounted in any position
Quick on / off time.
Profiled seat avoid particle trapping
Peak pressure ratio greater that 80%
Explosion proof version also available
Reduce noise levels
Less power consumption
