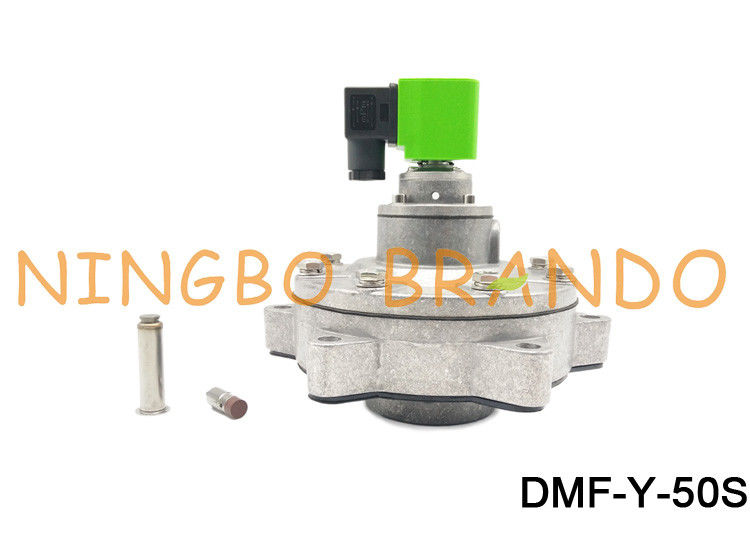

G 2" Embedded BFEC Type Pneumatic Pulse Valve In Line DMF-Y-50S For Bag Dust Collector

G 2'' Embedded BFEC Type in Line DMF-Y-50S Pneumatic Pulse Valve for Bag Dust Collector

DMF-Y-50S Embedded Typenin line Solenoid Pulse Jet Valve,DN50mm,Seal Material NBR (Normal) others can be customzied, Die Casting Aluminum ADC12 Valve Body,which is installed directly on a secondary gas bag and achieves better circulation quality. The valve has less pressure loss, and is applicable to the operations with lower gas pressure.

Suitable for reverse pulse jet filter cleaning and its variations, including bag filters, cartridge filters and envelope filters, ceramic filters and sintered metal fibre filters

Technical Data

Dimensions

Deconstruction Diagram

Details

More details about DMF-Y-50S On Youtube:

Installation Diagram

Seal Material and How to Choose

NBR

Its versatility and strong resistances, nitrile material is used in applications involving not only oil, fuel and chemical resistance, but those applications requiring resistance to heat, abrasion, water, and gas permeability.

Butadiene Acrylonitrile, Also called Buna-N, Nitrile .

Application: Automotive Industry; Bowling Industry; Oil &Gas Industry

Benifits:

1. Excellent solution for sealing applications
2. Good compression set
3. Abrasion resistance
4. Tensile strength
5. Resistance to heat
6. Resistance to abrasion
7. Resistance to water
8. Resistance to gas permeability

EPDM

EPDM rubber is an extremely versatile material that can be used in a variety of applications, from automotive products to HVAC parts. It also acts as a less expensive alternative to silicone and can last for long periods of time with proper use, saving you time and money.

Ethylene Propylene Diene Monomer

Application :HVAC; Automotive; Roofing; Industrial

Benifits:

1.Resistance to UV exposure, ozone, aging, weathering, and many chemicals - great for outdoor applications
2.Stability in high and low temperatures - a general purpose EPDM material can be used in an environment where the temperature range is from -20⁰F to +350⁰F (-29⁰C to 177⁰C).
3.Low electrical conductivity
4.Steam and water resistant
5.Used in the production of extruded rubber or molded rubber products
6.Properties allow it to be widely used and highly versatile, can be applied successfully in many situations
7.Used in the proper environment, the parts will work well and last long without breaking down, becoming brittle, etc. - saving you money on replacements
8.Less expensive than silicone, with similar properties (where heat below 250⁰F is present)

FKM

the usage of FKM spread quickly to other industries including the automotive, appliance, chemical and fluid power industries. FKM has a strong reputation as a high-performance elastomer in very hot and extremely corrosive environments.

Fluorinated Hydrocarbon

Application: Aerospace & Aircraft Industry; Automotive Industry; Food Industry; Pharmaceutical Industry

Benifit:

1.FKM materials are compatible with many chemicals

2.Temperature Stability

3.FDA Compliant

4.High tightness

Welcome to your any question and inquiry!
