1-1/2 Inch Right Angle Pneumatic Pulse Valve BFEC Type With Aluminum Alloy Body

1-1/2 Inch Right Angle Pneumatic Pulse Valve BFEC Type With Aluminum Alloy Body

DMF-Z-40S Double Diaphragm Valve has good sealing performance, safe and reliable. Controlled by the output signal of the pulse jet controller, they realize jetting dust cleaning for the bag filter row by row (or chamber by chamber) to keep the operating resistance of the bag-house within the set range, thus guaranteeing the high processing ability and dust-collecting efficiency of the bag-house. With good resistance to moisture and corrosion. Precision cast with high quality aluminum alloy, the valve is durable for long term use.Angle between inlet and outlet is 90°. Suitable for connecting air tank with blowing tubes for bag filters. With a smooth air flow, they can provide efficient dust-cleaning air pulse.

DMF: Solenoid Diaphragm Pulse Jet Valve.

Z: Right Angle , Angle between inlet and outlet is 90°.

40: Port Size is 1-1/2''

S: Double Diaphragm

DMF-Z-40S Solenoid Pulse Valve Technical Data:

Overall Dimension of DMF-Z-40S Electromagnetic Solenoid Valve :

Deconstruction of AC220V AC110V AC24V DC24V Aluminum Body Pulse Valve DMF-Z-40S:

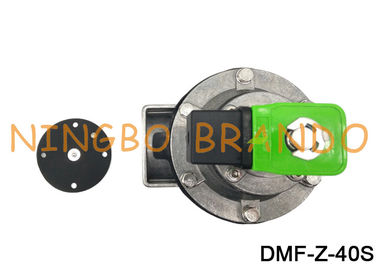

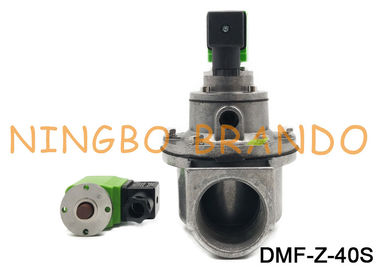

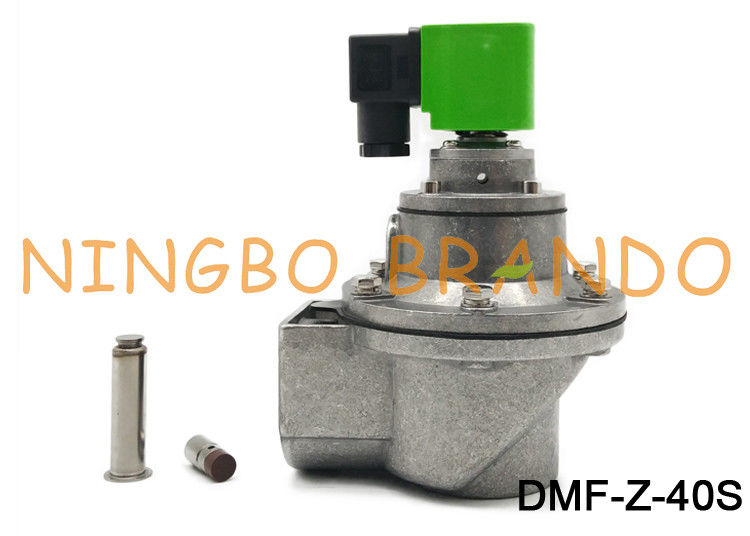

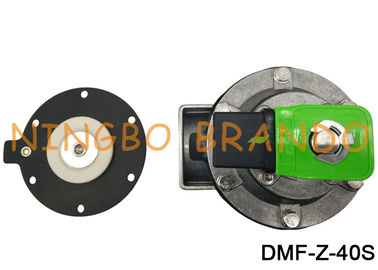

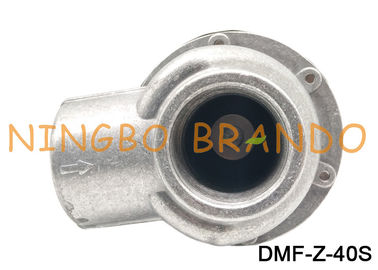

Details About DMF-Z-40S Double Diaphragm Solenoid Electric Pluse Valve :

More details about DMF-Z-40S Solenoid Pulse Valve On YOUTUBE :

Main Type of Solenoid Valve :

Y type electro-magnetic pulse valves are embedded valves (also called submerged ones) which are directly installed on the manifold box. They have better flow characteristics and operate with reduced pressure loss, therefore, they are suitable for conditions where the pressure of the gas source is relatively low.

Z type electro-magnetic pulse valves is a right-angle valve, with the 90 degree angle between the inlet and outlet, which is suitable for the installation connection between the gas dome and the baghouse blow tube to provide good air flow and dust clean pulses satisfying the requirements.

ZM type(with 2nuts) electro-magnetic pulse valves are the right-angle valve same as Z type which is suitable for the installation connection between the gas dome and the baghouse blow tube. There are fixed nut at both ends which make it easy to install and use the valve.

T type electro-magnetic pulse valves are the straight valve inline, with the 180degree angle between the inlet and outlet, which is suitable for the installation connection between the inlet and gas dome, outlet and the blow tube to provide good air flow and dust clean pulses satisfying the requirements.

Installation diagram About DMF Series Pulse Jet Valve :

Welcome to your any question and inquiry!
