6013 A 6014 C Solenoid Valve Coil 24V DC 110V 230V 50Hz 8W 11W 15W

6013 A 6014 C Solenoid Valve Coil 24V DC 110V 230V 50Hz 8W 11W 15W

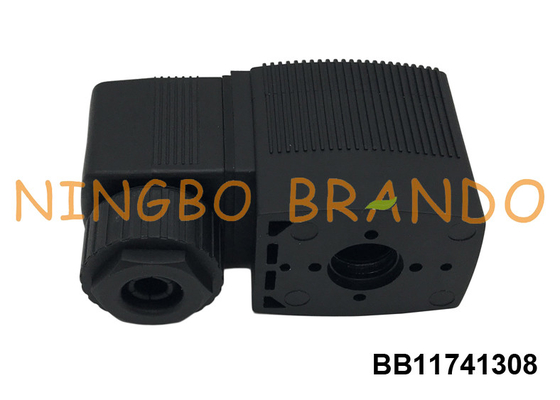

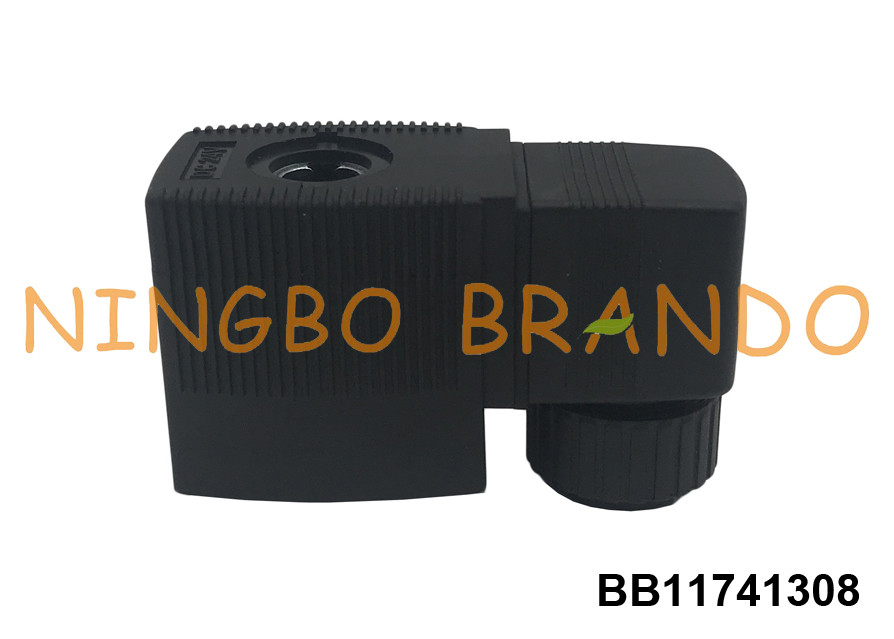

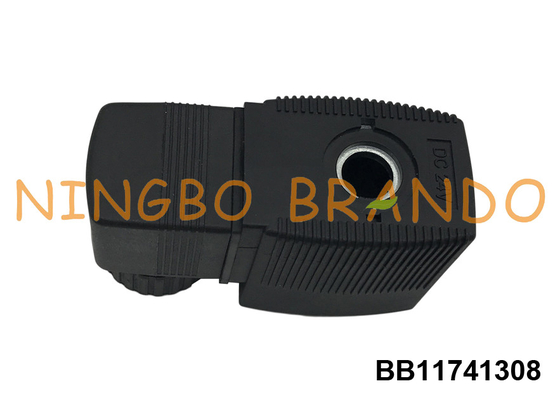

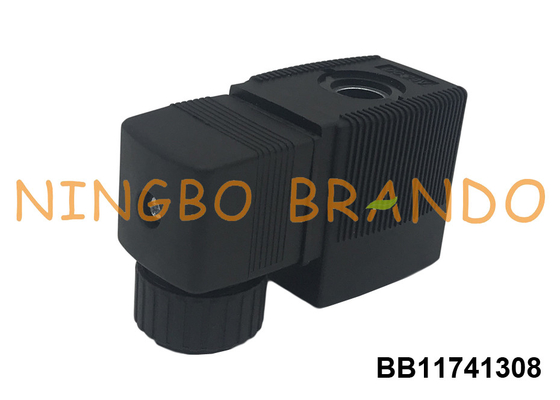

This solenoid coil is popularly used in various Burkert solenoid valves, for example, 6013A, 6014 C, etc. The coil is connected together with a 2508 DIN43650A connector. The standard coil voltage is 12VDC, 24VDC, 24VAC, 110VAC, 220VAC. The standard coil power is 8W, 11W, 15W. Other voltages and powers can be customized according to your requirements.

Technical Data:

Main Dimension:

Our Production:

FAQ: How to choose a matching solenoid coil?

1. Voltage:
The first thing to consider is the type and size of the power supply voltage of the solenoid valve, which is DC or AC. If it is AC voltage, the frequency needs to be provided, because the same coil 50Hz and 60Hz power difference is about 1.2 times.
2. Power or Resistance:
3. Dimension: Outer diameter and height of the solenoid armature or solenoid valve coil’s aperture and height.
4. Working Environment: temperature, humidity, indoor or outdoor, protection grade.
5. Connector Type: pin type, flying leading type, standard interface, etc.
6. Application: Some special application areas require the use of specially designed Solenoid coils. Different general. applications, such as industries that require waterproof, must use IP67 or higher grade solenoid valve coils.
7. Other Requirements: such as environmental protection material requirements or certification.
