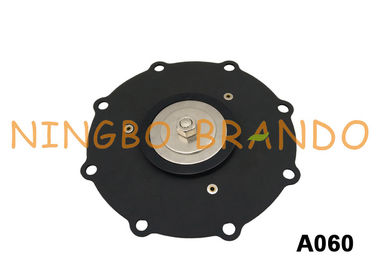

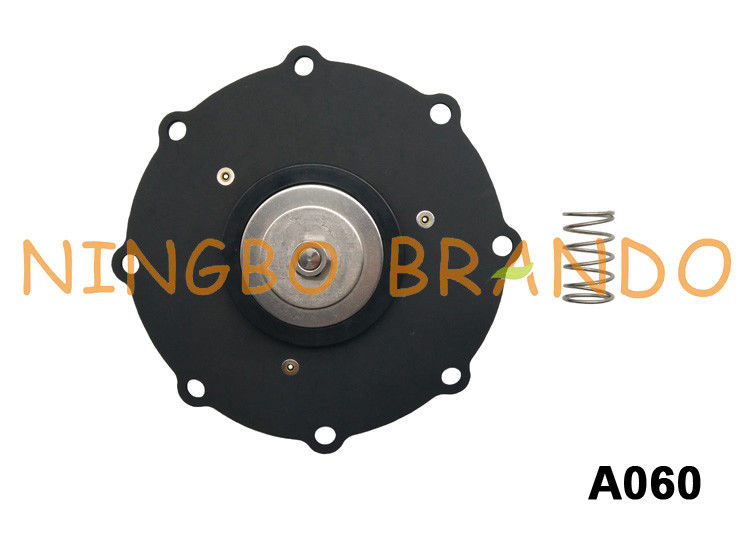

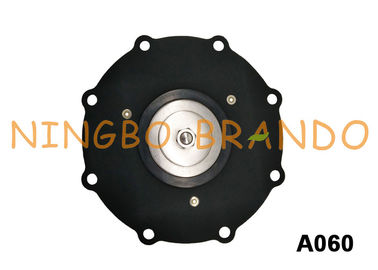

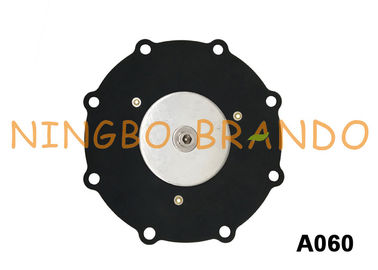

C113928 3" Solenoid Valve Diaphragm Repair Kit For ASCO Type Pulse Jet Valve

C113928 3'' Solenoid Valve Diaphragm Repair Kit For ASCO Type Pulse Jet Valve

3 inch C113928 NBR or Buna for ASCO Bag Dust Collector SCEX353.060.

Size:For 3'' Pulse Valve
Brand Name:Brando
Model Number:A060
Diaphragm Material:Buna (NBR)
Seal Gasket Material:Buna (NBR)
Suitable Valve Number:SCEX353.060
Mounting Hole Size:11mm
Diaphragm Outer Distance:190mm
Center Distance:187mm
Sealing Gasket OD:90mm
Spring:1
Packaging:Individual Plastic Bag Sealed
Net Weight (1 Set):445g


Available Models of ASCO Solenoid Valve Spare Part Kits:

Tips: The valves mentioned, related solenoid coils and armature assembly are all supplied.

Main dimension of ASCO Type Diaphragm Repair Kit C113928:

Pulse valve featues
1. The pulse diaphragm valves are especially designed for dust collector service applications, combining high flow, long life and extremely fast opening and closing to produce reliable and economical operation.
2. The design with integral compression fittings will facilitate installation because there is no need for threaded piping.
3. Built-in silencers guarantee noise free operation and avoid foreign particles entering the valve.
4. The high flow, angle type bodies, springless construction, in combination with the special diaphragm assemblies give the unique operating features required for dust collector service applications.
5. The integral operators are provided with epoxy moulded F-class coils. Various optional waterproof and explosionproof solenoids for use in potentially explosive atmospheres (gas & dust) according to Directive
ATEX 94/9/EC can be mounted on the same basic valve (see page 45 till 52).

Diaphragm Features:
1. Diaphragm (Rubber or Fabric Reinforcement in Rubber Diaphragms) is a precision functional part used check pressure or change fluid pressure into drive power.
2. Fabric-reinforced in rubber diaphragms utilize a layer of an engineered fabric material as part of the diaphragm comstruction. This layer of fabric give tremendous design flexibity.
3. Fabric is made of polyester, nylon and silk and commonly used for most applications, such like exposed to high-temperature, or require extremely high-strength.
4. Facbric-reinforced diaphragms advantages:
*No leakage
*No Lubrication
* No Breakaway Force
* No Friction
* Functionality Over Wide Pressure Ranges
* High Strength
* Low Cost
* Simple Design
* Versatility
5. EPDM, FKM all available.

Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing

Welcome to your any question and inquiry!
