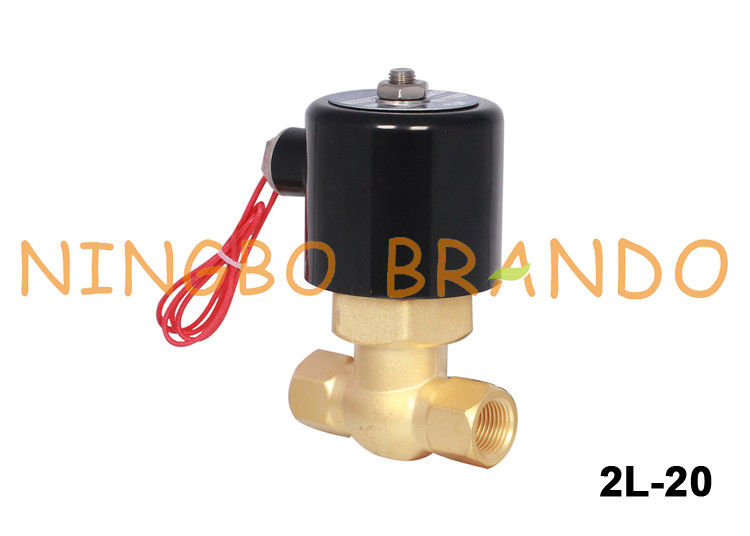

UNI-D Type US-20 2L-20 3/4" Hot Water Steam Brass Solenoid Valve AC110V AC220V DC24V

UNI-D Type US-20 2L-20 3/4'' Hot Water Steam Brass Solenoid Valve AC110V AC220V DC24V

Brando Supply:

US series: US-10, US-15, US-20, US-25, US-35, US-40, US-50

2L series: 2L-10, 2L-15, 2L-20, 2L-25, 2L-35, 2L-40, 2L-50

Temperature of Media:High Temperature
Power:Solenoid
Media:Steam, Hot Water, OIl
Port Size:3/4''
Structure:Servo
Function:2/2 Way Normally Closed
Operation Type:Servo Pilot Operated
Valve Body Material:Brass
Diaphragm Material:PTFE
Pressure Range:0.5 to 16 bar
Temperature Range:-5 to +180 ℃
Voltages:24V DC, 110V AC, 120V AC, 220V AC, 230V AC, 240V AC
US Series Model No:US-20
2L Series Model No:2L-20

Dimension of 2L/US Series Brass Solenoid Valve:

Technical Data:

CAUTIONS:
1. Minimum pressure to open:over 0.5~1kgf-c㎡
2. Before pipelining, the pipe line must be very clean without any contaminants or any other things not ought to be existed.
3. To prolong the life time of the product, Y-line filter should be installed in the front end of solenoid valve.
4. AC voltage tolerance:±10%；DC voltage tolerance:±1%
5. It should be installed horizontally；vertical installation is not advisable.

Not Suitalbe For Fluid As Below:
1. Liquid status when it is high temperature；solid status when it is cool.
2. Corrosive fluid
3. Viscosity over 20cst
