| Power: | Solenoid | Media: | Air Water Oil Gas |
|---|---|---|---|
| Port Size: | 1/8'' To 2'' | Function: | 2/2 Way, Normally Closed / Normally Open |
| Operation: | Direct Acting | Body Material: | Brass |
| Seal Material: | NBR, EPDM, FKM, Si | Medium Temperature: | -10 To +60℃ |
| Electrical Connector: | DIN 43650 Connector, Wire Leads | Voltages: | 12V DC, 24V DC, 24V DC, 110V AC, 220V AC |
| Highlight: | CKD Type Direct Acting Solenoid Valve,Normally Opened Direct Acting Solenoid Valve,Direct Acting 2 Port Solenoid Valve |
||

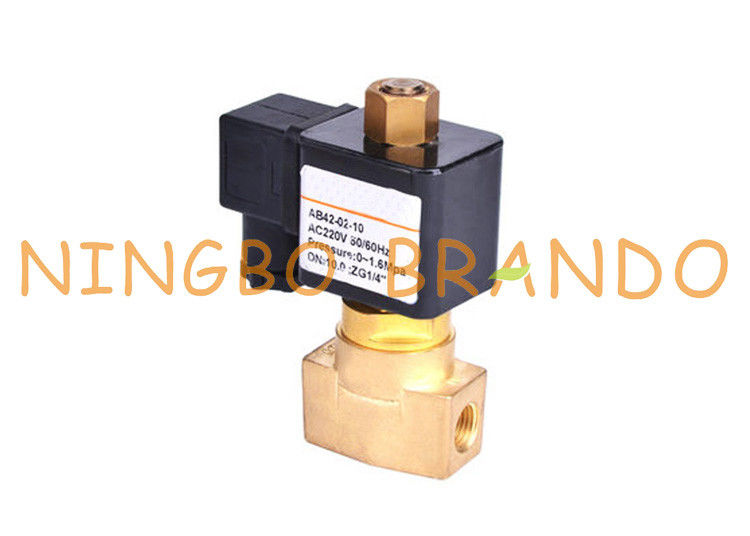

AB42 CKD Type Normally Opened Direct Acting 2-Port Single Unit Brass Solenoid Valve
Feature:
1. Supports multiple fluids
The body and sealant material can be selected to support various fluids.
2. Variations
Compatible with various applications by combining a variety of coil options.
3. Differential pressure 0 actuation
Pilot kick which actuates even at differential pressure 0.
Related page(s)
Dimension of CKD Type AB42 Series Solenoid Valve:
| Model No. | A | B | C | D | E |
| AB42-02-1 to 6 | 36 | 28 | 11 | 72 | 94 |
| AB42-02-7 | 40 | 28 | 12 | 75 | 97 |
| AB42-03-1 to 7 | 40 | 28 | 12 | 75 | 97 |
1. The port size model No. is 01 for Rc1/8 (6A), 02 for Rc1/4 (8A), 03 for Rc3/8 (10A) and 04 for Rc1/2 (15A).
2. Refer to DC column for the max. working pressure differential of coil with diode.
3. The voltage fluctuation range must be within ±10% of the rated voltage.
4. Power consumption of coil housings 2E/2G/2H.
5. When using at low vacuum, vacuum the OUT port side.
6. Power consumption of coil housings 6C/6E/6G/6H.
7. DC voltage of coil housings 2E/2G/2H, and max. working pressure differential of coil housings 6C/6E/6G/6H.
8. The 100 VAC (50/60 Hz) can be used with 110 VAC (60 Hz). The 200 VAC (50/60 Hz) can be used with 220 VAC (60 Hz). However, this does not apply to coil housings 5A/5M/5N/5I/5J
Technical Data:
| AB42 | -1 | -2 | -3 | -4 | -5 | -6 | -7 |
| Port Size | Rc1/4 Rc3/8 | ||||||
| Max. working pressure (MPa) | 1.5 | 2.0 | 3.0 | 3.5 | 4.0 | 5.0 | 7.0 |
| Rated voltage | 100 VAC 50/60 Hz *9 200 VAC 50/60 Hz *9 12 VDC 24 VDC 48 VDC 100 VDC | ||||||
| AC 50/60 Hz | 15.5 (14)*5 | ||||||
| DC | 0.50 (Rc1/4) 0.52 (Rc3/8) | ||||||
| Descriptions | Standard Specifications | Optional Specifications |
| Working Fluid | Air/low vacuum (1.33 x 103 Pa (abs))/water/kerosene/oil (50mm2 /s or less) |
Hot Water |
| Working pressure differential MPa | 0 to 1.0 (refer to max. working pressure differential in individual specifications.) | |
| Max. working pressure MPa | 2 (≈290 psi, 20 bar) | |
| Proof pressure (water pressure) MPa | 4 (≈580 psi, 40 bar) | |
| Fluid temperature (*1) °C | -10 (14°F) to 60 (140°F) | -10 (14°F) to 90 (194°F) |
| Ambient temperature °C | -10 (14°F) to 60 (140°F) | |
| Thermal class | Class 130 (B) | Class 180 (H) |
| Atmosphere | Place free of corrosive gas and explosive gas | |
| Valve structure | Pilot kick poppet, diaphragm drive | |
| Valve seat leakage (*2) cm3 /min(ANR) | 1 or less (air) | |
| Mounting orientation | Unrestricted | |
| Body/seal material | Bronze/nitrile rubber | Bronze/ethylene propylene rubber |
