| Place of Origin: | Ningbo, China |
| Brand Name: | BRANDO |
| Certification: | CE, ISO |
| Model Number: | VX2360-03 |
| Minimum Order Quantity: | 50pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Box, Carton, Pallet |
| Delivery Time: | 4 to 7 working days |
| Payment Terms: | T/T, PayPal, Western Union |
| Supply Ability: | 50000pcs per month |
| Product Name: | Solenoid Valve | Port Size: | 3/8'' |
|---|---|---|---|
| Orifice Size: | 13mm | Body Material: | Brass |
| Seal Material: | NBR, EPDM, FKM | Working Medium: | Air, Water, Gas, Liquid, Steam, Etc |
| Medium Temperature: | NBR: -5 To +80℃, EPDM: -5 To +120℃, FKM: -10 To +150℃ | Working Pressure: | 0 To 1 MPa |
| Operation: | Direct Lifting Diaphragm | Function: | 2 Way, Normally Closed |
| Voltage: | 12VDC, 24VDC, 24VAC, 110VAC, 220VAC | ||
| Highlight: | SMC Solenoid Valve VX2360-03,SMC Solenoid Valve 3/8'',SMC Solenoid Valve 220V |
||

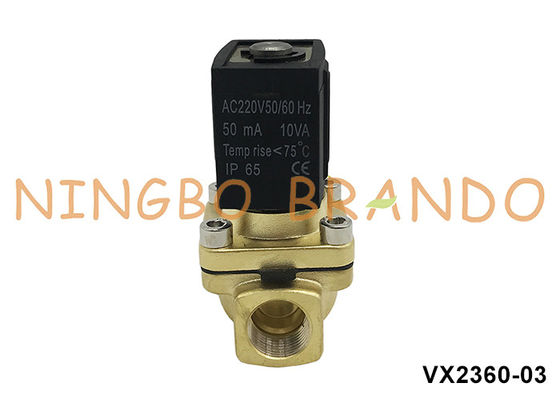

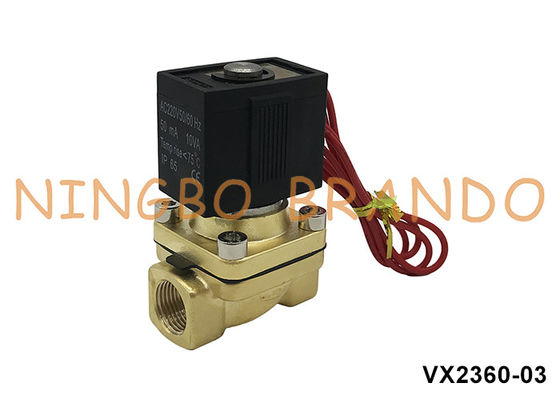

VX2360-03 3/8'' SMC Type Brass Solenoid Valve For Water Air 220V 110V 24V
Product Features:
1. Working Media: Air, Water, Gas, Liquid, Steam, etc
2. Working Pressure: 0 to 10 bar
3. Medium Temperature: NBR: -5 to +80℃, EPDM: -5 to +120℃, FKM: -10 to +150℃
4. Port Size: 3/8'', 1/2''
5. Orifice Size: 10mm, 13mm
6. Body Material: Brass
7. Seal Material: NBR, EPDM, FKM
8. Function: 2 Way Normally Closed
9. Operation: Direct Acting
10. Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC
Technical Data:
|
BRANDO Model
|
VX2260-03
|
VX2360-03
|
VX2360-04
|
|
Ref No
|
VX2120-10
|
VX2130-10
|
VX2130-15
|
|
Orifice Size
|
10mm
|
13mm
|
13mm
|
|
Port Size
|
3/8''
|
3/8''
|
1/2''
|
|
Medium
|
Water, Air, Gas, Liquid, Steam, etc
|
||
|
Operation
|
Direct Acting
|
||
|
Function
|
2 Way Normally Closed
|
||
|
Body Material
|
Brass
|
||
|
Seal Material
|
NBR, EPDM, FKM
|
||
|
Medium Temperature
|
NBR: -5 to +80℃
EPDM: -5 to +120℃ FKM: -10 to +150℃ |
||
|
Working Pressure
|
0 to 10 bar
|
||
|
Voltage
|
12VDC, 24VDC, 24VAC, 110VAC, 220VAC, other voltages can be customzied
|
||
Main Dimension:
|
BRANDO Model
|
Port
|
A
|
B
|
C
|
|
VX2260-03
(VX2120-10)
|
3/8''
|
40
|
50
|
80
|
|
VX2360-03
(VX2130-10) |
3/8''
|
40
|
50
|
80
|
|
VX2360-04
(VX2130-15)
|
1/2''
|
48
|
66
|
110
|
