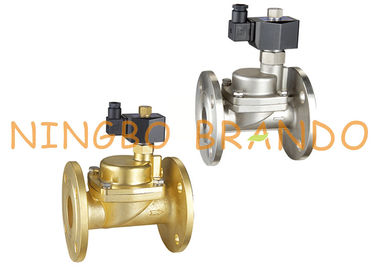

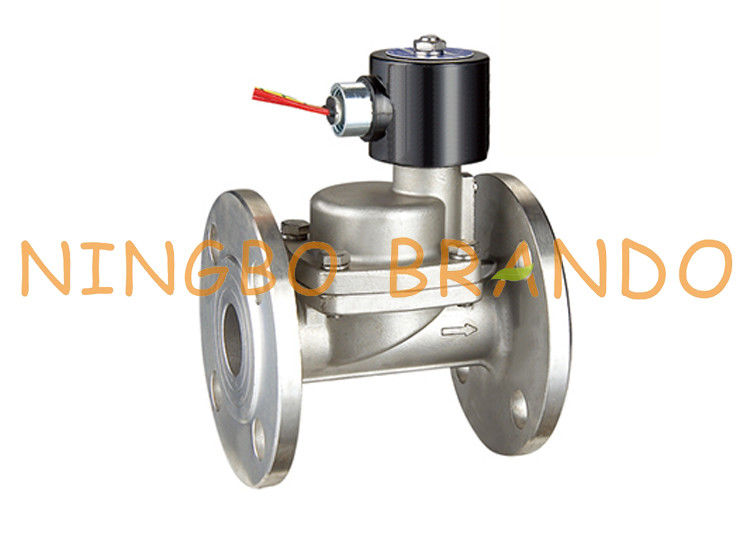

PS-25JF 1'' Flange Piston Pilot Operated Steam Stainless Steel Solenoid Valve 24VDC 220VAC

PS-25JF 1'' Flange Piston Pilot Operated Steam Stainless steel Solenoid Valve 24VDC 220VAC​

Model Number:PS
Power:Solenoid
Media:Steam, Hot Water, Oil
Port Size:1''
Function:2/2 Way Normally Closed
Operation Type:Piston Pilot Operated
Valve Body Material:Brass, Stainless Steel
Diaphragm Material:PTFE
Pressure Range:0.1 to 16 bar
Temperature Range:0 to +180 ℃
Voltages:24V DC, 110V AC, 120V AC, 220V AC, 230V AC, 240V AC
PS Threaded Series:PS-10, PS-15, PS-20, PS-25, PS-32, PS-40, PS-50
PS Flanged Series (Brass):PS-15JF, PS-20JF, PS-25JF, PS-32JF, PS-40JF, PS-50JF, PS-80JF
PS Flanged Series (SS304):PS-25F, PS-32F, PS-40F, PS-50F, PS-65F

Dimension of PS Series Brass Solenoid Valve:

Technical Data:

Brando Factory Production of Brass Solenoid Valves:

Quick Details

Standard or Nonstandard: Standard
Structure: Pilot
Pressure: High Pressure
Power: Solenoid
Material: Brass
Temperature of Media: High Temperature
Media: Base
Port Size: 1/2"~2"
Function: an electromechanical valve for use with liquid or gas
certificate passed: CE, ISO, ROHS
Export Area: ALL OVER THE WORLD

Media: Steam, hot water, air, oil (below 20cst)
Sealing material: PTFE

Media: Steam,water, hot water, air, oil (below 20cst)

Function type: Normally Closed (N/C), Normally Open (N/O)

Pressure Normally Closed 16 bar, Normally Open: 10 bar

Temperature: -5 ÷180

Mode of action: Pilot operated

Body material: Brass

Sealing material: PTFE

Protection class: IP54
