Transmission Parts Range Cylinder Repair Kit Solenoid Plunger 22327063

Transmission Parts Range Cylinder Repair Kit Solenoid Plunger 22327063

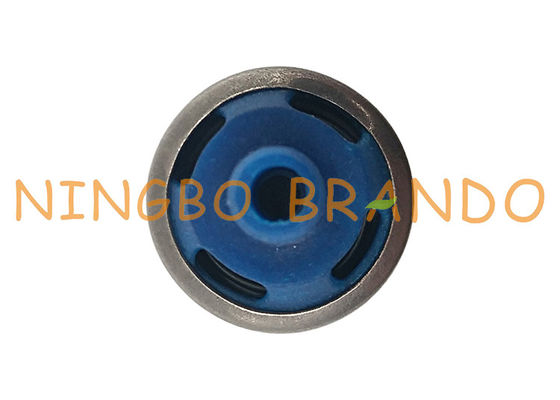

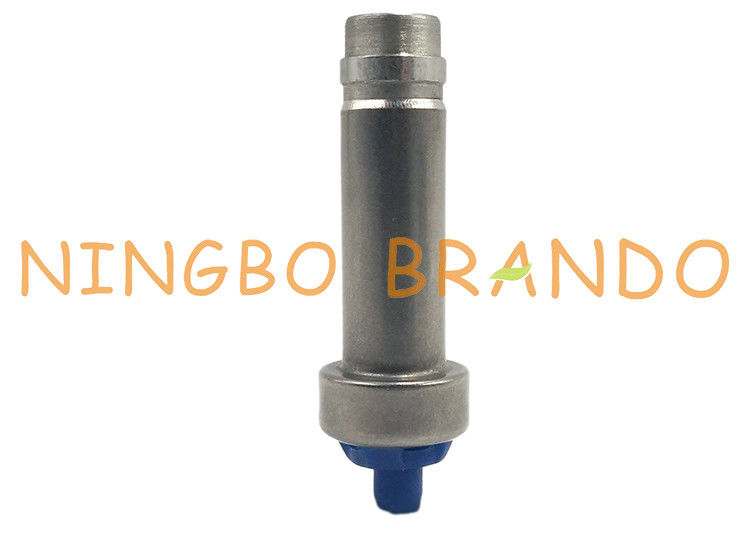

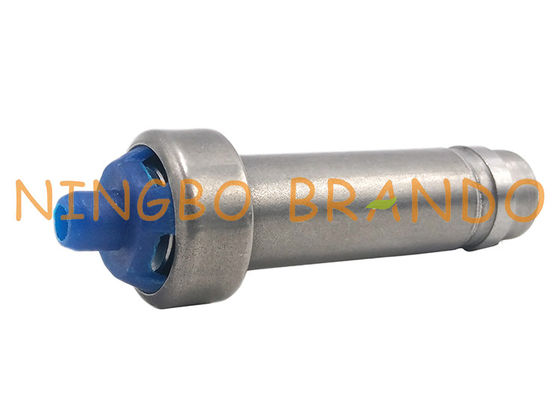

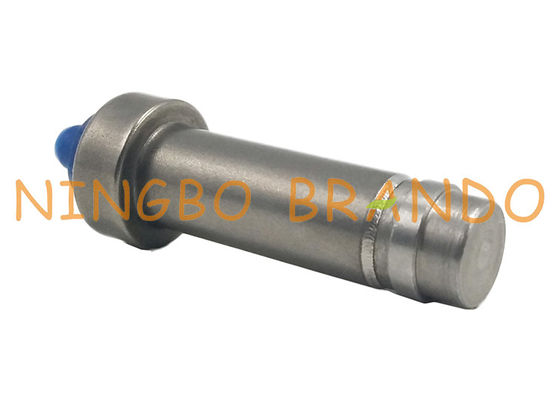

This is a clutch servo solenoid valve plunger for repair range cylinger as transmission parts. Reference Number: 22327063, 21710522, 21965253. The plunger tube body material is stainless steel 304. The valve nozzle at the end is plastic material, which has four colors, such like green, blue, brown and yellow, other colors can be customized. Our cutomers always buy these to repair their Vehicles, such like or Vol-vo Gearbox AT2412C, AT2412D, AT2612D, AT2812D, ATO2612D, ATO3.

Technical data of Clutch Servo Solenoid Valve Plunger:

Main dimension of Clutch Servo Solenoid Valve Plunger:

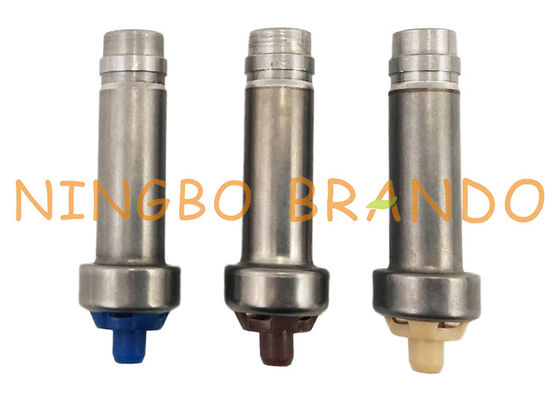

3 Nozzle Colors For you to choose:

Brando Factory Production of Solenoid Valve Armature Assembly:

More Solenoid Valve Armature Assembly for you to choose:

*According to tube OD: 5-7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm, 15mm, 16mm, 17mm, Up to 60mm.

*According to tube material: Brass, Stainless Steel

*According to valve application:

1. Pulse Solenoid Valve Armature Assembly, 2. Water Solenoid Valve Armature Assembly, 3. Pneumatic Solenoid Valve Armature Assembly, 4. Refrigeration Solenoid Valve Armature Assembly, 5. Injector Rail Armature Assembly, 6. Air-Jet Loom Solenoid Valve Armature Assembly, 7. House Appliances Solenoid Valve Armature Assembly, 8. Automobile Solenoid Valve Armature Assembly, 9. Medical Solenoid Valve Armature Assembly, etc.

Product Features of Solenoid Valve Armature Assembly:

1. Fixed core and movable core (plunger):
Adopting rustproof and corrosion-resistant material with high magnetic conductivity and low remanence to ensure armature assembly durable and smart acting.

2. Guide tube (plunger tube):
Options of brass and stainless steel, grade of H62 or SUS304;
Wall thickness from range of 0.25~2.5mm, others could be customized;
Kinds of welding type to hold various working pressure, such as laser welding, argon-arc welding, silver soldering. Machining from entire solid bar directly is also available.

3. Spring:
Rustproof SUS304 stainless steel, with good performance of restore.

4. Seals:
Options of NBR, HNBR, FKM, EPDM, PTFE, food grade materials, welcome your other requirements.

5 Shading ring:
Cooper and silver material available.

6. Washer and retaining nut provided if has demands.

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
