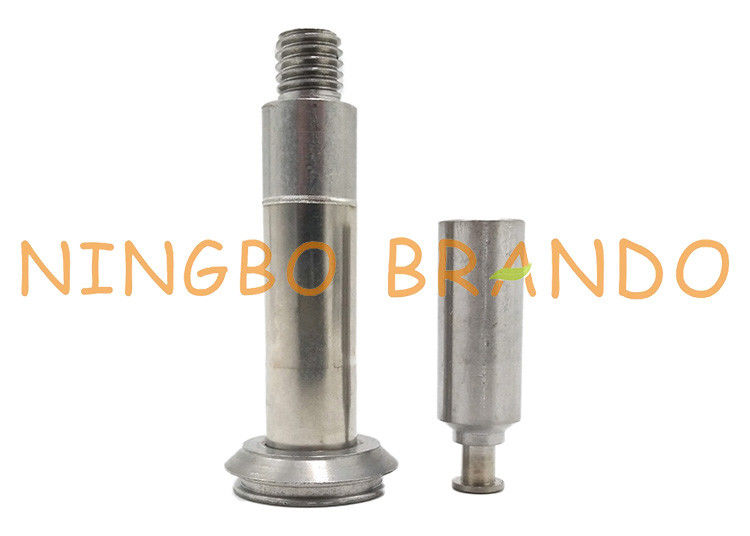

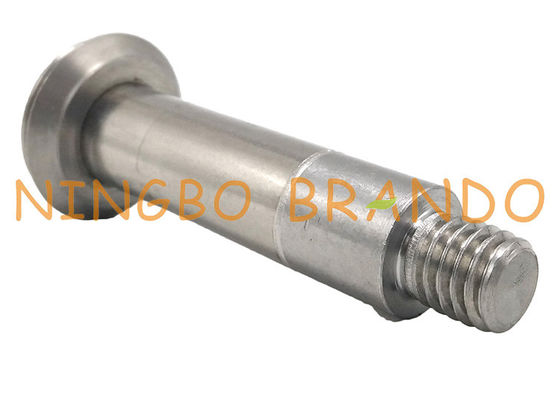

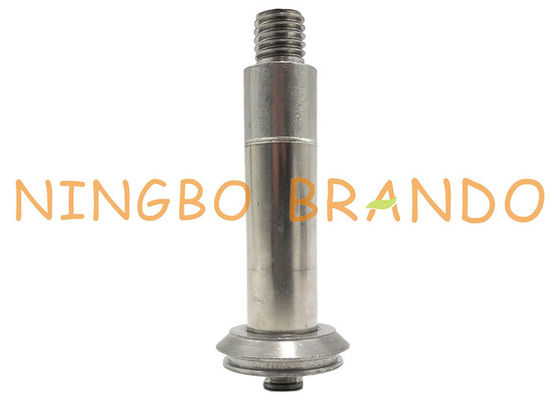

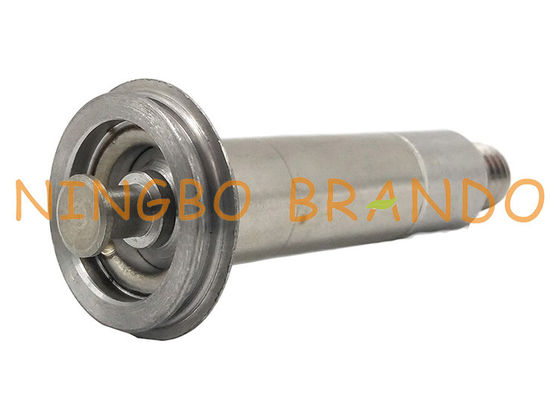

2/2 Way NC Stainless Steel Flange Seat Solenoid Valve Armature Plunger

2/2 Way NC Stainless Steel Flange Seat Solenoid Valve Armature Plunger ​

The Difference Between Normally Closed Valves and Normally Open Valves

Normally Closed Valves
Normally Closed Valves and Normally Open ValvesNormally closed valves are designed to block flow through the valve and are commonly used for emergency safety. During usual operation, these devices use a spring to remain closed. The valve will open when the system begins to experience overpressure to ensure safety. Once pressure begins to normalize, it will automatically close.

Solenoid valves can also be normally closed. A solenoid valve is an electromechanical device that controls the flow of liquid or gas through a system. Normally closed solenoid valves include a plunger that remains in a closed position when the system is running smoothly, like pressure relief valves.

Normally closed solenoid valves also include a coil that, when powered, will cause the plunger to open and allow liquid or gas to pass through the valve.

Normally Open Valves
Normally open valves are also used as safety devices. However, unlike normally closed valves, these parts work to maintain low pressure in a system. Normally open valves are designed to allow liquid or gas to flow through in usual circumstances. As the system builds pressure, they will begin to shut in order reduce and regulate pressure levels. In some extreme overpressure situations, they will close almost entirely.

Normally Closed Valves and Normally Open ValvesThere are normally open solenoid valves as well. These devices will remain open until power is sent to the coil and signals the plunger to close.

Condition:New
Applicable Industries:Solenoid Valve
Type:Fittings
Place of Origin:Zhejiang, China
Brand Name:Brando
Guide Tube Outer Diameter:14.0mm
Installation Height for Coil Assembling:50.1mm
Guide Tube Material:Stainless Steel
Mounting Type:Flange
Voltage:AC, DC All Available
Position and Way:2/2 Way
Non-working Status:Normally Close

Dimension of BAPC214050055 Armature Assembly:

Technical Data:

Product Features:

1. Fixed core and movable core (plunger):
Adopting rustproof and corrosion-resistant material with high magnetic conductivity and low remanence to ensure armature assembly durable and smart acting.

2. Guide tube (plunger tube):
Options of brass and stainless steel, grade of H62 or SUS304;
Wall thickness from range of 0.25~2.5mm, others could be customized;
Kinds of welding type to hold various working pressure, such as laser welding, argon-arc welding, silver soldering. Machining from entire solid bar directly is also available.

3. Spring:
Rustproof SUS304 stainless steel, with good performance of restore.

4. Seals:
Options of NBR, HNBR, FKM, EPDM, PTFE, food grade materials, welcome your other requirements.

5 Shading ring:
Cooper and silver material available.

6. Washer and retaining nut provided if has demands.

More Solenoid Valve Armature Assembly for you to choose:

*According to tube OD: 5-7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm, 15mm, 16mm, 17mm, Up to 60mm.

*According to tube material: Brass, Stainless Steel

*According to valve application:

1. Pulse Solenoid Valve Armature Assembly, 2. Water Solenoid Valve Armature Assembly, 3. Pneumatic Solenoid Valve Armature Assembly, 4. Refrigeration Solenoid Valve Armature Assembly, 5. Injector Rail Armature Assembly, 6. Air-Jet Loom Solenoid Valve Armature Assembly, 7. House Appliances Solenoid Valve Armature Assembly, 8. Automobile Solenoid Valve Armature Assembly, 9. Medical Solenoid Valve Armature Assembly, etc.

Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing

Welcome to your any question and inquiry!
