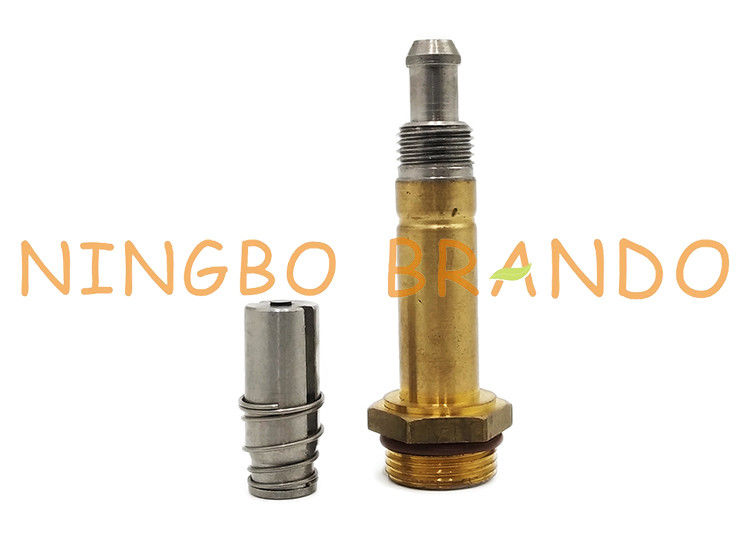

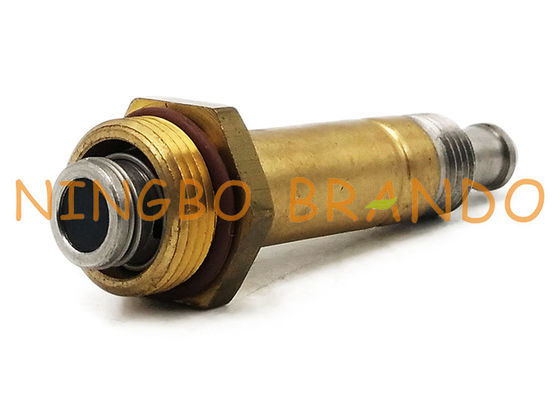

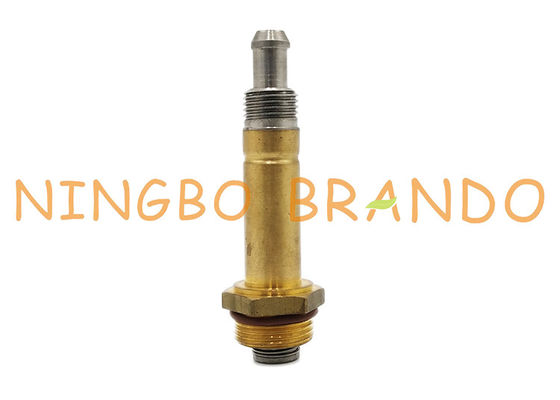

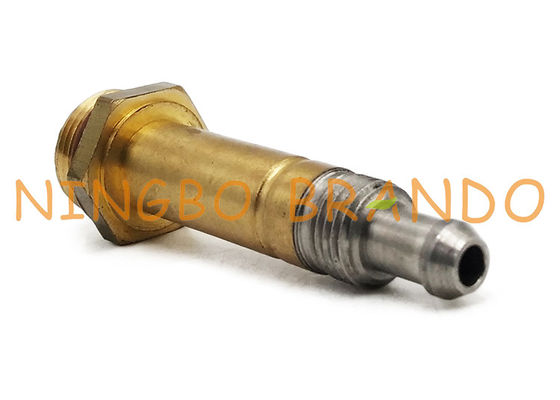

3/2 Way 9.9mm OD NC Brass Plunger Tube Thread Solenoid Valve Armature

3/2 Way 9.9mm OD NC Brass Plunger Tube Thread Solenoid Valve Armature

Starting current and holding current

When the AC electromagnet voltage is constant, although the size of the exciting current is related to the resistance of the coil, it is mainly affected by the stroke. The stroke is large, the magnetic resistance is large, and the excitation current is also large. The current at the maximum stroke is called the starting current, and the current at the time of suction is called the holding current, also called the excitation current. In a large electromagnet, the starting current can reach more than 10 times the holding current. The starting current of a small electromagnet can also reach 2 to 4 times the holding current. If the moving iron core is stuck and the starting current continues to flow, the coil will heat up and even be burned. The solenoid pilot valve with small stroke is not easy to burn. The AC electromagnet should not be switched on frequently. The service life is not as long as the DC electromagnet.
When the voltage is constant, the coil current of the DC electromagnet only depends on the coil resistance, and has nothing to do with the stroke size. Therefore, the coil will not be burnt when the moving iron core is stuck. The DC electromagnet can be switched on and off frequently, and the work is safe and reliable. However, when the high voltage is connected incorrectly, the coil will still be burnt if the current is too large.

Brando provides customized solenoid armature services for various types of solenoid valves.

Our solenoid armature assembly has high quality, precise stroke control, long service life, and a full range of products, including 3/2-way, 2/2-way, normally open, normally closed, and threaded or flanged connection available.

Brando Solenoid plungers are available in numerous designs and have been tested to meet rigorous performance requirements for solenoid valves. These solenoid plungers can be utilized in various applications including, air and fluid power applications, heating and cooling system regulation units, industrial, and automotive applications.

Condition:New
Applicable Industries:Solenoid Valve
Type:Fittings
Place of Origin:Zhejiang, China
Brand Name:Brando
Guide Tube Outer Diameter:9.9mm
Installation Height for Coil Assembling:28.1mm
Plunger Seal for Orifice Diameter:5.6mm
Guide Tube Material:Brass
Seal Material:NBR
Mounting Type:Thread
Voltage:AC, DC All Available
Position and Way:3/2 Way
Non-working Status:Normally Close

Dimension of BAPC310029008 Armature Assembly:

Technical Data:

Product Features:

1. Fixed core and movable core (plunger):
Adopting rustproof and corrosion-resistant material with high magnetic conductivity and low remanence to ensure armature assembly durable and smart acting.

2. Guide tube (plunger tube):
Options of brass and stainless steel, grade of H62 or SUS304;
Wall thickness from range of 0.25~2.5mm, others could be customized;
Kinds of welding type to hold various working pressure, such as laser welding, argon-arc welding, silver soldering. Machining from entire solid bar directly is also available.

3. Spring:
Rustproof SUS304 stainless steel, with good performance of restore.

4. Seals:
Options of NBR, HNBR, FKM, EPDM, PTFE, food grade materials, welcome your other requirements.

5 Shading ring:
Cooper and silver material available.

6. Washer and retaining nut provided if has demands.

More Solenoid Valve Armature Assembly for you to choose:

*According to tube OD: 5-7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm, 15mm, 16mm, 17mm, Up to 60mm.

*According to tube material: Brass, Stainless Steel

*According to valve application:

1. Pulse Solenoid Valve Armature Assembly, 2. Water Solenoid Valve Armature Assembly, 3. Pneumatic Solenoid Valve Armature Assembly, 4. Refrigeration Solenoid Valve Armature Assembly, 5. Injector Rail Armature Assembly, 6. Air-Jet Loom Solenoid Valve Armature Assembly, 7. House Appliances Solenoid Valve Armature Assembly, 8. Automobile Solenoid Valve Armature Assembly, 9. Medical Solenoid Valve Armature Assembly, etc.

Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing

Welcome to your any question and inquiry!
