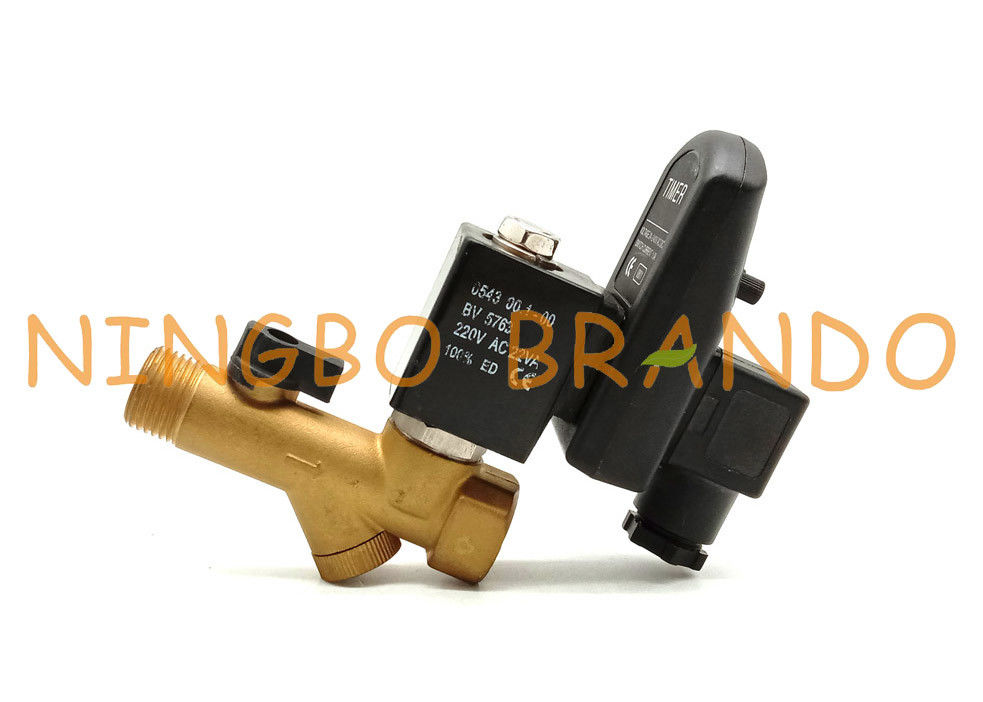

1/4'' 1/2'' Timed Automatic Drain Valve For Air Compressor 220V

1/4'' 1/2'' Timed Automatic Drain Valve For Air Compressor 220V

The COMBO automatic drain valve is unique in the fact that the solenoid valve has an integrated ball valve strainer. The COMBO offers all the advantages of a timer controlled drain and in addition has the protection of a mesh strainer, preventing large particles from blocking the valve orifice. The unit can be shut off from the compressed air system enabling safe maintenance work to be carried out.

Benefits:

1. Compressed air systems up to any size
2. Large/high discharge capacity (max 1,000 ltr/hour)
3. Does not air-lock during operation
4. Suitable for all types of compressors
5. TEST (micro-switch) feature
6. Dual thread inlet (1/2" & 1/4")
7. 1 year warranty

Advantages:

1. Bright lights for clearer indication of operating status.
2. Mounting Positions- Horizontally or Vertically
3. Direct operated valve - not diaphragm type
4. The direct acting valve is serviceable
5. Large (4.0 mm/0.16 in) valve orifice
6. Medium pressure up to 300 psi (up to 500 psi available)

Main Dimension of Air Compressor Automatic Drain Valve:

Application Examples from customer feed back:

Air Compressor Automatic Drain Valve Spare Parts:

              Solenoid Valve Timer                              Solenoid Valve Coil                           Solenoid Valve Armature
