Water Purifier 1/4'' Male Thread Quick Connect Push In Fit RO Fittings

Water Purifier 1/4'' Male Thread Quick Connect Push In Fit RO Fittings

Applications
1. Reverse Osmosis Systems
2. Drinking Water Filtration Systems
3. Water Coolers
4. Coffee Machines
5. RVs
6. Misting Systems
7. Point-of-Use Filtration Systems
8. Beverage Dispensers
9. Ice Makers

Food-Grade Quality
* Our fittings are produced with food-grade material and can be used in food and drinking water applications.

Portable Water Applications.
* Our fittings are suitable for potable water applications with a maximum chlorine concentrate of 4 ppm.
* Direct exposure to sunlight will reduce fittings’ service life and may lead to failure.
* All fittings and tubing should not be used near heart emitting appliances.
* For cold water applications only.

Installation and Testing
* Fittings and tubing installations should be inspected by pushing and pulling on the connection points and be pressure-tested prior putting into service.
* Fittings should not be exposed to excessive side loads and caution should be taken to prevent undue stress and excessive side loading.

Union Tee RO Fittings Each Port Size Option:

Picture	Union tee adapter made of food grade pom material, and assembled with EPDM orings
	Part No.	Tube OD (A)	Tube OD (B)	Tube OD (C)
	BF009-A	1/4	1/4	1/4
	BF009-B	1/4	1/4	3/8
	BF009-C	1/4	3/8	1/4
	BF009-D	1/4	3/8	3/8
	BF009-E	3/8	3/8	3/8
	BF009-F	3/8	1/4	3/8
	BF009-G	5/16	5/16	5/16
	BF009-H	5/16	1/4	1/4
	BF009-I	5/16	1/4	5/16
	BF009-J	5/16	5/16	1/4
	BF009-L	1/4	5/16	1/4

Straight Push in Fit RO Fittings Each Port Size Option:

Picture	Push in fit straight adapter
	Part No.	Tube OD (A)	Tube OD (B)
	BF006-A	1/4	1/4
	BF006-B	1/4	3/8
	BF006-C	3/8	3/8
	BF006-D	5/16	5/16
	BF006-E	5/16	1/4
	BF006-F	5/16	3/8

L Shape Push In Fit RO Fittings Each Port Size Option:

Picture	L shape push fit elbow plastic fast fitting
	Part No.	Tube OD (A)	Tube OD (B)
	BF004-A	1/4	1/4
	BF004-B	1/4	3/8
	BF004-C	3/8	3/8
	BF004-D	5/16	5/16
	BF004-E	5/16	5/16
	BF004-F	5/16	5/16

Male Tee RO Fittings Each Port Size Option:

Picture	Male Tee Adapter for reverse osmosis water treatment system
	Part No.	Tube OD (A)	Tube OD (B)	Tube OD (C)
	BF007-A	1/4	1/4	1/4
	BF007-B	1/4	3/8	1/4
	BF007-C	1/4	1/4	3/8
	BF007-D	1/4	3/8	3/8
	BF007-E	3/8	3/8	3/8
	BF007-F	3/8	1/4	3/8

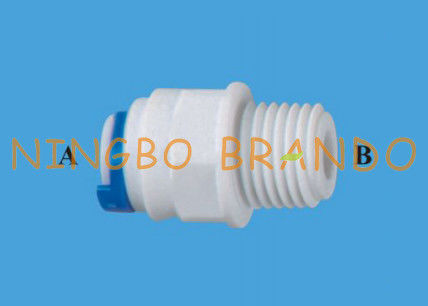

Picture	Water Pipe Fitting Male Thread to Fast Fitting Straight Plastic Adapter
	Part No.	Tube OD (A)	Tube OD (B)
	BF012-A	1/4	1/4
	BF012-B	1/4	3/8
	BF012-C	3/8	3/8
	BF012-D	3/8	1/4
	BF012-E	5/16	1/4

Two Way Splitter RO Fittings Each Port Size Option:

Picture	Two Way Splitter
	Part No.	Tube OD (A) (Inlet tube)	Tube OD (B) (Outlet tube)	Tube OD (C) (Outlet tube)
	BF017-A	1/4	1/4	1/4
	BF017-B	3/8	3/8	3/8
	BF017-C	3/8	1/4	1/4

More RO Solenoid Valves For you to choose:

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
