18mm MPM DIN 43650 Form A DIN 43650A Solenoid Coil Connector

18mm MPM DIN 43650 Form A DIN 43650A Solenoid Coil Connector

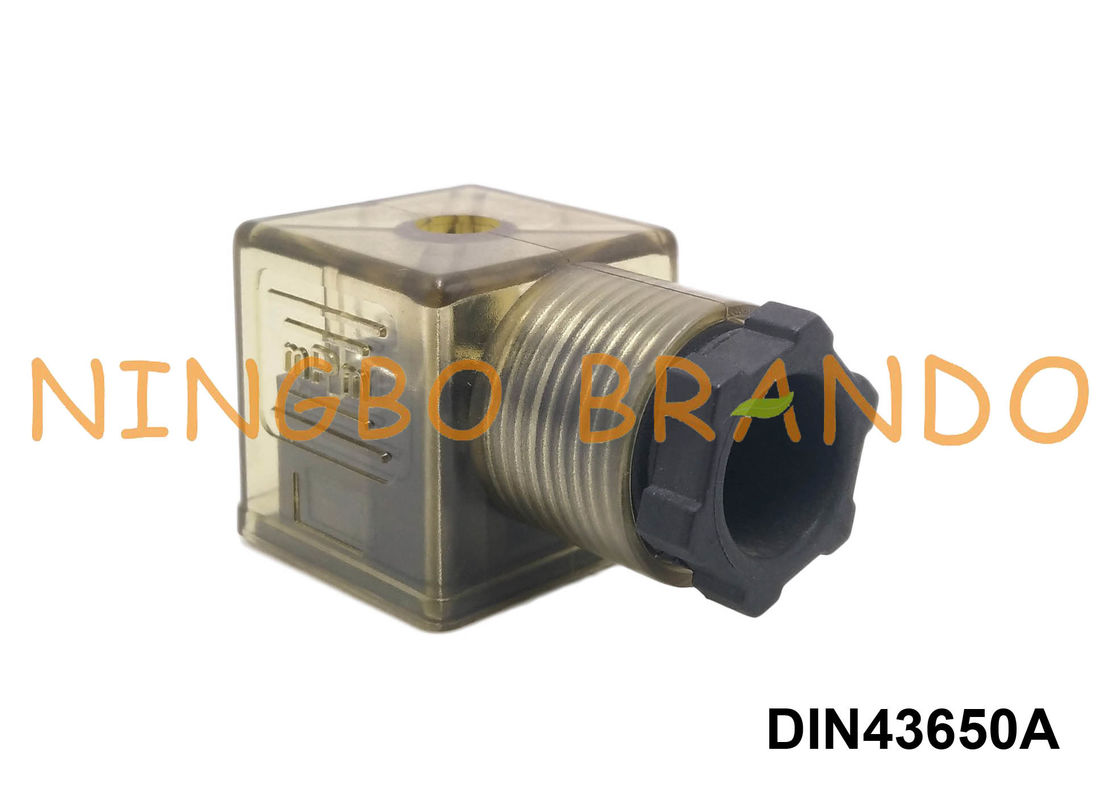

DIN 43650 Form A connectors are classified by three "U" shaped pins facing inwards and the 18 mm measurement between the pins.

Form A DIN connectors are mostly used with solenoid valves for a secure and water resistant method for applying power. The Din 43650 connectors are found in hydraulics and pneumatics applications as well as pressure sensors and switches, optical, limit and proximity switches, and marine applications.

Form A male connectors are be either 2 + ground or 3 + ground, and are mostly panel mount or for molding. The hardwired Form A connectors feature PG 9 or PG 11 cable entries, as well as 1/2" NPT for conduit. The HTP hardwired connectors have a removable unified grommet to accommodate a 5-10 mm range of cable. DIN 43650 Form A connectors with molded cable are 3 + ground or 2 + 2 ground and can come with 1, 2, 3, 5 or 10 meter cable lengths. Circuited versions of the hardwired and molded connectors have options including an LED indicator to confirm the voltage supply and MOV surge suppression or diodes to give overvoltage protection to the source and load. The M12 DIN connectors are fitted to an M12 receptacle or molded cable plug, with circuit options available. Various Form A DIN 43650 connectors can also have more specialized circuits, including features such as Z-diodes to redirect surges, RCs to absorb & discharge surges, bridge rectifiers to convert AC to DC, and switching amplifiers to control the output.

Dimension & Data of Solenoid Coil Connector:

DIN 43650A Connector:

Dimension	DIN Type	DIN 43650 Form A
	Distance	18mm
	Form	2+1GND, 3+1GND
	Protection Class	IP65
	Working Voltage	AC380V, DC300V
	Fixing Screw	M3x28
	Nomical Current	10A
	Contact Resistance	≤5mΩ
	Max Conductor Section	3x1.5mm²

DIN 43650B Connector:

Dimension	DIN Type	DIN 43650 Form B
	Distance	11mm
	Form	2+1GND, 3+1GND
	Protection Class	IP65
	Working Voltage	AC380V, DC300V
	Fixing Srew	M3x30
	Nomical Current	10A
	Cntact Resistance	≤5mΩ
	Max Conductor Section	3x1.5mm²

DIN 43650C Connector:

Dimension	DIN Type	DIN 43650 Form C
	Distance	9.4mm
	Form	2+1GND, 3+1GND
	Protection Class	IP65
	Working Voltage	AC380V, DC300V
	Fixing Screw	M3x25
	Nomical Current	10A
	Cntact Resistance	≤5mΩ
	Max Conductor Section	3x1.5mm²

FAQ:

What is the advantages to use DIN Connector?

Instead of using the Grommet lead wires, the coil has the prongs or pins to connect a standard DIN connector. Therefore, the coil will have a male connection and the plug connecting to the coil is a female connector. The advantages of the DIN Connector is that it allows a quick valve or coil exchange. Yet it is a excellent insulation properties and good for water tightness.

What are DIN 43650 solenoid connectors used for?
DIN 43650 solenoid connectors are suitable for use in varied industrial applications such as machine building and tooling or equipment manufacture. Other applications include facilitating power and signal transmission in magnetic valves, temperature sensors and pressure transducers.
