CA25T CA25T010-300 1'' Goyen Type Right Angle Pulse Jet Valve 220V

CA25T CA25T010-300 1'' Goyen Type Right Angle Pulse Jet Valve 220V

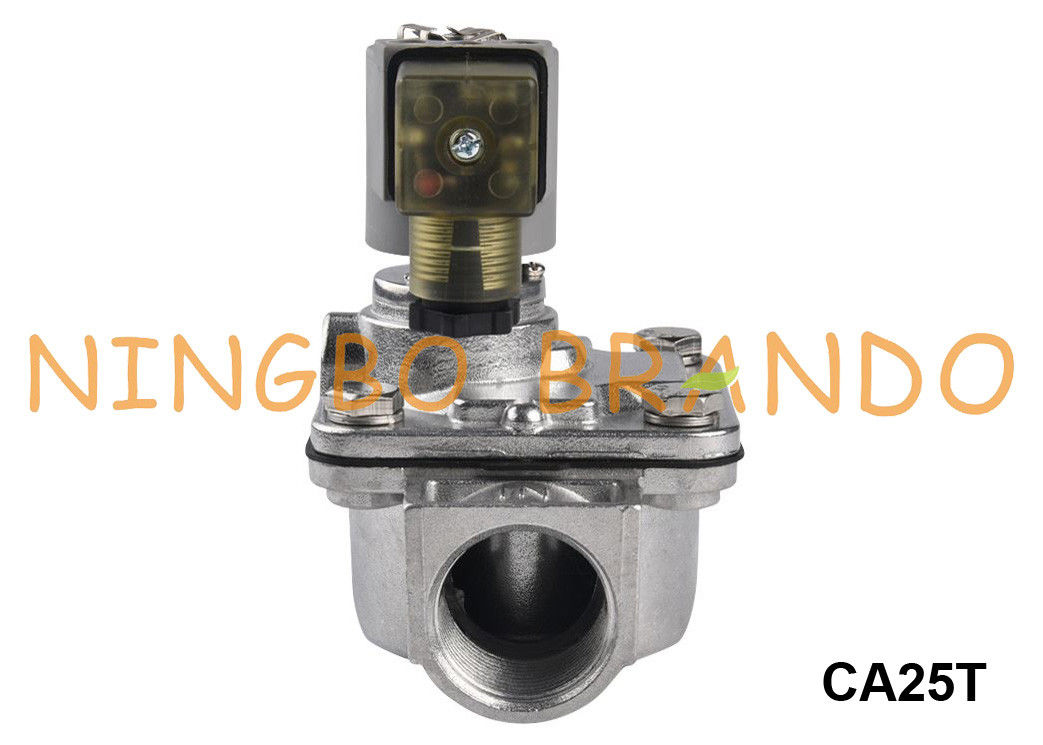

This is CA25T Goyen Type Pulse Jet Valve; Reference No: CA25T000, CA25T001, CA25T010, CA25T000-300, CA25T001-300, CA25T010-300, CA25T000-305, CA25T001-305, CA25T010-305, CA25T000-331, CA25T001-331, CA25T010-331. Thread port connection; NBR diaphragm; 24V DC, 220V AC (50/60Hz) voltages for you to choose; other voltages can be customized.

Pulse Jet valves are also called as dust collector.They are indirect type solenoid valves.When the solenoid of pulse jet valves gets energized, air trapped in the diaphragm is exhausted causing pressure difference in the diaphragm.Then the diaphragm is suddenly opened.When it is de-energized,airpasses through the hole to the chamber which can balance the air pressure and close the valve.The opening and closing of the valve are done very fast for flter cleaning and consumption of compressed air effectively. Our offered pulse jet valves are wellknown for their reliability, durability, effective operation, compact size, efficient controls, and power saving characteristics.

Dimension of CA25T Goyen Type Pulse Jet Valve:

Video of CA25T Goyen Type Pulse Jet Valve:

Technical data of Right Angle Pulse Jet Valves:

More Goyen Type Pulse Valve For You to Choose:

       Threaded Type                   Immersion Type                Dresser Nut Type             Flanged Type

          RCA Series                          Solenoid Coil                Armature Assembly            Pulse Controller

Working Principles:

The electromagnetic pulse valve is composed of electromagnetic pilot operator, diaphragm and valve body. Due to difference of pressure acting on two sides of the diaphragm, the diaphragm is pressed closely against the outlet of valve to keep the valve stays in “closed” position.

When energized by an electric signal from the controller, the electromagnetic armature will move to open the discharge opening of back cavity.

The compressed air in back cavity bursts out to relief pressure and pressurized air in front cavity pushes up the diaphragm to open the main outlet of valve, then the electromagnetic pulse valve opens and starts to blow.

When the signal disappears and the spring works immediately to send the pilot operator back to its original position and close the discharging opening. The diaphragm will close the passage by the effect of the pressure in the front cavity and the spring. The pulse valve stops blowing.

The orifice in the diaphragm damps the airflow when the armature is lifting up for releasing the pressure. When the discharge hole closed, the pressure gas will fill into the front cavity to close the passage by the diaphragm. The pulse valve stops blowing.
