| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE |
| Model Number: | 4V230C-08 |
| Minimum Order Quantity: | 200 PCS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | inner boxes,cartons,pallets |
| Delivery Time: | Negotiation |
| Payment Terms: | T/T, PayPal, Western Union |
| Supply Ability: | 100000 pcs per month |
| Port Size: | In=Out=1/4'' Exhaust=1/8'' | Valve Type: | Double Solenoid 5 Port 3 Position |
|---|---|---|---|
| Voltage: | 220VAC 110VAC 24VDC 12VDC | Connector: | Terminal & Grommet |
| Working Pressure: | 0.15 To 0.8MPa(21-114psi) | Temperature: | -20 To +70℃ |
| Max. Frequency: | 5 Cycle/sec | Body Material: | Aluminum Alloy |
| Fluid: | Air (to Be Filtered By 40 μm Filter Element) | Application: | Automation |
| Highlight: | 4V230C-08 Pneumatic Solenoid Valve,5/3 Way Pneumatic Solenoid Valve,4V230C-08 Air Control Valve |
||

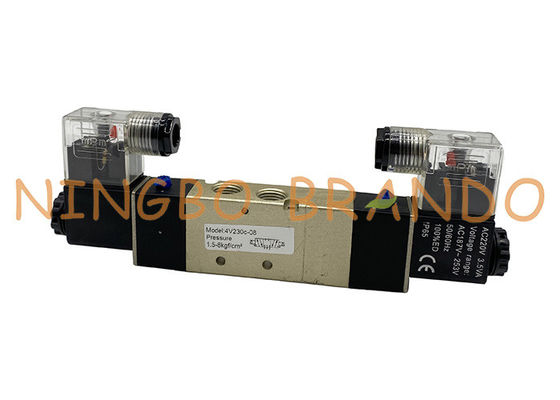

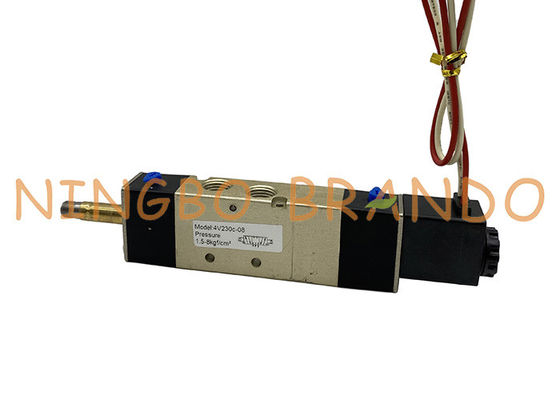

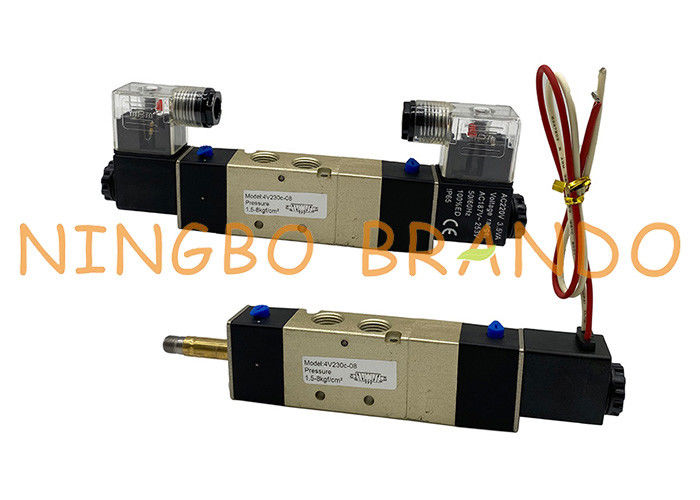

4V230C-08 5/3 Way 1/4'' Terminal Grommet Pneumatic Air Solenoid Valve
5/3 Way Pneumatic Solenoid Valve:
Solenoid valves are an efficient method of converting electrical signals into pneumatic functions. Applying electricity to the solenoid quickly directs air through the valve and into the circuit.
Valves can be designated as internally piloted or externally piloted. Externally piloted valves use an external source of air pressure. Internally piloted use an internal source of air pressure.
Solenoid valves are controlled by the action of the solenoid and typically control the flow of water or air as a switch. If the solenoid is active (current is applied), it opens the valve. If the solenoid is inactive (current does not exist), the valve stays closed.
Technical Data:
|
Model
|
4V210-06
4V220-06
|
4V230C-06
4V230E-06
4V230P-06
|
4V210-08
4V220-08
|
4V230C-08
4V230E-08
4V230P-08
|
|
Fluid
|
Air(to be filtered by 40 μ m filter element)
|
|||
|
Acting
|
Internal pilot or external pilot
|
|||
|
Port Size
|
In=Out=Exhaust=1/8''
|
In=Out=1/4'' Exhaust=1/8''
|
||
|
Orifice Size
|
25.00 mm2 (Cv=0.78)
|
18.00 mm2 (Cv=0.67)
|
30.00 mm2 (Cv=0.89)
|
18.00 mm2 (Cv=0.67)
|
|
Valve Type
|
5 port 2 position
|
5 port 3 position
|
5 port 2 position
|
5 port 3 position
|
|
Operating Pressure
|
0.15~0.8MPa (21~114psi)
|
|||
|
Proof Pressure
|
1.5MPa (215psi)
|
|||
|
Temperature ℃
|
-20~70
|
|||
|
Material of Body
|
Aluminum alloy
|
|||
|
Max. frequency
|
5 cycle/sec
|
3 cycle/sec
|
5 cycle/sec
|
3 cycle/sec
|
Dimension Diagram:
4V230(Grommet)
4V230(Terminal)
