| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE |
| Model Number: | 4V330C-10 |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiation |
| Packaging Details: | inner boxes,cartons,pallets |
| Delivery Time: | Negotiation |
| Payment Terms: | T/T, PayPal, Western Union |
| Supply Ability: | 100000 pcs per month |
| Port Size: | In=Out=3/8'' Exhaust=1/4'' | Valve Type: | Double Solenoid 5 Port 3 Position |
|---|---|---|---|
| Voltage: | 220VAC 110VAC 24VDC 12VDC | Connector: | Terminal & Grommet |
| Working Pressure: | 0.15 To 0.8MPa(21-114psi) | Temperature: | -20 To +70℃ |
| Max. Frequency: | 5 Cycle/sec | Body Material: | Aluminum Alloy |
| Fluid: | Air (to Be Filtered By 40 μm Filter Element) | Application: | Automation |
| Highlight: | 4V330C-10 Pneumatic Solenoid Valve,5/3 Way Pneumatic Solenoid Valve,4V330C-10 Air Control Valve |
||

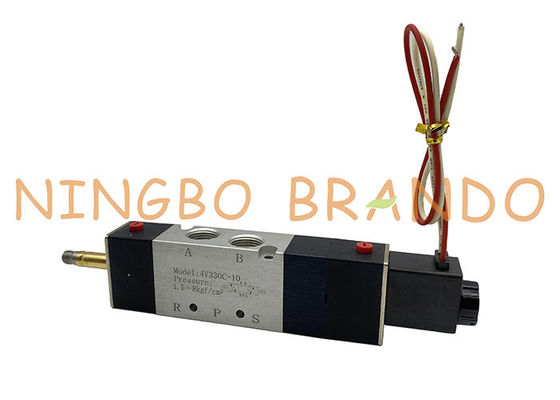

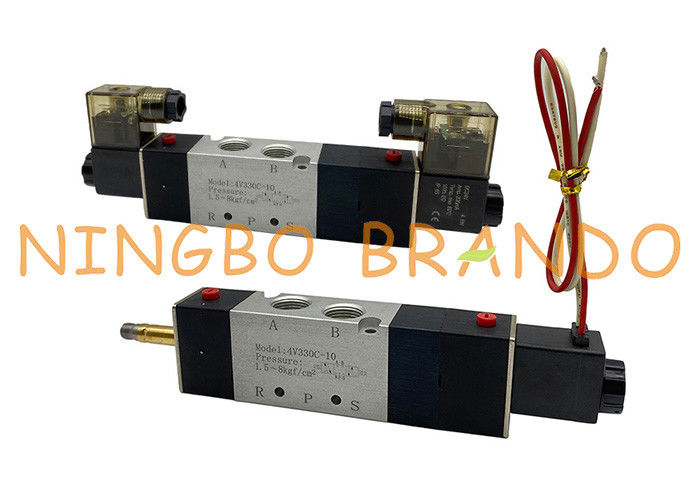

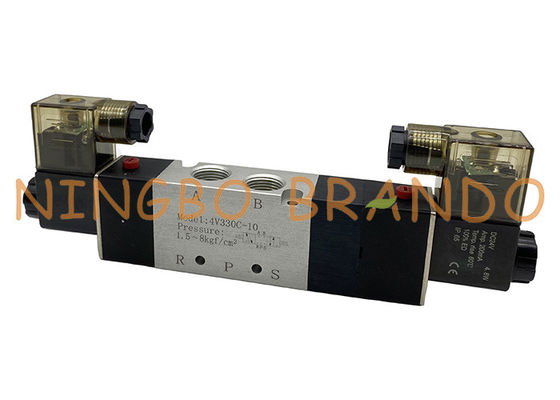

4V330C-10 3/8 Inch 5/3 Way Double Solenoid Pneumatic Air Control Valve
Installation instructions of 5/3-way pneumatic solenoid valve:
1. Before installation, please ensure that the valve is not damaged due to transportation.
2. It is recommended to use a medium lubricated by a 40 m filter element. Note flow direction and port size.
3. Please pay attention to whether the installation conditions meet the technical requirements (such as "voltage", "starting frequency", "working pressure" and "operating temperature range") before installing and using the equipment.
4. Pay attention to the direction of air flow during installation. P is the inlet, A (B) is the working outlet and R (S) is the exhaust outlet.
5. Take steps to avoid vibration and freezing.
6. Make sure the fittings and pipes are clean before using them. When connecting to fittings, make sure that the PTFE thread sealing tape is used correctly.
7. To prevent dust from entering, use a muffler at the exhaust. When disassembling, do not forget to install dust cover at inlet and outlet.
8. After installation, please test the valve by manually operating the valve first.
Technical Data:
|
Model
|
4V310-08
4V320-08
|
4V330C-08
4V330E-08
4V330P-08
|
4V310-10
4V320-10
|
4V330C-10
4V330E-10
4V330P-10
|
|
Fluid
|
Air(to be filtered by 40 μ m filter element)
|
|||
|
Acting
|
Internal pilot or external pilot
|
|||
|
Port Size
|
In=Out=Exhaust=1/4''
|
In=Out=3/8'' Exhaust=1/4''
|
||
|
Orifice Size
|
25.00 mm2 (Cv=1.40)
|
18.00 mm2 (Cv=1.00)
|
30.00 mm2 (Cv=1.68)
|
18.00 mm2 (Cv=1.00)
|
|
Valve Type
|
5 port 2 position
|
5 port 3 position
|
5 port 2 position
|
5 port 3 position
|
|
Operating Pressure
|
0.15~0.8MPa(21~114psi)
|
|||
|
Proof Pressure
|
1.5MPa(215psi)
|
|||
|
Temperature ℃
|
-20~70
|
|||
|
Material of Body
|
Aluminum alloy
|
|||
|
Max. frequency
|
4 cycle/sec
|
4 cycle/sec
|
4 cycle/sec
|
4 cycle/sec
|
Dimension Diagram:
4V320(Grommet)
4V320(Terminal)
Brando Supply:
1.Solenoid Valve:
Pulse Jet Valve: Goyen Type Pulse Jet Valve, SBFEC Type Pulse Jet Valve, ASCO Type Pulse Jet Valve , Turbo Type Pulse Jet Valve.
Direct Acting Solenoid Valve:Brass Solenoid Valve, Stainless Steel Solenoid Valve, Plastic Solenoid Valve and etc.
Refrigeration Solenoid Valve:Castel Type Solenoid Valve, Danfoss Type Solenoid Valve.
2.Repair Kit:Solenoid Coil, Solenoid Armature/Stem, Diaphragm Repair Kit and etc.
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
Contact Person: Mr. Brandon Bao
Tel: 86-13454729544
Fax: 86-574-83879820
