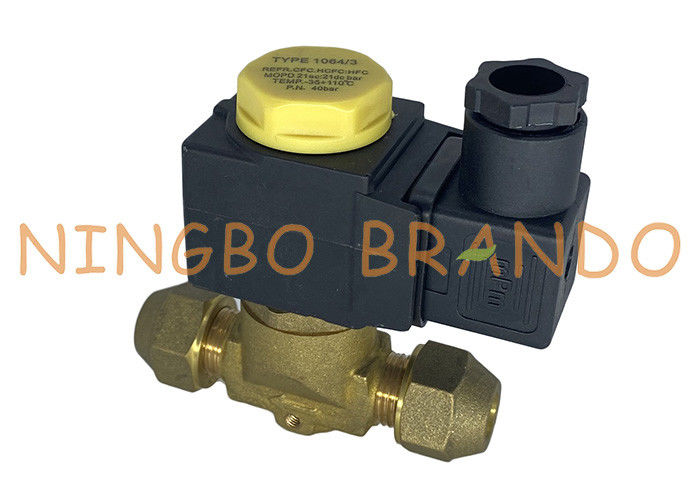

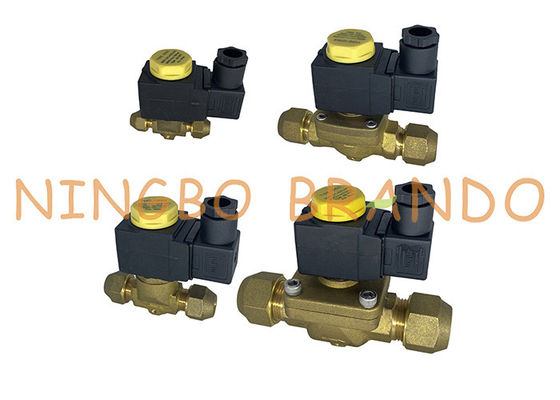

1064/3 3/8'' SAE Diaphragm Pilot Operated Refrigeration Solenoid Valve

1064/3 3/8'' SAE Diaphragm Pilot Operated Refrigeration Solenoid Valve

Technical Data:

Dimension:

Replacement Castel Type Solenoid Coil:

Castel Refrigeration Solenoid Valve Application In resh-keeping cabinet
The structure of the rolling compressor of the fresh-keeping cabinet is mainly composed of a motor, a rolling piston, an eccentric shaft, a sliding piece, a spring, an air suction hole, an exhaust valve piece, etc. (no suction valve piece).

The slider of the fresh-keeping cabinet is equal in height to the cylindrical rotor, the cylinder height is slightly higher than the rotor, the cylinder head is covered with a cylinder head, and there is a certain gap between the piston end surface and the cylinder head plane, so that the piston and the slider can be freely in the cylinder. Movement, there are suction and exhaust holes on the cylinder block on both sides of the cylinder groove, the suction hole has no suction valve, and the refrigerant vapor directly enters the suction hole of the cylinder from the steam pipe. In order to prevent liquid blow, a gas-liquid separator is arranged on the suction pipe; an exhaust valve is arranged on the exhaust port, and the gas in the cylinder is discharged into the casing, so that the inside of the casing is a high-pressure gas zone, and then the high-pressure gas is further composed of a shell. The body enters the exhaust passage.

Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing

Welcome to your any question and inquiry!
