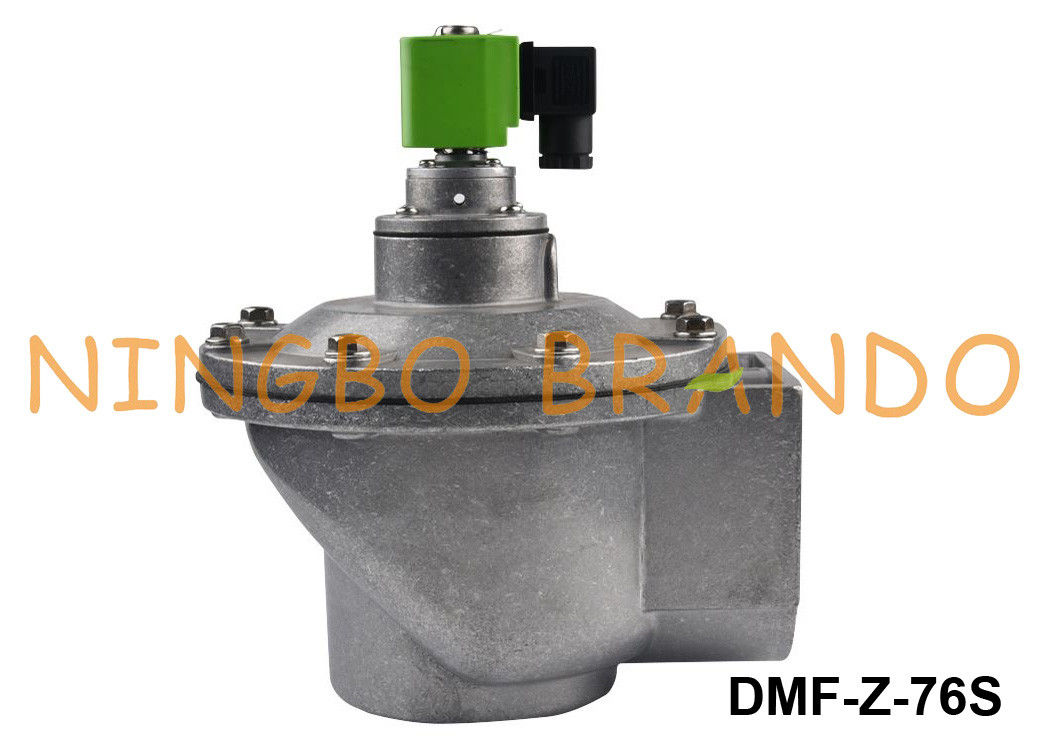

3'' DMF-Z-76S SBFEC Type Solenoid Pulse Jet Valve For Bag Filter

3'' DMF-Z-76S SBFEC Type Solenoid Pulse Jet Valve For Bag Filter

OPERATION:
Pulse jet valve is either operated by internal solenoid operator or remote pilot solenoid valve. When the pilot solenoid valve is energised, the air trapped above the diaphragm is quickly exhausted through the pilot solenoid valve causing very fast opening of the main valve. When the pilot solenoid valve is de­ energised air supplied through the bleed hole is trapped above the diaphragm, causing to close the valve.

CONSTRUCTION :
The pulse jet valve body and cover are made out of aluminum alloy castings. The diaphragm and sealing components are made of nitrile rubber. Pipe connection suitable for 3/4'' to 3''. Operating pressure 0.3 to 0.8MPa.

Technical Data of  Z series Right Angle Pulse Jet Valves:

Tips: All related accessories are also sold, like Pulse Controller, Diaphragm Repair Kit, Solenoid Valve Coil and Solenoid Valve Armature Assembly.

Dimension of DMF-Z-76S BFEC Pulse Jet Valve:

Video of BFEC DMF-Z-76S Pulse Jet Valve:

More BFEC Pulse Valve For You to Choose:

           Right Angle Type                         Quick Mount Type                         Submerged Type

            Diaphragm                     Solenoid Coil                  Armature Assembly            Pulse Controller
