| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE |
| Model Number: | DMF-Y-40S |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiation |
| Packaging Details: | inner boxes,cartons,pallets |
| Delivery Time: | Negotiation |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100000 pcs per month |
| Type: | Full Immersion Diaphragm Valve | Power: | Solenoid |
|---|---|---|---|
| Media: | Air | Port Size: | 1-1/2''Inch |
| Structure: | Diaphragm | Body Material: | Aluminum Alloy |
| Diaphragm Material: | NBR(Common), FKM(Available) | Number Of Diaphragm: | 2 |
| Pressure: | 0.1 To 0.8MPa | Temperature: | -25 To +80℃ |
| Highlight: | 1-1/2'' SBFEC Type Pulse Jet Valve,Dust Collector Pulse Jet Valve,DMF-Y-40S Embedded Type |
||

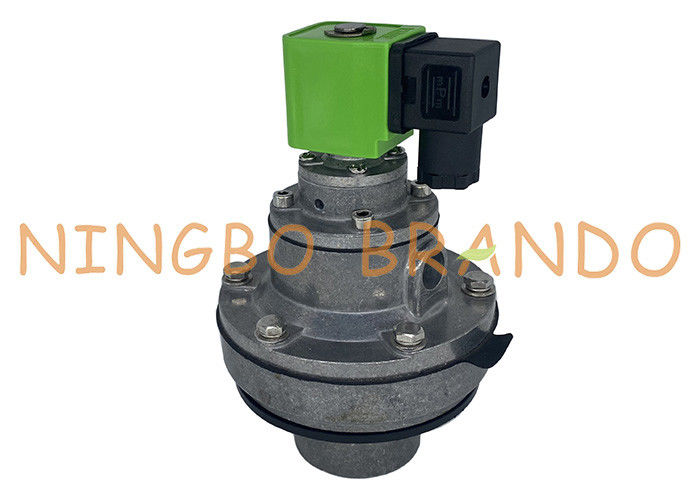

1-1/2'' SBFEC Type DMF-Y-40S Dust Collector Pulse Valve
Feature of DMF-Y-40S:
1.The 1.5'' Inch is a double diaphragm valve.
2.The Submerged Pulse valve draws the compressed air directly from the header tank, leading to improved pneumatic performance.
3.The pulse diaphragm valves are especially designed for dust collector service applications, combining high flow, long life and extremely fast opening and closing to produce reliable and economical operation
4.Cast with high quality aluminum alloy, the valve is durable for long term use.
5.The design with integral compression fittings will facilitate installation because there is no need for threaded piping
6.Easy to install and maintain, sustainable in use.
Technical Data of SBFEC Type DMF Series Submerged Pulse Jet Valve:
|
Model number
|
DMF-Y-25
|
DMF-Y-40S
|
DMF-Y-50S
|
DMF-Y-62S
|
DMF-Y-76S
|
DMF-Y-102S
|
|
Port sizes
|
G1''
|
G1 1/2''
|
G2''
|
G2 1/2''
|
G3''
|
G4''
|
|
Membrane sizes
(φ66 smaller)
|
φ96
|
φ112
|
φ160
|
φ188
|
φ202
|
φ255
|
|
CV values
|
30.53
|
53.47
|
71.47
|
150.85
|
186.66
|
313.09
|
|
Blowing area
(m2)
|
8-10
|
12-16
|
18-28
|
27-38
|
37-65
|
70-90
|
|
Weight
(kg)
|
0.75
|
1.2
|
2.35
|
3.2
|
4.05
|
5.65
|
|
Environment Temperature
|
-25℃ to +80℃
|
|||||
|
Relative Humidity
|
≤85%
|
|||||
|
Working Medium
|
Clean Air
|
|||||
|
Protection Class
|
IP65
|
|||||
|
Service Life
|
Over one million times
|
|||||
|
Voltage
|
DC24V, AC24V, AC110V, AC220V
|
|||||
Main Dimension:
BFEC DMF Series Pulse Jet Valve For Dust Collector System:
|
Thread Valve
|
3/4''
|
1''
|
1.5''
|
2''
|
2.5''
|
3''
|
4''
|
|
DMF-Z-20
|
DMF-Z-25
|
DMF-Z-40S
|
DMF-Z-50S
|
DMF-Z-62S
|
DMF-Z-76S
|
DMF-Z-102S
|
|
|
Quick Mount Valve
|
3/4''
|
Inlet φ27
|
1''
|
1.5''
|
|||
|
DMF-ZM-20
|
DMF-ZL-B
|
DMF-ZM-25
|
DMF-ZM-40S
|
||||
|
Flange Valve
|
1''
|
1.5''
|
|||||
|
DMF-ZF-25
|
DMF-ZF-40S
|
||||||
|
Embedded Valve
|
1''
|
1.5''
|
Outlet φ62mm
|
Outlet φ75
|
Outlet φ89
|
Outlet φ114
|
Outlet φ102
|
|
DMF-Y-25
|
DMF-Y-40S
|
DMF-Y-50S
|
DMF-Y-62S
|
DMF-Y-76S
|
DMF-Y-102S
|
DMF-Y-102SA
|
|
