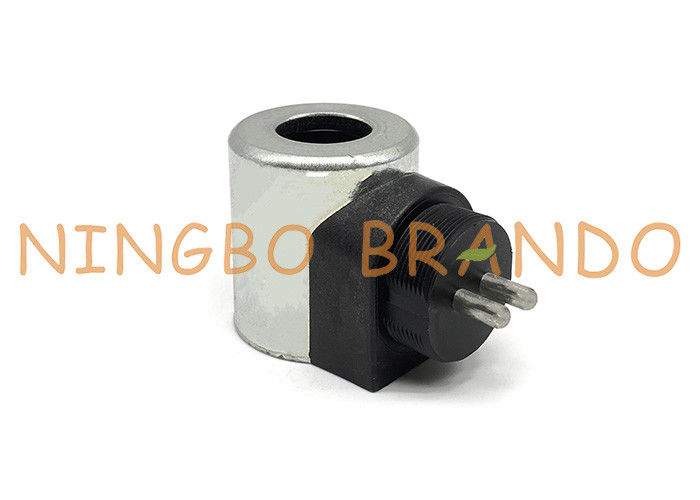

HYDAC Type Kostal Connector 2-pole 12V DC 3003133 12DK-40-1836 Hydraulic Coil

 HYDAC Type Kostal Connector 2-pole 12V DC 3003133 12DK-40-1836 Hydraulic Coil

This 3000249 / 3003138 Hydraulic Solenoid Coil is an important accessory for WSM06020 Hydac Electro Valve. According to the working principle of the electromagnet, when the solenoid reversing valve spool is stuck, the armature cannot be moved into position after the electromagnet is energized. At this time, the coil temperature will rise sharply and it will easily lead to burning in a short time. Most of the valve coil failures. Therefore, in the actual maintenance, if the coil burns out, first check whether the work of the solenoid valve is smooth. After removing the fault such as the valve plug, replace the new coil, otherwise the coil may still be burnt after replacement. The inner diameter and length of the coil replaced by the electromagnetic reversing valve must be the same as the original product, otherwise it cannot be used.

Technical data of HYDAC Type  Hydraulic Solenoid Coils:

Overall dimension of Hydraulic Solenoid Coils:

Brando offers a wide range of solenoid valve coils, which designed into various types, mainly features encapsulated coils, including thermoplastic and thermosetting. Our coils have the characteristics of High Performance, High Reliability and Long Service Life, can be used for Different Applications. We also provide excellent Customized Service.

Solenoid Coil Main Features:

1. Heat resistant bobbin moulded with thermoplastic polyester material;
2. High quality Enameled copper wire, F, H, N different insulation class for choose;
3. Built-in magnetic yoke, made by low carbon iron;
4. Encapsulation with high quality specially designed thermosetting & thermoplastic material.

Solenoid Coil Main Structure:

The conventional structure of a solenoid valve coil includes: Framework, Enameled copper wire, PIN, Yoke and Encapsulation. In addition, according to the actual use, there will be a magnetizing guide ring, a rectifier bridge be used for rectifying, etc.

Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
