Minimum Order Quantity:	1 pc
Price:	Negotiation
Packaging Details:	Individual box, Carton, Pallet
Delivery Time:	Negotiation
Payment Terms:	T/T, PayPal, Western Union
Supply Ability:	200000 pcs per month

Type:	5/3 Way, Double Solenoid	Port Size:	M5, 1/8'', 1/4'', 3/8'', 1/2''
Pressure Range:	0.15 To 0.8MPa (21 To 114PSI)	Max Pressure Resistance:	1.5MPa (215PSI)
Body Material:	Aluminum Alloy	Max. Frequency:	5 Cycle / Second
4V100 Series:	4V130C-M5, 4V130C-06, 4V130E-M5, 4V130E-06, 4V130P-M5, 4V130P-06	4V200 Series:	4V230C-06, 4V230C-08, 4V230E-06, 4V230E-08, 4V230P-06, 4V230P-08
4V300 Series:	4V330C-08, 4V330C-10, 4V330E-08, 4V330E-10, 4V330P-08, 4V330P-10	4V400 Series:	4V430C-15, 4V430E-15, 4V430P-15
Highlight:	Pneumatic Solenoid Valve 5 Way 3 Position , Pneumatic Solenoid Valve 5/3 Way , Pneumatic Air Solenoid Valve

Model	4V110-06 4V120-06	4V130C-06 4V130E-06 4V130P-06	4V110-08 4V120-08	4V130C-08 4V130E-08 4V130P-08
Fluid	Air(to be filtered by 40 μ m filter element)
Acting	Internal pilot or external pilot
Port Size	In=Out=1/8''		In=Out=1/4''
Orifice Size	5.5 mm2 (Cv=0.31)	5.0 mm2 (Cv=0.28)	12.00 mm2 (Cv=0.67)	9.00 mm2 (Cv=0.50)
Valve Type	5 port 2 position	5 port 3 position	5 port 2 position	5 port 3 position
Operating Pressure	0.15~0.8MPa (21~114psi)
Proof Pressure	1.5MPa (215psi)
Temperature ℃	-20~70
Material of Body	Aluminum alloy
Max. frequency	5 cycle/sec	3 cycle/sec	5 cycle/sec	3 cycle/sec

Model	4V210-06 4V220-06	4V230C-06 4V230E-06 4V230P-06	4V210-08 4V220-08	4V230C-08 4V230E-08 4V230P-08
Fluid	Air (to be filtered by 40 μ m filter element)
Acting	Internal Pilot
Port Size	In=Out=Exhaust=1/8''		In=Out=1/4'', Exhaust=1/8''
Orifice Size	25.00 mm2 (Cv=0.78)	18.00 mm2 (Cv=0.67)	30.00 mm2 (Cv=0.89)	18.00 mm2 (Cv=0.67)
Valve Type	5 way 2 position	5 way 3 position	5 way 2 position	5 way 3 position
Working Pressure	0.15~0.8MPa (21~114psi)
Max. Pressure Resistance	1.5MPa (215psi)
Temperature	5~50 ℃
Material of Body	Aluminum Alloy
Max. frequency	5 cycle/sec

Model	4V310-08 4V320-08	4V330C-08 4V330E-08 4V330P-08	4V310-10 4V320-10	4V330C-10 4V330E-10 4V330P-10
Fluid	Air(to be filtered by 40 μ m filter element)
Acting	Internal pilot or external pilot
Port Size	In=Out=Exhaust=1/4''		In=Out=3/8'' Exhaust=1/4''
Orifice Size	25.00 mm2 (Cv=1.40)	18.00 mm2 (Cv=1.00)	30.00 mm2 (Cv=1.68)	18.00 mm2 (Cv=1.00)
Valve Type	5 port 2 position	5 port 3 position	5 port 2 position	5 port 3 position
Operating Pressure	0.15~0.8MPa(21~114psi)
Proof Pressure	1.5MPa(215psi)
Temperature ℃	-20~70
Material of Body	Aluminum alloy
Max. frequency	4 cycle/sec	4 cycle/sec	4 cycle/sec	4 cycle/sec

Model	4V410-15	4V420-15	4V430C-15	4V430E-15	4V430P-15
Fluid	Air (to be filtered by 40 μ m filter element)
Acting	Internal pilot or external pilot
Port Size	In=Out=Exhaust=1/2''
Orifice Size	50.00 mm² (Cv=2.79)		30.00 mm² (Cv=1.68)
Valve Type	5 port 2 position		5 port 3 position
Operating Pressure	0.15~0.8MPa (21~114psi)
Proof	1.5MPa (215psi)
Temperature ℃	-20 to 70
Material of Body	Aluminum alloy
Max. frequency	3cycle/sec

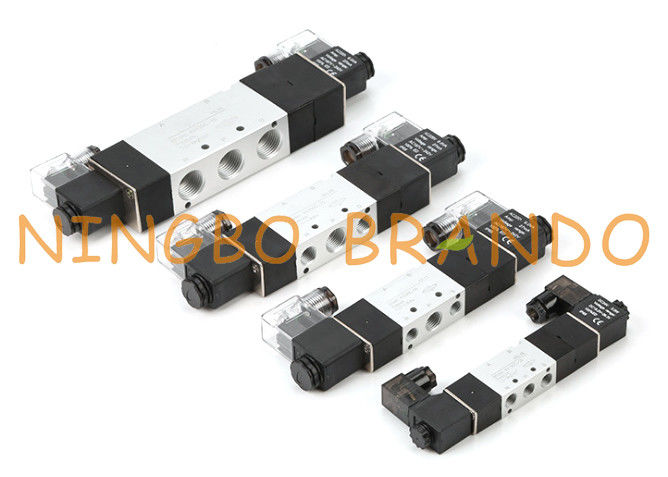

5/3 Way Pneumatic Double Solenoid Valve 5 Way 3 Position

Pneumatic Solenoid Valve 5 Way 3 Position
