| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE |
| Model Number: | 3V1-06 |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Individual box, Carton, Pallet |
| Delivery Time: | Negotiation |
| Payment Terms: | T/T, PayPal, Western Union |
| Supply Ability: | 200000 pcs per month |
| Fluids: | Air (to Be Filtered By 40 μ M Filter Element) | Action: | Direct Acting |
|---|---|---|---|
| Function: | 3 Way, Normally Closed (NC) | Orifice Size: | 1.0mm |
| Port Size: | 1/8'' | Pressure Range: | 0 To 0.8MPa |
| Max Pressure Resistance: | 1.2MPa | Body Material: | Aluminum Alloy |
| Max. Frequency: | 10 Cycle / Second | Voltage: | 12VDC, 24VDC, 110VAC, 220VAC |
| Highlight: | 3 Way Pneumatic Solenoid Valve,Airtac Pneumatic Solenoid Valve,Airtac 3V1-06-DC24V |
||

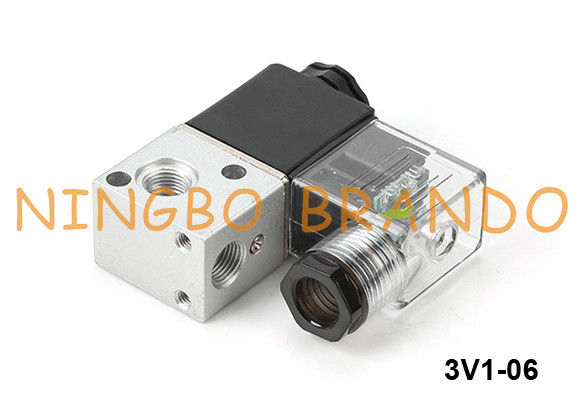

3V1-06-DC24V Airtac Type Pneumatic Solenoid Valve 3 Way 24V DC
Product description of 3V1 solenoid valve:
This 3V1 solenoid valve has a direct acting and normally closed type. Its direction changes flexibly. It can be used without lubrication. Multiple valves can be installed in one piece to save installation space. The manual equipment attached to this product is easy to install and commission. It has several standard voltage levels that are optional.
Technical Data of 3V1 Series Pneumatic Solenoid Valves:
| Model | 3V1-M5 | 3V1-06 | 3V1-08 |
| Medium | Air (to be filtered by 40 μ m filter element) | ||
| Action | Direct Acting | ||
| Way & Position | 3 Port 2 Position | ||
| Port Size | M5 | 1/8'' | 1/4'' |
| Orifice Size | 1.0mm | ||
| Pressure Range | 0 to 0.8MPa | ||
| Max. Resistance Pressure | 1.2 MPa | ||
| Coil Voltage | 12VDC, 24VDC, 110VAC, 220VAC | ||
| Coil Power | AC: 5.5VA, DC: 4.8W | ||
| Max. Frequency | 10 cycle/sec | ||
Dimension of 3V1-06 Pneumatic Solenoid Valve:
