2'' Inch Joil Korea DN50 Pulse Valve NBR Nitrile Diaphragm Repair Kit

2'' Inch Joil Korea DN50 Pulse Valve NBR Nitrile Diaphragm Repair Kit

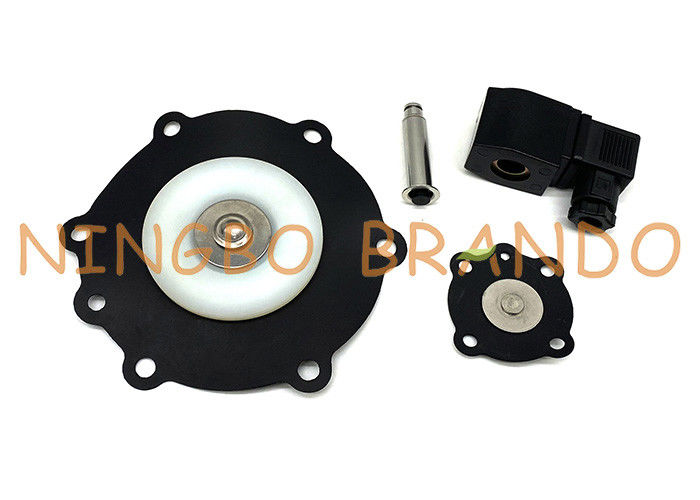

This is NBR diaphragm repair kit for 2'' JOIL JISI 50, JISR 50, JIFI 50, JIFR 50 dust collector pulse jet valve. Brando manufactures and exports all kinds of diaphragm repair kits for JOIL pulse valve as follows:

JICI 20, JICR 20, JISI 20, JISR 20, JICI 25, JICR 25, JISI 25, JISR 25, JICI 40, JICR 40, JISI 40, JISR 40, JIFI 40, JIFR 40, JISI 50, JISR 50,
JIFI 50, JIFR 50, JISI 65, JISR 65, JIFI 65, JIFR 65, JISI 80, JISR 80, JIHI 80, JIHR 80, JIHI 100, JIHR 100.

This is NBR (Buna) diaphragm kit, used in Joil 2'' JISI 50, JISR 50, JIFI 50, JIFR 50 pulse valves. Because the diaphragm of pulse valve is a flexible mechanism which needs to open and close frequently to control the air flow, it requires good flexibility and as high sealing as possible.

Working Principle: When different pressure (or force) acts on both sides of the diaphragm of the pulse valve, the diaphragm moves to the lower side of the pressure, resulting in the displacement of the center of the diaphragm.

Applications: The pulse valves are especially designed for dust collector service applications, combining high flow, long life and extremely fast opening and closing to produce reliable and economical operation.

YouTube video of Diaphragm Repair Kit For 2'' Joil Pulse Jet Valve:

Main dimension of JISI 50 JISR 50 JIFI 50 JIFR 50 NBR Diaphragm:

Details display of JISI 50 JISR 50 JIFI 50 JIFR 50 Valve Diaphragm:

Available Models of Diaphragm Valve Repair Kits For Joil Pulse Valves:

Tips: The related solenoid coils and armature assembly are all supplied.

Factory Production Pictures of Solenoid Valve Diaphragm Kits:

Diaphragm Features:
1. Diaphragm (Rubber or Fabric Reinforcement in Rubber Diaphragms) is a precision functional part used check pressure or change fluid pressure into drive power.

2. Fabric-reinforced in rubber diaphragms utilize a layer of an engineered fabric material as part of the diaphragm comstruction. This layer of fabric give tremendous design flexibity.

3. Fabric is made of polyester, nylon and silk and commonly used for most applications, such like exposed to high-temperature, or require extremely high-strength.

4. Facbric-reinforced diaphragms advantages:
* No leakage  * No Lubrication  * No Breakaway Force  * No Friction
* Functionality Over Wide Pressure Ranges
* High Strength * Low Cost  * Simple Design  * Versatility

5. EPDM, FKM all available.

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
