| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE |
| Model Number: | 4M310-08 |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Individual box, Carton, Pallet |
| Delivery Time: | Negotiation |
| Payment Terms: | T/T, PayPal, Western Union |
| Supply Ability: | 200000 pcs per month |
| Valve Type: | 5 Way 2 Position | Port Size: | In=Out=1/4'' |
|---|---|---|---|
| Pressure Range: | 0.15 To 0.8MPa (21 To 114PSI) | Max Pressure Resistance: | 1.5MPa (215PSI) |
| Body Material: | Aluminum Alloy | Max. Frequency: | 5 Cycle / Second |
| Voltages: | 220V AC, 110V AC, 24V AC, 24V DC, 12V DC | ||
| Highlight: | Namur Mount Solenoid Valve,Solenoid Valve 4M310-08,4M310-08 Airtac |
||

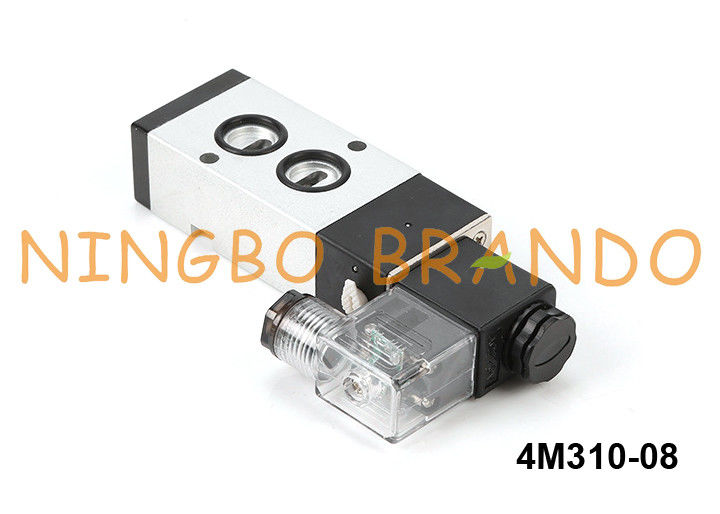

4M310-08 Airtac Type Namur Mount Solenoid Valve 5/2 24VDC 220VAC
NAMUR solenoid valves are highly reliable, with a long service life. They provide fast and safe switching in a compact design, which can be directly mounted in any position on a NAMUR mounting plate or interface. Multiple valves can also be mounted on a manifold to supply a number of process control actuators. NAMUR solenoid valves demand low control power, and offer good medium compatibility between the process materials. They are often designed with a spring return to provide fail-safe operation in the event of unexpected power loss, and may be protected for outdoor use with a screened exhaust nut.
Data of NAMUR Pneumatic Solenoid Valves:
| Model No |
4M110-M5 4M120-M5 |
4M110-06 4M120-06 |
4M210-06 4M220-06 |
4M210-08 4M220-08 |
4M310-08 4M320-08 |
4M310-10 4M320-10 |
| Fluid | Air (to be filtered by 40 μm filter element) | |||||
| Port Size | In=Out=M5 | In=Out=1/8'' | In=Out=1/8'' | In=Out=1/4'' | In=Out=1/4'' | In=Out=3/8'' |
| Orifice Size |
5.5mm² (Cv=0.31) |
12.0mm² (Cv=0.67) |
14.0mm² (Cv=0.78) |
16.0mm² (Cv=0.89) |
25.0mm² (Cv=1.40) |
30.0mm² (Cv=1.67) |
| Valve Type | 5 Way 2 Position | |||||
| Operating Pressure | 0.15 to 0.8MPa (21 to 114 PSI) | |||||
| Proof Pressure | 1.5MPa (215PSI) | |||||
| Temperature (℃) | -20 to +70 | |||||
| Body Material | Aluminum Alloy | |||||
| Max. Frequency | 5 Cycle / Second | 4 Cycle / Second | ||||
| Coil Voltages | 12VDC, 24VDC, 24VAC, 110VAC, 220VAC | |||||
| Coil Protection Class | IP65 | |||||
| Activating Time | 0.05 second and below | |||||
Dimension of 4M310-08 Namur Solenoid Valve:
