| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE |
| Model Number: | RCA25DD |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiation |
| Packaging Details: | inner boxes,cartons,pallets |
| Delivery Time: | Negotiation |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100000 pcs per month |
| Type: | Dresser Nut Diaphragm Valve | Power: | Pneumatic |
|---|---|---|---|
| Media: | Air | Port Size: | 1''Inch |
| Pilot Or Remote: | Remote | Body Material: | Aluminum Alloy |
| Diaphragm Material: | NBR(Common), FKM(Available) | Number Of Diaphragm: | 1 |
| Pressure: | 0.1 To 0.8MPa | Temperature: | -25 To +80℃ |
| Highlight: | RCA25DD Remote Valve,Dresser Nut Remote Valve,Goyen Type RCA25DD |
||

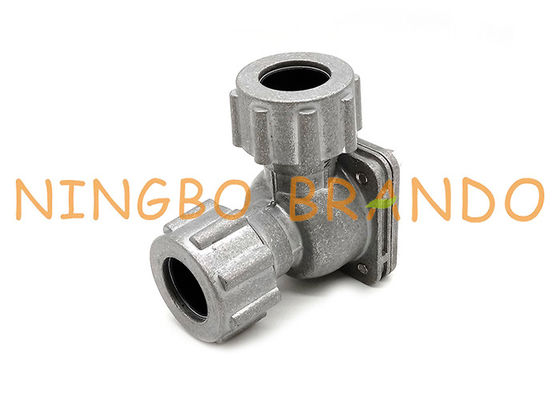

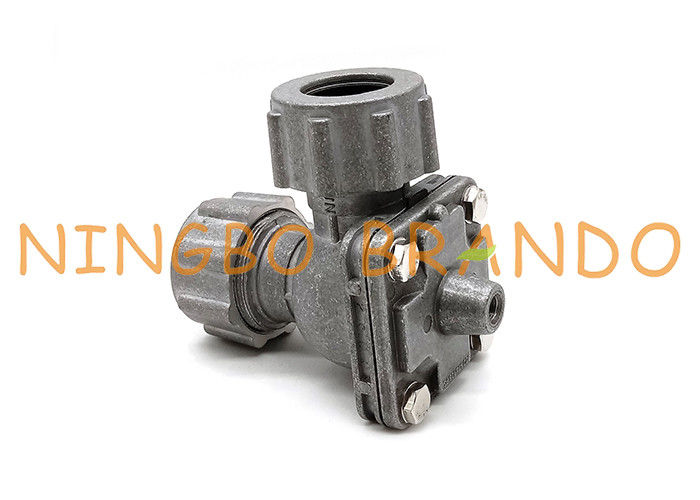

RCA25DD 1'' Inch Remotely Piloted Dresser Nut Remote Valve
Pulse Jet Valve in Dust Collector System:
The dust cleaning device of the bag filter is an important component device. According to the different cleaning methods, the bag filter can be divided into the following categories. The periodic operation of the machine is used to shock the filter bag to achieve the purpose of cleaning. This method can also be divided into two types, namely continuous shock and intermittent shock. These two types of choices According to the actual situation and the density of dust to choose; the use of compressed air instead of mechanical shock, the principle is the same as the principle of mechanical shock, but the way of shock is different; when the dust is deposited, you can choose pulse cleaning, release compression The moment of air will affect the atmospheric pressure of the surrounding air.
Goyen Type Pulse Jet Valves:
1. Threaded Pulse Jet Valve: CA15T, CA20T, CA25T, CA35T, CA45T, CA50T, CA62T, CA76T
2. Dresser Nut Pulse Jet Valve: CA25DD, RCA25DD, CA45DD
3. Immersion Pulse Jet Valve: CA50MM, CA62MM, CA76MM, CA89MM
4. Flanged Pulse Jet Valve: CAC25FS, CAC45FS
5. Remote Pilot Pulse Jet Valve: RCA25DD, RCA45T, RCA50T
Technical Data of Goyen Pulse Jet Valve:
|
Model
|
RCA20DD
|
RCA25DD
|
RCA45DD
|
|
|
Nominal Size
|
20
|
25
|
45
|
|
|
Port size
|
mm
|
20
|
25
|
40
|
|
in
|
3/4
|
1
|
1 1/2
|
|
|
Number of Diaphragms
|
1
|
1
|
2
|
|
|
Flow
|
Kv
|
12
|
20
|
44
|
|
Cv
|
14
|
23
|
51
|
|
|
Pressure (Psi)
|
5 to 125
|
5 to 125
|
5 to 125
|
|
|
Temperature℃
|
NBR
|
-40 to 82
|
-40 to 82
|
-40 to 82
|
|
FKM
|
-29 to 232
|
-29 to 232
|
-29 to 232
|
|
Main Dimension:
CA RCA Series Pulse Jet Valve For Dust Collector System:
