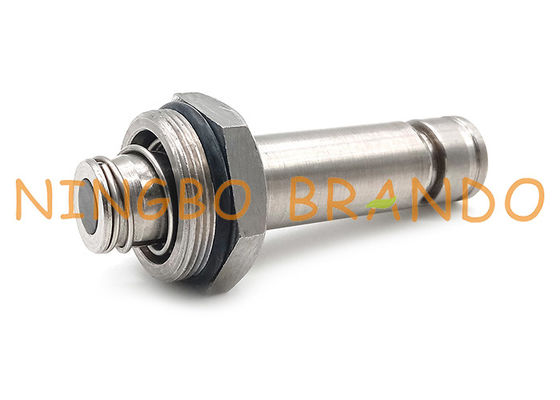

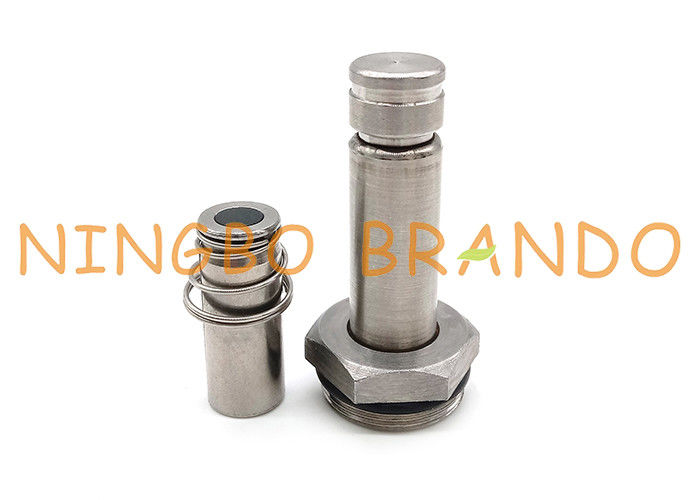

K0950 ASCO Type Dust Collector Valve Pulse Jet Valve Plunger Armature

K0950 ASCO Type Dust Collector Valve Pulse Jet Valve Plunger Armature

The solenoid valve assembly may include a solenoid driver adapted to generate a first voltage level for initiating movement of the magnetized armature, and a second voltage level for maintaining the magnetized armature in an energized position. The solenoid valve assembly may have a housing, a solenoid, and a magnetized cylindrical armature that is couplingly coupled to the solenoid and located within a hollow center of the solenoid. The armature may have a spring fixed to one end of the armature and one end of the solenoid, wherein the spring and the armature can be linear in the fluid cavity of the valve housing and in the cylindrical plunger guide of the solenoid motion. Linear motion is controlled by the magnetic field of the solenoid and spring so that the magnetized armature can abut the orifice fluid outlet of the orifice plate to prevent fluid from flowing through it.

Condition:New
Applicable Industries:Dust Collector
Type:Fittings
Place of Origin:Zhejiang, China
Brand Name:Brando
Guide Tube Outer Diameter:14.0mm
Installation Height for Coil Assembling:39.2mm
Plunger Seal for Orifice Diameter:7.4mm
Guide Tube Material:Stainless Steel
Seal Material:NBR
Mounting Type:M23.8x1 Thread
Voltage:AC, DC All Available
Position and Way:2/2 Way
Non-working Status:Normally Closed
Applicaiton:SCG353A047, SCG353A050, SCG353A051, SCXE353.060 Pulse Valve

Dimension of BAPC214041405 Armature Assembly:

Technical Data:

Product Features:

1. Fixed core and movable core (plunger):
Adopting rustproof and corrosion-resistant material with high magnetic conductivity and low remanence to ensure armature assembly durable and smart acting.

2. Guide tube (plunger tube):
Options of brass and stainless steel, grade of H62 or SUS304;
Wall thickness from range of 0.25~2.5mm, others could be customized;
Kinds of welding type to hold various working pressure, such as laser welding, argon-arc welding, silver soldering. Machining from entire solid bar directly is also available.

3. Spring:
Rustproof SUS304 stainless steel, with good performance of restore.

4. Seals:
Options of NBR, HNBR, FKM, EPDM, PTFE, food grade materials, welcome your other requirements.

5 Shading ring:
Cooper and silver material available.

6. Washer and retaining nut provided if has demands.

More Solenoid Valve Armature Assembly for you to choose:

*According to tube OD: 5-7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm, 15mm, 16mm, 17mm, Up to 60mm.

*According to tube material: Brass, Stainless Steel

*According to valve application:

1. Pulse Solenoid Valve Armature Assembly, 2. Water Solenoid Valve Armature Assembly, 3. Pneumatic Solenoid Valve Armature Assembly, 4. Refrigeration Solenoid Valve Armature Assembly, 5. Injector Rail Armature Assembly, 6. Air-Jet Loom Solenoid Valve Armature Assembly, 7. House Appliances Solenoid Valve Armature Assembly, 8. Automobile Solenoid Valve Armature Assembly, 9. Medical Solenoid Valve Armature Assembly, etc.
