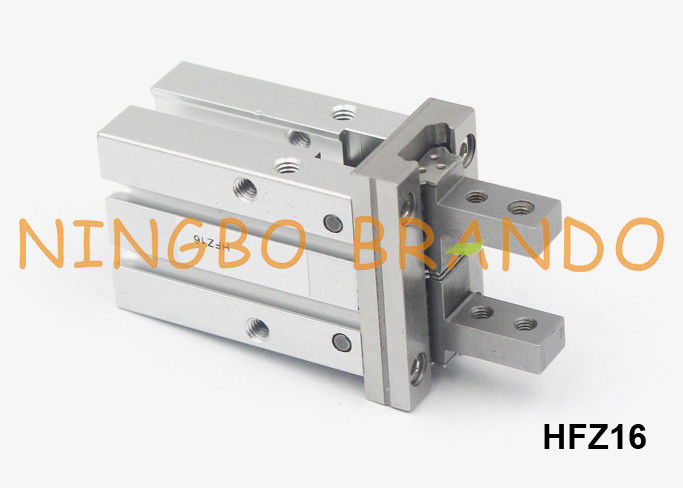

Two Finger Parallel Style Pneumatic Air Gripper Airtac Type HFZ 16

Two Finger Parallel Style Pneumatic Air Gripper Airtac Type HFZ 16

Pneumatic grippers can perform three basic functions:

1. Part transfer to and from a conveyor, workstation or machine. Common applications are machine tending, part placement, load and unload, and boxing, crating or palletizing.

2. Part orientation requires the gripper to assist in aligning a part in preparation for the next process step, such as precision orientation for applying a label, preparation for tray insertion or box packaging.

3. Hold part in place requires gripping a part securely in place while an action is performed. This activity can be much harder on a gripper because it not only needs to hold the part while work is performed, it must also withstand work forces being applied due to drilling, stamping or a marking process. These extra applied forces must be accounted for to properly size a gripper.

Airtac Type HFZ series Air Grippers are available in a single and double acting configurations with parallel or angular gripping styles 6mm to 32mm bore sizes are available. The single acting parallel grippers are available in normally closed or open type. Magnetic pistons are standard to allow the use of reed or solid state sensor switches.

Specifications of HFZ Series Air Grippers:

Symbol of Airtac Type HFZ Series Air Grippers:

Odering Code of HFZ Series Air Grippers:

Gripping Force and Stroke of HFZ Series Air Grippers:

Inner Structure and Material of major parts:

Brando Supply Pneumatic Air Cylinders:

Airtac Type Pneumatic Cylinder	Festo Type Pneumatic Cylinder	SMC Type Pneumatic Cylinder

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing

Welcome to your any question and inquiry!
