| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE |
| Model Number: | M40 |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plastic Bags, Cartons, Pallet |
| Delivery Time: | 4-7 Days |
| Payment Terms: | L/C, T/T, Western Union, Paypal, MoneyGram |
| Supply Ability: | 200000 pcs per month |
| Product Name: | M40 Diaphragm Repair Kit | Suitable Valves: | 1 1/2'' FP40, FM40, DP40, DM40, EP40, EM40 |
|---|---|---|---|
| Diaphragm Material: | NBR (Buna) | Mounting Hole Size: | φ8.5mm |
| Diaphragm Outer Diameter: | φ122mm | Center Distance: | φ122mm |
| Bleed Hole: | 1 | Spring: | 2 |
| Packaging: | Individual Plastic Bag Sealed | ||
| Highlight: | Turbo Type Diaphragm Set,M40 Diaphragm Set,Turbo M40 Diaphragm |
||
Turbo Type 1-1/2'' 1.5'' Inch Pulse Jet Valve M40 Diaphragm Set
This is M40 diaphragm repair kit for Turbo 1 1/2'' inch FP40, FM40, DP40, DM40, EP40, EM40 pulse jet valves. It is maded of NBR, which is a kind of synthetic rubber, copolymer formed by polymerization of acrylonitrile and butadiene monomer, and has the advantages of good oil resistance (especially alkane oil), high abrasion resistance, good air tightness, good heat resistance, strong adhesion, good aging resistance and so on.
1½" Turbo Diaphragm Repair Kit consisting of a double diaphragm (M45+M10) plus springs (TM0L40 + TMOL11G)
| Fluids: | Non-lubricated filtered air. |
| Operating temperature: | Nitrile diaphragm -20°C; +80°C Viton diaphragm -20°C; +200°C |
| Operating pressure: |
Between 0.5 and 7.5 bar |
YouTube video of M40 Diaphragm Repair Kit For 1.5'' Turbo Pulse Valve:

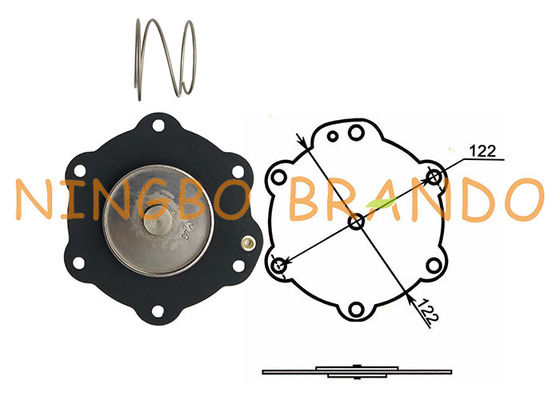

Main dimension of FP40, FM40, DP40, DM40, EP40, EM40 Valve Diaphragm:

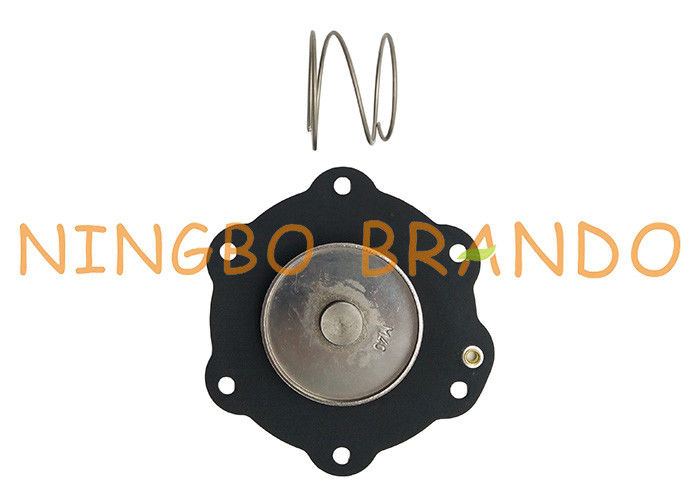

Details display of M40 Repair Kit Diaphragm For 1 1/2'' Turbo Pulse Valve:
Available Models of Diaphragm Valve Repair Kits For Turbo Pulse Valves:
Tips: The related solenoid coils and armature assembly are all supplied.
Factory Production Pictures of Solenoid Valve Diaphragm Kits:
By registering for a customized catalog, Brando offers a fast and easy way to order your replacements parts. We'll take your system specifications and create a catalog based on your system making it a breeze to find the right products for your installation.
We offer competitive accessories and replacement parts for dust collectors as following:
1. Pulse Controller
2. Diaphragm Valves
3. Repair Kits (Solenoid Coil, Armature Assembly, Diaphragms)
Working Principle: When different pressure (or force) acts on both sides of the diaphragm of the pulse valve, the diaphragm moves to the lower side of the pressure, resulting in the displacement of the center of the diaphragm.
Applications: The pulse diaphragm valves are especially designed for dust collector service applications, combining high flow, long life and extremely fast opening and closing to produce reliable and economical operation.
