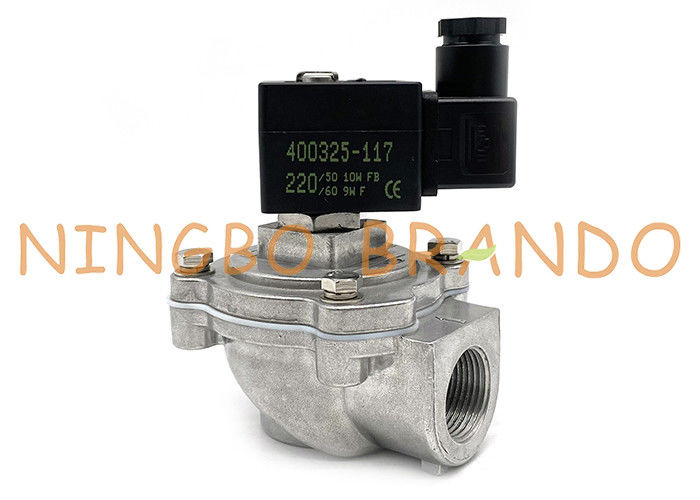

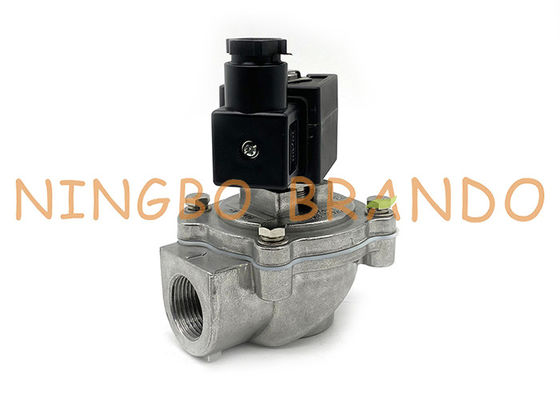

3/4'' Inch SCG353A043 Right Angle Baghouse Filter Diaphragm Valve

3/4'' Inch SCG353A043 Right Angle Baghouse Filter Diaphragm Valve

These valves are specifically developed for filter cleaning of dust collectors and baghouses in reverse pulse jet systems. Those applications require high peak pressure, high flow rates, long life, and extremely fast valve opening and closing for effective filter cleaning while minimizing compressed air waste. When considering pulse valve characteristics, key attributes sought alike include robust performance, reliability, and ease of use. Today’s more popular pulse valves on the market offer users a simplified design that helps to maximize valve performance, translating into longer system uptimes. For the functional design of a pulse valve, there are multiple connection options, including threaded, dresser, and even a quick-mount option that enables faster, easier, and more secure installation.

Youtube Video of SCG353A043 Right Angle Pneumatic Pulse Valve:

Technical Data:

Dimension of SCG353A043 Dust Collector Pulse Valve:

Model No.	BB11036001
Ref No.	400325
Voltage	AC24V, AC110V, AC220V, DC12V, DC24V
Connection	DIN 43650A
Other can be customized, please contact us.

Details About SCG353A043 Pilot Operated Solenoid Pusle Valve:

Features of ASCO Type 353 Series Pulse Valve:

​​​​​​​​​​​​​​​​​Specially designed for reverse jet-type dust collector systems
High flow Cv(s) to 140 for effective bag cleaning
High cycle life and fast opening/closing
High quality polyacetal (POM) piston cartridge provides a long operating life and a large temperature range
Quick mount connection eliminates thread cutting and sealing
Integral operators have molded epoxy coils, with available options
Valves may be mounted in any position

Application of ASCO Type Solenoid Pulse Valve:

The ASCO Type Dust Collector Series are high-flow fast-opening 2-way valves, pilot valves, pilot valve enclosures, and bulkhead fittings that have been specially designed for use in dust collector systems.

Concrete Processing
Grain, Agriculture and Feed
Metal Working (Abrasive Blasting)
Food Processing
Foundries
Pharmaceutical

Construction:
Body and Dreeser Nuts: Aluminum (diecast)
Ferrule: 305 Stainless Steel
Armature: 430FR Stainless Steel
Diaphragm and Seals: Nitrile or FKM
Spring: 304 Stainless Steel
Screws: 302 or 304 Stainless steel

Diaphragm Seat: PA-66 (25 & 40MM standard), Nitrile-coated mild steel (76MM standard), Acetal (102MM standard) or FKM coated mild steel
