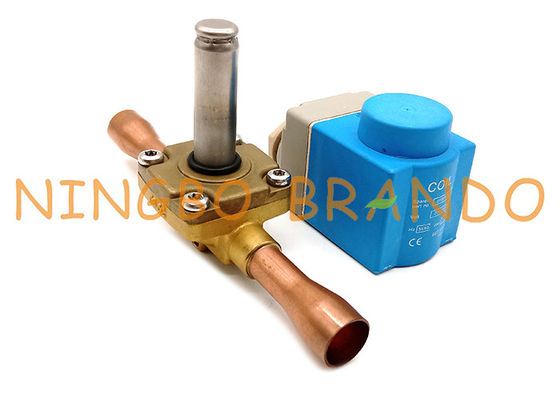

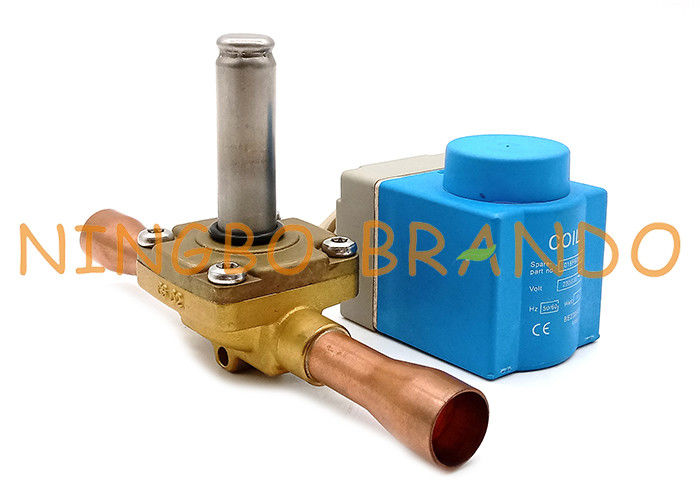

Name: 032L1214 032L7117 EVR 10 5/8'' Solder Refrigeration Solenoid Valve
Brand: Ningbo Brando Hardware Co., Ltd
SKU: EVR 10-058S
Price: Negotiable USD
Availability: InStock

Home Products Refrigeration Solenoid Valve

032L1214 032L7117 EVR 10 5/8'' Solder Refrigeration Solenoid Valve

Product Details:

Place of Origin:	China
Brand Name:	Brando
Certification:	CE
Model Number:	EVR 10-058S

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Packaging Details:	Individual Boxes, Carton, Pallet
Delivery Time:	5-8 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	100000 pcs per month

Contact Now

Detailed Product Description

Type:	Direct Acting	Material:	Brass
Pressure:	Ordinary Pressure	Valve Structure:	Direct-Acting Piston Structure
Power Supply:	DC Solenoid Valve	Usage:	Temperature Control
Standard:	GB	Cooper Pipe Size:	1/4'' Through 2-1/8''
Solenoid Coils:	DC/AC	Application:	Refrigeration Units,Air Conditioning Or Refrigerator
Highlight:	032L1214 Refrigeration Solenoid Valve , 032L7117 Refrigeration Solenoid Valve , Danfoss Type EVR 10 5/8''

032L1214 032L7117 EVR 10 5/8'' Solder Refrigeration Solenoid Valve

EVR Solenoid Valve Product Introduction:

Our plunger solenoid valve are direct or servo operated solenoid valve for liquid, suction, and hot gas lines with fluorinated refrigerants. EVR plunger solenoid valve are supplied complete or as seprate components, i.e. valve body, coil and flanges, if required, can be ordered seprately.

EVR valves can be used in liquid, suction and hot gas lines, and the valves are compatible with fluorinated refrigerants, including high-pressure refrigerants such as R410A.

We offers an exceptionally wide range of high performance solenoid valves, available in direct-operated, servo-operated and assisted lift versions. An easy, economical way to control and regulate fluids and gases.
Danfoss type refrigeration solenoid valve bodies and electrical coils are normally supplied separately and then combined, but the valves are also available as complete units if required. We offer a general B valve series with a high capacity and the A series is more economic and compact.
Danfoss type refrigeration solenoid valves are assembled quickly and simply without tools, providing optimum product flexibility and availability. A coil can be replaced if needed without stopping or draining the system.

EVR solenoid valve features:

1, complete range of solenoid valve for refrigeration, freezing and conditioning plant

2, wide choice of coil for AC and DC

3, suitable for all fluorinated refrigerants

4, Extended ends for soldering make installation easy, it is not necessary to dismantle the valve when soldering in.

5, EVR valve is also available with flange connection type

Description of Water/air cooled chillers with EVR10-058S refrigeration Electromagnetic Valve:

Water/air cooled chillers are available for small systems. Most large units are water cooled. The initial investment of water cooling is less than that of air cooling. But with cooling towers and machine rooms, electronic water treatment devices, there is no place to go! In addition, in the long run, the cooling efficiency of the water cooling unit will be relatively reduced, while the air cooling unit will not.

The air-cooled chiller adopts the air-cooled mode, which eliminates the cooling tower, cooling water pump and pipeline system essential to the cooling water system, prevents the condenser from scaling and blocking the water pipe in the water quality area, and saves water resources. In the cold water air conditioning equipment product, the most economical, the maintenance simplest model. The investment of air cooled chillers is slightly higher than that of water cooled chillers, but the annual operating cost is lower than that of water cooled chillers. Among all kinds of air-conditioning cooling and heating source systems, the machine room has the lowest construction cost and the maintenance cost is water-cooled. Or half the cost of the boiler. Air-cooled chillers are louder and cooler than water-cooled chillers and can only be installed outdoors. Most water chillers are installed in the basement.

Dimension:

032L1214 032L7117 EVR 10 5/8'' Solder Refrigeration Solenoid Valve 0

Model		Connection		H1	H2	L	L2
SAE (Thread)	ODF (Solder)	Inch	mm	mm	mm	mm	mm
EVR3-014	EVR3-014S	1/4''	6	14	71	102	7
EVR3-038	EVR3-038S	3/8''	10	14	73	117	10
EVR6-038	EVR6-038S	3/8''	10	14	79	111	10
EVR6-012	EVR6-012S	1/2''	12.8	14	79	127	10
EVR10-012	EVR10-012S	1/2''	12.8	16	79	127	10
EVR10-058	EVR10-058S	5/8''	16	16	79	160	12
	EVR15-058S	5/8''	16	19	86	176	12
	EVR15-078S	7/8''	22	19	86	176	17
	EVR20-078S	7/8''	22	20	90	191	17
	EVR20-118S	1 1/8''	28.8	20	90	214	22
	EVR22-0138S	1 3/8''	35	20	90	281	25
	EVR25-118S	1 1/8''	28.8	38	138	256	22
	EVR25-138S	1 3/8''	35	38	138	281	25
	EVR32-138S	1 3/8''	35	47	111	281	25
	EVR32-158S	1 5/8''	42	47	111	281	29
	EVR40-158S	1 5/8''	42	47	111	281	29
	EVR40-218S	2 1/8''	54	47	111	281	34

Type	Connection		Code no. Valve body + 10 W a. c. coil with terminal box
	Connection		Flare	Solder ODF
	in.	mm	in./mm	in.	mm
EVR 3	1/4	6	032F8110	032F2043	032F2053
EVR 6	3/8	10	032F8074	032F2083	032F2093
EVR 10	1/2	12	032F8092	032F2123	032F2133
EVR 15	5/8	16	032F8103	032F2193	032F2193
EVR 20	7/8	22		032F2243	032F2243

Without Coil
Type	Current Type	Connection Size		Max. working pressure		Kv valve [m3/h]	Cv valve [gal/min]	Coder No.
Type	Current Type	[mm]	[in.]	[bar]	[psi]	Kv valve [m3/h]	Cv valve [gal/min]	Coder No.
EVR2	a.c.	-	1/4	45.2	655	0.16	0.19	032F1201
EVR2	a.c.	6	-	45.2	655	0.16	0.19	032F1202
EVR3	a.c./d.c.	-	1/4	45.2	655	0.27	0.32	032F1206
	a.c./d.c.	-	3/8	45.2	655	0.27	0.32	032F1204
	a.c./d.c.	6	-	45.2	655	0.27	0.32	032F1207
	a.c./d.c.	10	-	45.2	655	0.27	0.32	032F1208
EVR6	a.c./d.c.	-	1/2	45.2	655	0.80	0.92	032F1209
	a.c./d.c.	-	3/8	45.2	655	0.80	0.92	032F1212
	a.c./d.c.	10	-	45.2	655	0.80	0.92	032F1213
	a.c./d.c.	12	-	45.2	655	0.80	0.92	032F1236
EVR10	a.c./d.c.	-	1/2	35	500	1.9	2.2	032F1217
	a.c./d.c.	12	-	35	500	1.9	2.2	032F1218
	a.c./d.c.	16	5/8	35	500	1.9	2.2	032F1214
EVR15	a.c./d.c.	22	7/8	32	460	2.6	3.0	032F1225
	a.c./d.c.	16	-	32	460	2.6	3.0	032F1227
	a.c./d.c.	16	5/8	32	460	2.6	3.0	032F1228
EVR20	a.c.	22	7/8	32	460	5.0	5.8	032F1240
	a.c.	-	7/8	32	460	5.0	5.8	032F1254
	a.c.	-	1-1/8	32	460	5.0	5.8	032F1244
	a.c.	28	-	32	460	5.0	5.8	032F1245
	d.c.	22	7/8	32	460	5.0	5.8	032F1264
	d.c.	-	7/8	32	460	5.0	5.8	032F1274
ECR22	a.c.	35	1-3/8	32	460	6.0	6.9	032F3267
EVR25	a.c./d.c.	-	1-1/8	32	460	10.0	11.6	032F2200
	a.c./d.c.	-	1-1/8	32	460	10.0	11.6	032F2201
	a.c./d.c.	28	-	32	460	10.0	11.6	032F2205
	a.c./d.c.	28	-	32	460	10.0	11.6	032F2206
	a.c./d.c.	-	1-3/8	32	460	10.0	11.6	032F2207
	a.c./d.c.	-	1-3/8	32	460	10.0	11.6	032F2208
EVR32	a.c./d.c.	-	1-5/8	32	460	16.0	18.5	042H1103
	a.c./d.c.	-	1-5/8	32	460	16.0	18.5	042H1104
	a.c./d.c.	35	-	32	460	16.0	18.5	042H1105
	a.c./d.c.	35	-	32	460	16.0	18.5	042H1106
	a.c./d.c.	42	-	32	460	16.0	18.5	042H1107
	a.c./d.c.	42	-	32	460	16.0	18.5	042H1108
EVR 40	a.c./d.c.	-	1-5/8	32	460	25.0	28.9	042H1109
	a.c./d.c.	-	1-5/8	32	460	25.0	28.9	042H1110
	a.c./d.c.	-	2-1/8	32	460	25.0	28.9	042H1111
	a.c./d.c.	-	2-1/8	32	460	25.0	28.9	042H1112
	a.c./d.c.	42	-	32	460	25.0	28.9	042H1113
	a.c./d.c.	42	-	32	460	25.0	28.9	042H1114
