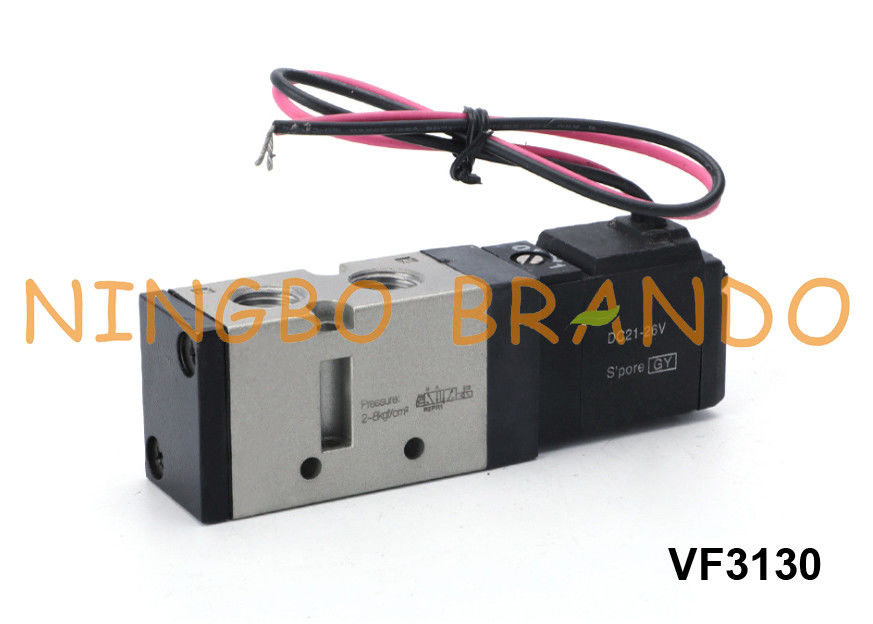

Name: VF3130 SMC Type Pneumatic Solenoid Valve 5 Way 2 Position 24V 220V
Brand: Ningbo Brando Hardware Co., Ltd
SKU: VF3130
Price: Negotiable USD
Availability: InStock

Home Products Pneumatic Solenoid Valve

VF3130 SMC Type Pneumatic Solenoid Valve 5 Way 2 Position 24V 220V

Product Details:

Place of Origin:	China
Brand Name:	Brando
Certification:	CE
Model Number:	VF3130

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	Negotiation
Packaging Details:	Individual box, Carton, Pallet
Delivery Time:	Negotiation
Payment Terms:	T/T, PayPal, Western Union
Supply Ability:	200000 pcs per month

Contact Now

Detailed Product Description

Valve Type:	5 Way 2 Position	Port Size:	In=Out=1/4'', Exhaust=1/8''
Pressure Range:	0.15 To 0.8MPa	Max Pressure Resistance:	1.2 MPa
Body Material:	Aluminum Alloy	Wiring Form:	Lead Wire Or DIN43650 Connector
Voltages:	12VDC, 24VDC, 24VAC, 110VAC, 220VAC
Highlight:	SMC VF3130 solenoid valve , 5 Way Pneumatic Solenoid Valve , VF3130 SMC

VF3130 SMC Type Pneumatic Solenoid Valve 5 Way 2 Position 24V 220V

Pneumatic valve is where air or an inert gas is the pneumatic drive force. These type of pneumatic valves control or manage the source air within an automated system. While frequently referred to as pneumatic valves, they can be actuated (operated) by manually, by pneumatic actuation (Air Pilot Valve), by solenoid actuation (Pneumatic Solenoid Valve), or by motorized actuation. Ultimately, they all serve the same purpose: they modulate or control the source air for an automated system.

Technial Data of VF & VZ Series Pneumatic Solenoid Valves:

Model	VF3130	VF33(4/5)30	VF5120	VF53(4/5)50	VZ5120	VZ53(4/5)50
Model	VF3230	VF33(4/5)30	VF5220	VF53(4/5)50	VZ5220	VZ53(4/5)50
Valve Type	5/2 way	5/3 way	5/2 way	5/3 way	5/2 way	5/3 way
Orifice Size	16mm² (Cv=0.89)	12mm² (Cv=0.67)	25mm² (Cv=1.4)	18mm² (Cv=1)	12mm² (Cv=0.67)	9mm² (Cv=0.50)
Fluid	Air (to be filtered by 40 μm filter element)
Operating Pressure	0.15 to 0.8 MPa
Proof Pressure	1.2 MPa
Body Material	Aluminum Alloy
Max Frequency	5 cycle / sec
Voltage	12VDC, 24VDC, 24VAC, 110VAC, 220VAC
Wire Form	Lead Wire or DIN43650 Connector

Dimension of VF3130 Pneumatic Solenoid Valve:

VF3130 SMC Type Pneumatic Solenoid Valve 5 Way 2 Position 24V 220V 0

Production Video of Pneumatic Solenoid Valve:

More Pneumatic Products for you to choose:

2/2 Way Pneumatic Valves	3/2 Way Pneumatic Valves	5/2 Way Pneumatic Valves	5/3 Way Pneumatic Valves

Namur Solenoid Valves	Air Pilot Valves	Pneumatic Cylinders	Silencers and Fittings

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
