| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE |
| Model Number: | 4R310-08 |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Individual box, Carton, Pallet |
| Delivery Time: | Negotiation |
| Payment Terms: | T/T, PayPal, Western Union |
| Supply Ability: | 200000 pcs per month |
| Fluid: | Air (to Be Filtered By 40μm Filter Element) | Operation: | Manual Control Direct Acting Type |
|---|---|---|---|
| Port Size: | 1/4'' | Valve Type: | 5 Way 2 Position |
| Pressure Range: | 0 To 1.0MPa (0 To 145 Psi) | Max Pressure Resistance: | 1.5 MPa (215 Psi) |
| Temperature Range: | -20 To +70℃ | Body Material: | Aluminum Alloy |
| Highlight: | Push Pull Pneumatic Valve,Push Pull Valve 5 Way,Airtac 4R310-08 |
||

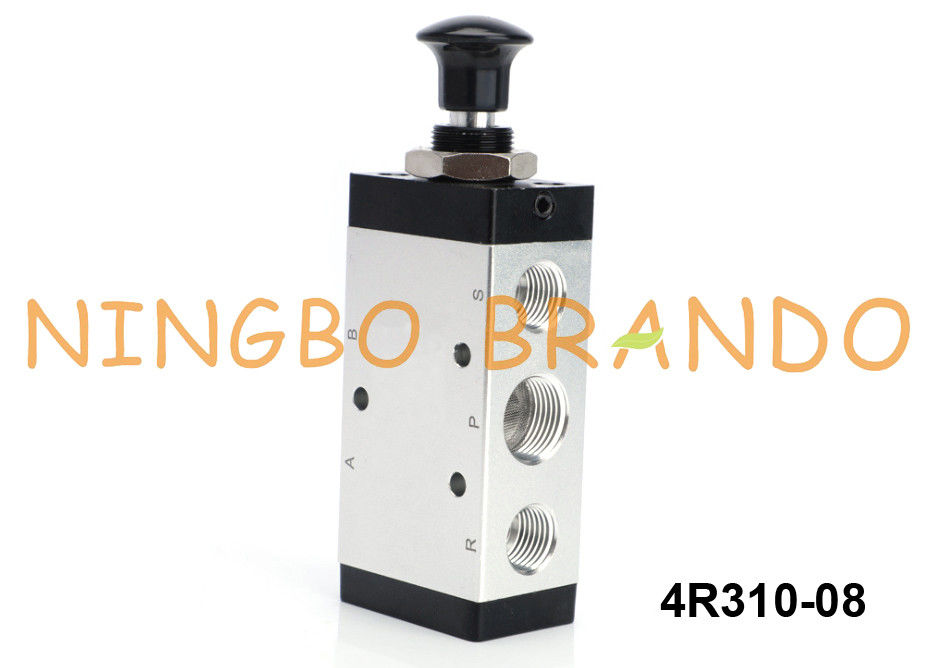

4R310-08 Airtac Type Manual Push Pull Pneumatic Air Valve 5 Way
Advantages of our Push Pull Air Valve:
1. High Quality: The valve body is made of high-quality sealed PVC material and aluminum alloy structure. The structure is compact, which makes the whole valve body connection more tight and firm, durable and long service life.
2. Easy To Use: The Hand Control Valve circular control handle has the same direction as the shaft, which is easy to operate, convenient for your use, reliable and precise positioning.
3. Good Breathability: This air valve has high-precision stem and seal design ensure good breathability, so you can use it with confidence.
4. Small Resistance: The inner hole of Pneumatic Valve is made by special technology, and the resistance is small, so you can use it for a long time.
5. Practical Tool: 5 way 2 position valve has the characteristics of small size, light weight, good sealing and easy installation. The quality is worthy of your trust.
Technical Data of 4R series Push Pull Valve:
| Model | 4R110-06 | 4R210-06 | 4R210-08 | 4R310-08 | 4R310-10 |
| Fluid | Air (to be filtered by 40μm filter element) | ||||
| Operating | Manual control direct acting type | ||||
| Port Size | 1/8'' | 1/4'' | 3/8'' | ||
| Orifice Size (Cv) |
10.2mm² (Cv=0.6) |
4L210-08: 17.0mm² (Cv=1.0) |
4L310-10: 28.0mm² (Cv=1.65) |
||
| Valve Type | 5/2 Way | ||||
| Pressure Range | 0 to 1.0MPa (0 to 145 psi) | ||||
| Proof Pressure | 1.5 MPa (215 psi) | ||||
| Temperature | -20 to +70℃ | ||||
| Body Material | Aluminum Alloy | ||||
Ordering Code of 4R series Push Pull Valve:
Dimension of 4R series Push Pull Valve:
Inner Structure of 4R series Push Pull Valve:
