CA76T 3'' Inch Right Angle Diaphragm Baghouse Pulse Jet Valve

CA76T 3'' Inch Right Angle Diaphragm Baghouse Pulse Jet Valve

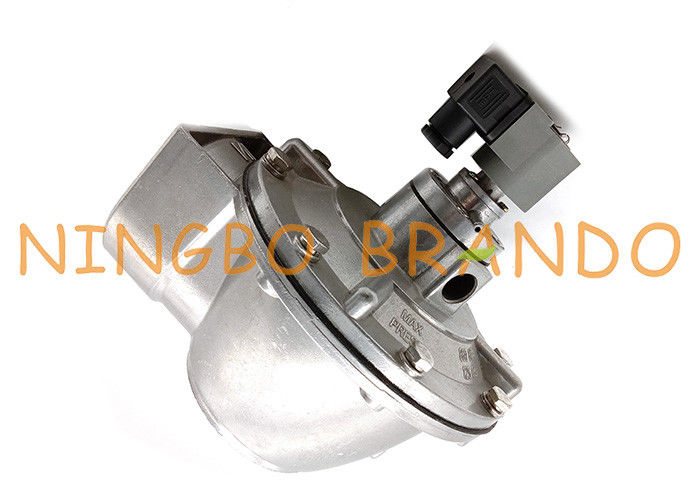

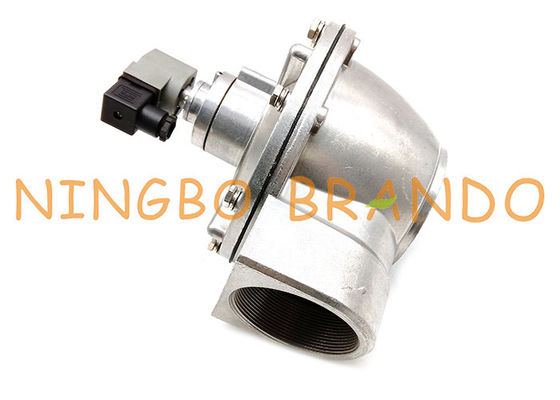

This is CA76T Goyen Type Right Angle Pulse Jet Valve; Reference No: CA76T000, CA76T001, CA76T010, CA76T000-300, CA76T001-300, CA76T010-300, CA76T000-305, CA76T001-305, CA76T010-305, CA76T000-331, CA76T001-331, CA76T010-331. Threaded port connection; NBR diaphragm; 24V DC, 220V AC (50/60Hz) voltages for you to choose; other voltages can be customized.

Right-angle electromagnetic pulse valve, the angle between its inlet and outlet is 90°. This type of pulse valve is mainly connected in different ways, which is suitable for the installation and connection of the air bag and the spray pipe of the dust collector. , The filter bag is sprayed row by row (room) to clean the dust to keep the strain of the dust collector within the set range to ensure the processing capacity and dust collection efficiency of the dust collector

Description:

This series of pulse jet valves includes models with threaded connections from 3/4'' to 3''. These valves are particular used for reverse pulse-jet filter cleaning of filter bags, cartridges, envelope filters, ceramic filters and sintered metal fibre filters.

They have an inlet port at 90° to the outlet port.

The pulse jet valves differ in types with an integrated pilot valve or with external pneumatic control.

The special design ensures extremely fast opening, high flow and easy installation.

Optionally, we also offer versions with ATEX certified pilot valves.

A well thought-out structure and a fast delivery time for spare parts such as diaphragms, springs and coils enable simple maintenances.

Technical data of Right Angle Pulse Jet Valves:

Dimension of CA76T Goyen Type Pulse Jet Valve:

Video of CA76T Goyen Type Pulse Jet Valve:

Detail images of Goyen Type Pulse Jet Valves:

More Goyen Type Pulse Valve For You to Choose:

       Threaded Type                   Immersion Type                Dresser Nut Type             Flanged Type

          RCA Series                          Solenoid Coil                Armature Assembly            Pulse Controller
