| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE |
| Model Number: | DMF-ZM-25 |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiation |
| Packaging Details: | inner boxes,cartons,pallets |
| Delivery Time: | 7 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100000 pcs per month |
| Type: | Diaphragm Valve With Dresser Nut | Power: | Solenoid |
|---|---|---|---|
| Media: | Air | Port Size: | 1''Inch |
| Structure: | Diaphragm | Body Material: | Aluminum Alloy |
| Diaphragm Material: | NBR(Common), FKM(Available) | Number Of Diaphragm: | 1 |
| Pressure: | 0.1 To 0.8MPa | Temperature: | -25 To +80℃ |
| Highlight: | DMF-ZM-25 Pulse Jet Valve,Diaphragm Pulse Jet Valve,SBFEC Type DMF-ZM-25 |
||

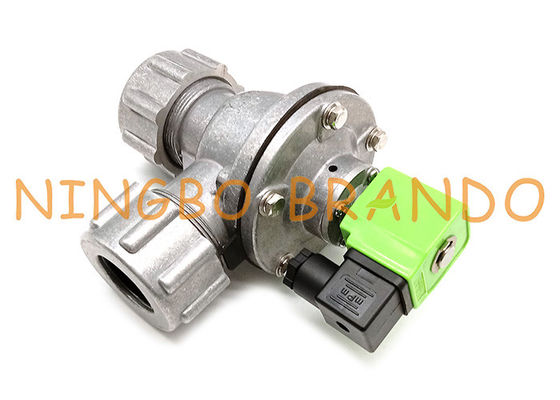

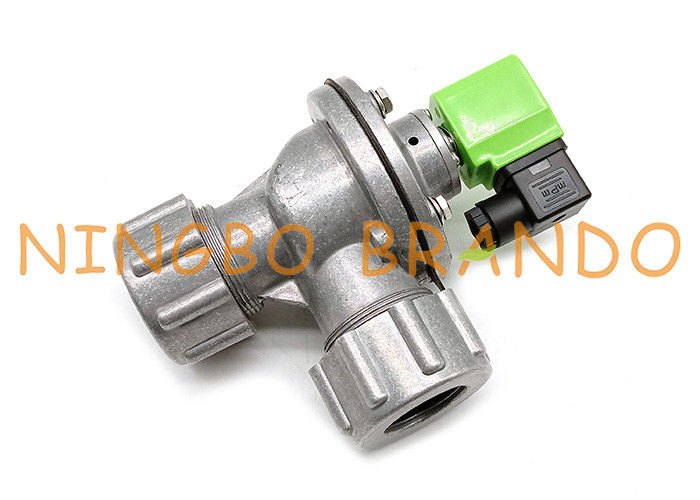

BFEC DMF-ZM-25 Dresser Nut Type 1'' Inch Diaphragm Pulse Jet Valve
The pulse valve cannot be closed in time and the blown air volume will increase the consumption of compressed gas and waste energy. It has no effect on the dust removal of the filter bag. For a pulse valve with good performance and quality, its blowing air volume is also restricted by many factors in the cleaning system: from the input end of the pulse valve, the volume and pressure of the gas distribution box, and the supply of the gas distribution box The inner diameter of the air pipe and the air supply capacity of the air source directly affect the blowing performance and blowing air volume of the same pulse valve: on the load end of the electromagnetic pulse valve, that is, the filter bag it blows, the temperature of the dusty gas that it filters, Humidity, dust particle concentration, specific gravity and viscosity, filtration speed, equipment resistance will all put forward different requirements for blowing performance and air volume. The number and structure of nozzles (nozzles), filter bag material, caliber, length and quantity, and dust removal. Various factors such as form (online, offline), dust removal control (timing, constant pressure difference), etc., all affect and restrict the injection performance and dust removal effect of the pulse valve to varying degrees.
Technical Data of SBFEC Type DMF-ZM Series Pulse Jet Valve:
|
Model
|
DMF-ZM-20
|
DMF-ZM-25
|
DMF-ZM-40S
|
|
|
Nominal Size
|
20
|
25
|
40
|
|
|
Port size
|
mm
|
20
|
25
|
40
|
|
in
|
3/4
|
1
|
1 1/2
|
|
|
Blowing Area (m2)
|
3.5~6
|
8~10
|
12~16
|
|
|
Number of Diaphragms
|
1
|
1
|
2
|
|
|
Flow
|
Kv
|
17.55
|
26.16
|
45.82
|
|
Cv
|
20.48
|
50.53
|
53.47
|
|
|
Pressure (Psi)
|
0.1Mpa~0.8Mpa
|
|||
|
Temperature (℃)
|
-25℃ to +80℃
|
|||
|
Voltage
|
AC220V, AC110V, AC24V, DC24V
|
|||
Main Dimension:
BFEC DMF Series Pulse Jet Valve For Dust Collector System:
|
Thread Valve
|
3/4''
|
1''
|
1.5''
|
2''
|
2.5''
|
3''
|
4''
|
|
DMF-Z-20
|
DMF-Z-25
|
DMF-Z-40S
|
DMF-Z-50S
|
DMF-Z-62S
|
DMF-Z-76S
|
DMF-Z-102S
|
|
|
Quick Mount Valve
|
3/4''
|
Inlet φ27
|
1''
|
1.5''
|
|||
|
DMF-ZM-20
|
DMF-ZL-B
|
DMF-ZM-25
|
DMF-ZM-40S
|
||||
|
Flange Valve
|
1''
|
1.5''
|
|||||
|
DMF-ZF-25
|
DMF-ZF-40S
|
||||||
|
Embedded Valve
|
1''
|
1.5''
|
Outlet φ62mm
|
Outlet φ75
|
Outlet φ89
|
Outlet φ114
|
Outlet φ102
|
|
DMF-Y-25
|
DMF-Y-40S
|
DMF-Y-50S
|
DMF-Y-62S
|
DMF-Y-76S
|
DMF-Y-102S
|
DMF-Y-102SA
|
|
FEATURES:
1. Diaphragm and solenoid valves in a variety of sizes and connections
2. Pilot valve, remote solenoid enclosures, fittings and other accessories
3. Programmable sequencing and differential pressure controllers
